065-4208
Part Number: 065-4208
Product Information
Extended Description

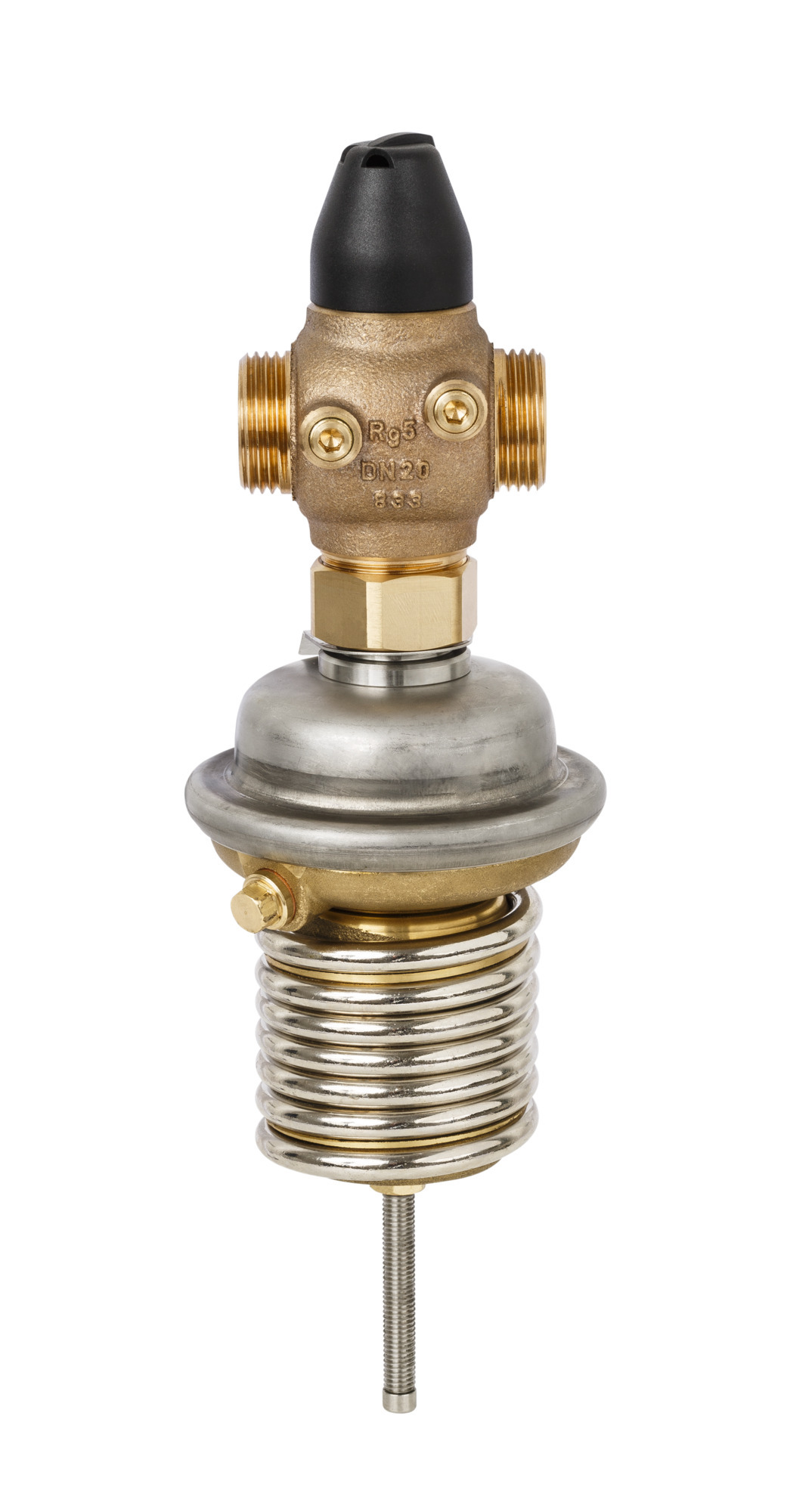

065-4208 Danfoss: V74D52 PN25 20/6,3 1,0-5,5 thr flo/ret
Gross weight
3.348 Kilogram
Net weight
3.348 Kilogram
Volume
9.24 Liter
EAN
5702421805718
Actuator size [cm²]
31 cm²
Application
District Heating
Connection types
External Thread
Contain batteries
No
Description
V74D52 PN25 20/6,3 1,0-5,5 thr flo/ret
Diameter [mm]
20 mm
Differential pressure range [bar] [Max]
12 bar
Differential pressure setting [bar] [Max]
5.5 bar
Differential pressure setting [bar] [Min]
1 bar
Flow control
No
Flow limitation
No
Flow rate [mÂł/h]
0 mÂł/h
Flow rate [mÂł/h] [Max]
0 mÂł/h
Function
Press. reduction controller
Function VSP - P
Yes
Function VSP - Q
No
Function VSP - T
No
Kvs values [mÂł/h]
6.3 mÂł/h
Leakage rate [% Kvs]
0.02
Media temperature [°C] [Max]
130 °C
Mounting version
Free
Number of ports
2
Permissible media
Termo oil
Pressure class
PN 25
Pressure controller
Pressure reduction controller
Pressure nominal [bar]
25 bar
Product group
Pressure flow controllers
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Setting Type
Adjustable
Type
V74D52
Valve body material
Red bronze CuSn5ZnPb (Rg5)
Valve size
DN 20
