065-4403
Part Number: 065-4403
Product Information
Extended Description

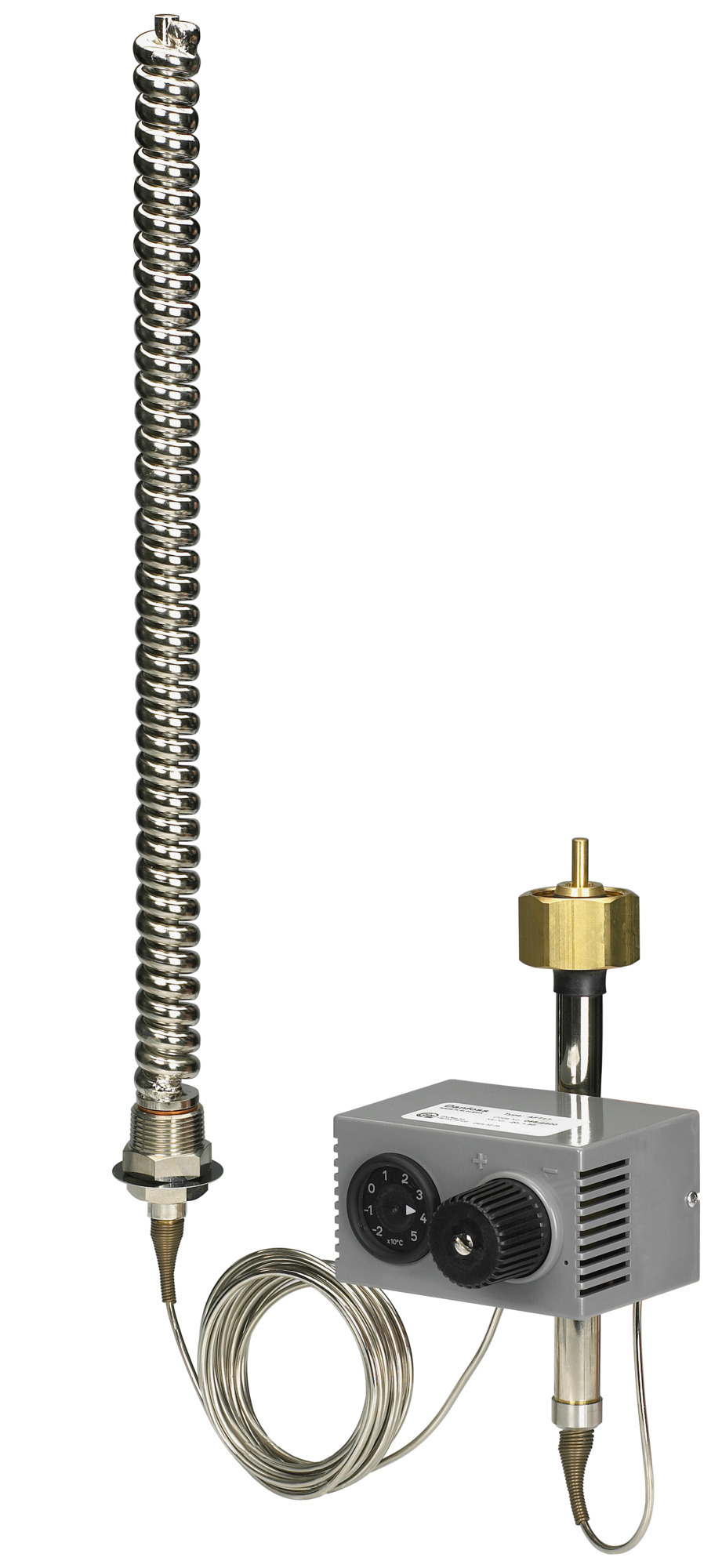

065-4403 Danfoss: AFT17 PN40 60-130/5m Spiral sensor
Gross weight
5.127 Kilogram
Net weight
5.127 Kilogram
Volume
36.39 Liter
EAN
5702421808061
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
0 °C
Approval standard
DIN EN 14597:2005-12 TR(TW)76107
Capillary tube length [m]
5 m
Contain batteries
No
Description
AFT17 PN40 60-130/5m Spiral sensor
Function
Temp. controller
Gain Ks
0.8
Impulse tube material
Copper mat. No 2.0090
Media temperature at sensor [°C] [Max]
230 °C
Mounting version
Free
Product group
Actuators - Temperature
Sensor connection
R1 conic male thread acc. to DIN 2999
Temperature sensor diameter [mm]
30 mm
Temperature sensor length [mm]
500 mm
Temperature sensor material
Copper mat. No 2.0090
Temperature setting range [°C] [Max]
130 °C
Temperature setting range [°C] [Min]
60 °C
Time constant [sec]
20 "
Transport temperature [°C] [Max]
50 °C
Transport temperature [°C] [Min]
-20 °C
Type
AFT 17
003G1394
Stem extension ZF 4, AF range, DN 15-125
003G1440
Combination pieces KF2 2 x G 1 1/4"
