065F2034
Part Number: 065F2034
Product Information
Extended Description

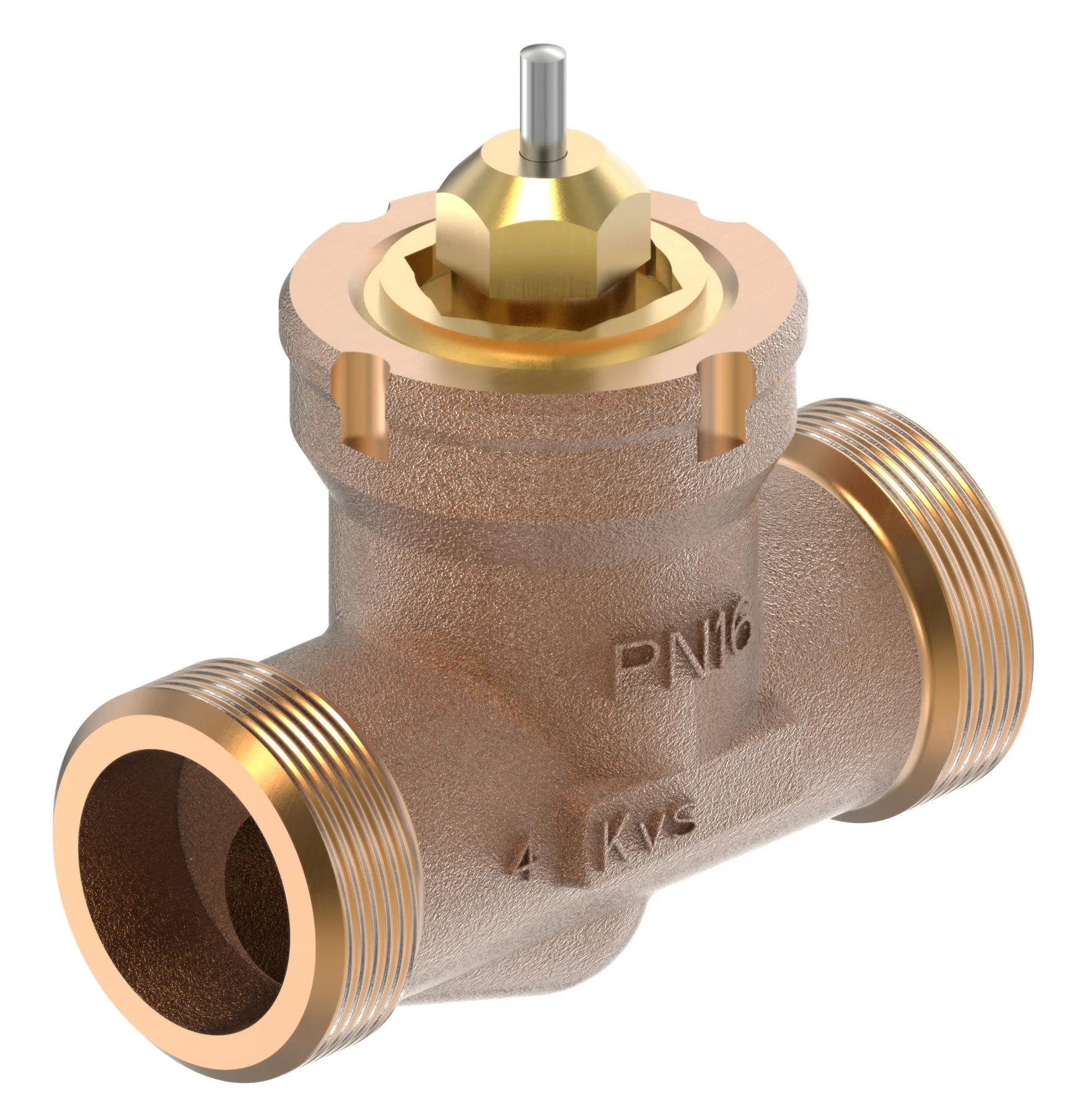

065F2034 Danfoss: VMA PN16 15/1,6 2-way ext. thread
Gross weight
0.264 Kilogram
Net weight
0.258 Kilogram
Volume
0.212 Liter
EAN
5702420018232
Application
Heating and cooling
Cavitation factor
0.5
China RoHS compliance
Out of scope
Connection size
G 3/4 A
Connection types
External Thread
Contain batteries
No
Control ratio
1:50
Description
VMA PN16 15/1,6 2-way ext. thread
Diameter [mm]
15 mm
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Flow characteristic
Approx. linear
Kvs values [mÂł/h]
1.6 mÂł/h
Leakage through port max. [% Kvs]
0.05
Media pH [Max]
10
Media pH [Min]
7
Media temperature [°C] [Max]
130 °C
Media temperature [°C] [Min]
2 °C
Medium alternative
Glycolic water up to 30%
Mounting version
Free
Number of ports
2
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure class
PN 16
Pressure nominal [bar]
16 bar
Product group
Motorized control valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Spindle material
Dezincing free brass
Spindle position
Normally open
Stroke [mm]
3 mm
Stuffing box sealing material
Dezincing free brass
Type
VMA
UK RoHS compliance
Out of scope
Valve body material
Dezincing free brass
Valve cone material
EPDM
Valve seat material
Stainless steel 18/8, mat. No. 1.4305
Valve size
DN 15
065F0006
Valve st.boxRAV,VMT/A/V,KOVM,AVD(S)A I-p
003H6902
Thread tailpieces, PN 25, DN 15, R 1/2; G 3/4, External Thread
003H6908
Weld-on tailpieces, PN 25, DN 15, G 3/4
065F0006
Valve st.boxRAV,VMT/A/V,KOVM,AVD(S)A I-p
