065N8120
Part Number: 065N8120
Product Information
Extended Description

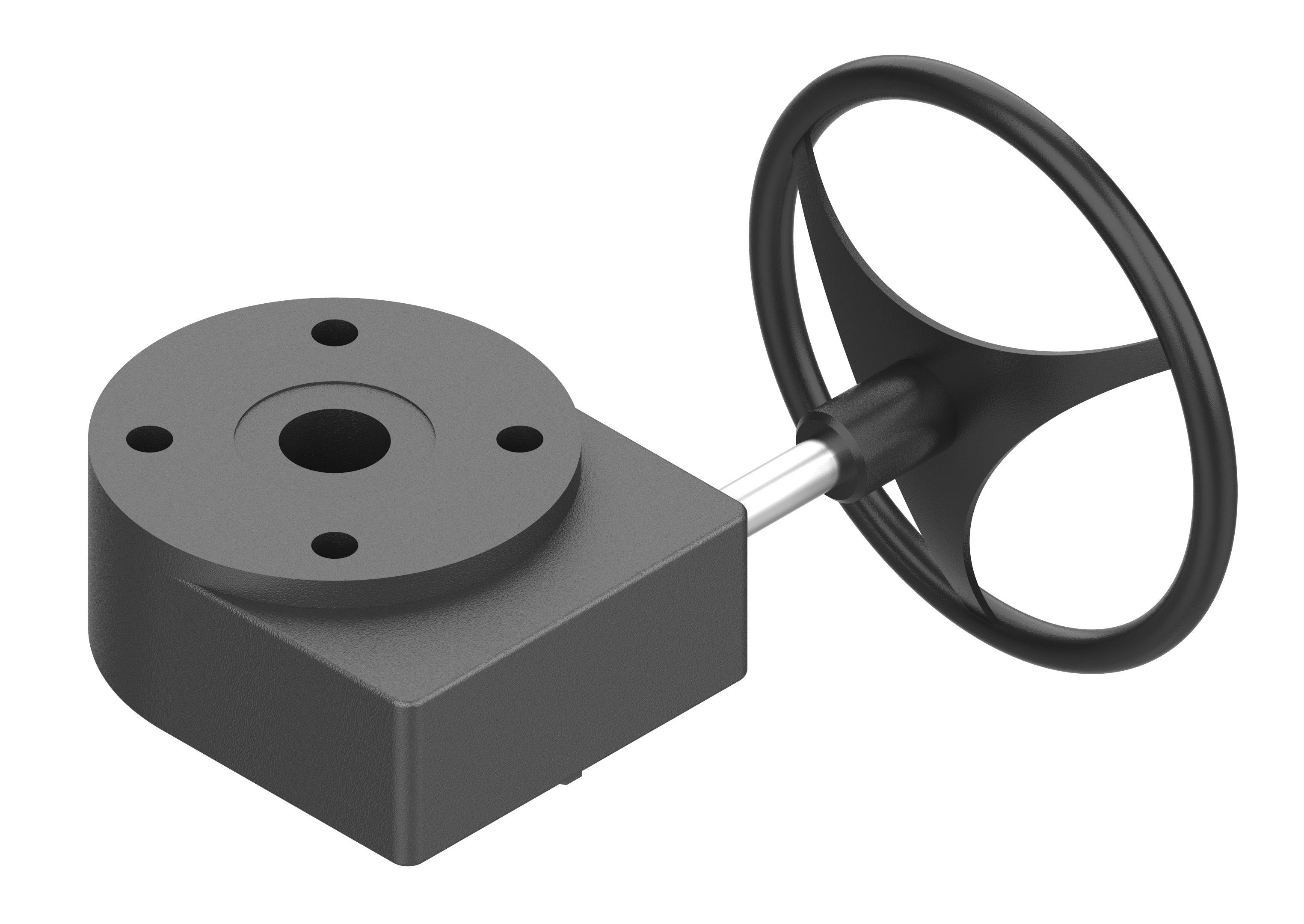

065N8120 Danfoss: Worm gear DN 250 red/ DN 200 full bore
Gross weight
16.398 Kilogram
Net weight
15.2 Kilogram
Volume
59.689 Liter
EAN
5702421652114
Ambient temperature [=C2=B0C] [max]
110 =C2=B0C
Ambient temperature [=C2=B0C] [min]
-25 =C2=B0C
Application
Heating and cooling
Approval standard
2,EN12266-1,PED 97/23/EEC
Body material
GG25/ASTM A48
Connection types
Gear Flange
Contain batteries
No
Description
Worm gear DN 250 red/ DN 200 full bore
Grade of enclosure
IP68
Label product
Yes
Mounting orientation
All
Operating torque [Nm]
2000 N-m
Operation type
Handwheel
Position indicator
Yes
Product group
Ball valves accessories
REACH Candidate List substances
No
Rotation angle [=C2=B0]
90 =C2=B0
Storage temperature [=C2=B0C] [Max]
110 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-25 =C2=B0C
Type
Worm gear
