065Z0085

Part Number: 065Z0085
065Z0085
Manufacturer
Danfoss
Part number
065Z0085
Category

Product Information

Extended Description

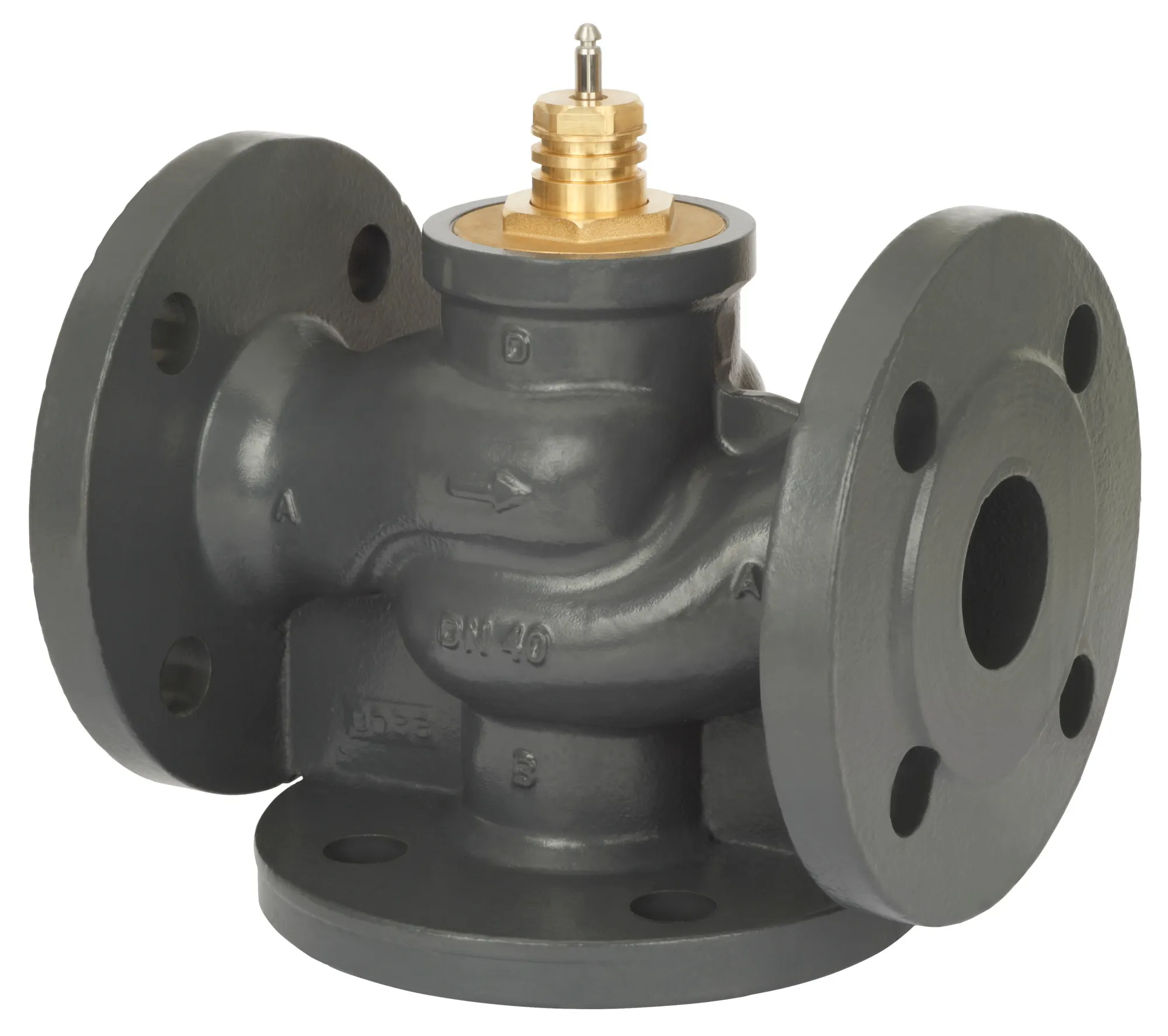

065Z0085 Danfoss: VF3 PN16 DN50/40 dp1,5 softB
Gross weight
12.247 Kilogram
Net weight
12.247 Kilogram
Volume
11.544 Liter
EAN
5702425089251
Application
Heating and cooling
Application alternative VSP
District heating
Cavitation factor
0.4
China RoHS compliance
Out of scope
Closing differential pressure (diverting) [bar] [Max]
1 bar
Closing differential pressure (mixing) [bar] [Max]
4 bar
Connection types
Flange
Contain batteries
No
Control ratio
100:1
Description
VF3 PN16 DN50/40 dp1,5 softB
Diameter [mm]
50 mm
EU RoHS compliance
Out of scope
Flow characteristic
Equal percentage
Function
Mixing valve
Function 2
Pressure relief
Kvs values [m=C2=B3/h]
40 m=C2=B3/h
Leakage through port max. [% Kvs]
bubble tight design
Media pH [Max]
10
Media pH [Min]
7
Media temperature [=C2=B0C] [Max]
130 =C2=B0C
Media temperature [=C2=B0C] [Min]
-10 =C2=B0C
Medium alternative
Glycolic water up to 50%
Mounting version
Flow
Number of ports
3
Permissible media
District heating/cooling circulation water
PN alternative VSP
10
Pressure nominal [bar]
16 bar
Product group
Other valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
da6e2396-17ab-438c-a26d-f391887ba325
SCIP dossier product name
VF3 PN16 DN50/40 DP1,5 SOFTB
Stroke [mm]
15 mm
Stuffing box sealing material
EPDM
Type
VF 3
UK RoHS compliance
Out of scope
Valve body material
Grey cast iron EN-GJL-250 (GG-25)
Valve cone material
Brass
Valve stem material
Stainless steel
