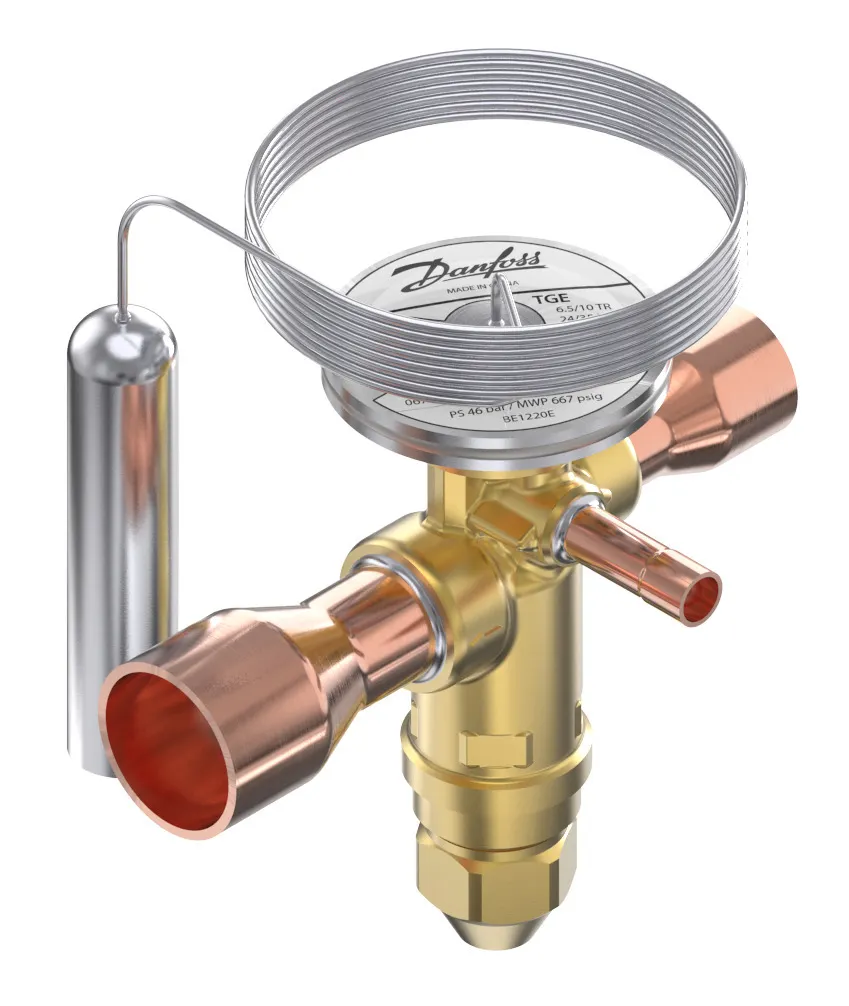

067N9213
Part Number: 067N9213
Product Information
Extended Description
067N9213 Danfoss: Temperature range [=C2=B0C]: -30 - 15, Orifice capacities [kW]: 79.00, Orifice capacities [TR]: 23.00, Pressure equalization: Externally equalized
Gross weight
0.772 Kilogram
Net weight
0.65 Kilogram
Volume
2.589 Liter
EAN
5702428470094
Approval
C UL US LISTED,EAC,LLC CDC TYSK
Balanced port [Yes/No]
Yes
Body material
Brass
Capillary tube length [in]
59 in
Capillary tube length [mm]
1500 mm
China RoHS compliance
Out of scope
Connection material
Copper
Contain batteries
No
Direction
Straightway
Element temperature max. [=C2=B0C]
110 =C2=B0C
Element temperature max. [=C2=B0F]
230 =C2=B0F
Equalization connection type
Solder, ODF
Equalization size [in]
1/4 in
EU RoHS compliance
Out of scope
Flow direction
Bi-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Inlet connection type
Solder, ODF
Inlet size [in]
7/8 in
Max. Working Pressure [bar]
49 bar
Max. Working Pressure [psig]
711 psig
MOP Point [psig]
MAH
Orifice capacities [kW]
79 kW
Orifice capacities [TR]
23 TR
Orifice size
20
Outlet connection type
Solder, ODF
Outlet size [in]
1 1/8 in
Packing format
Multi pack
Parts included
Bulb strap
PED category
Art. 4, par. 3
Pressure equalization
Externally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description
Thermostatic expansion valve
Quantity per packing format
8 pc
Rated cap. cond. Range N [IMP]
tcond=3D100 =C2=B0F,tevap=3D40 =C2=B0F,tliq=3D98 =C2=B0F
Rated cap. cond. Range N [SI]
tcond=3D38 =C2=B0C,tevap=3D4.4 =C2=B0C,tliq=3D37 =C2=B0C
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R410A
SCIP dossier no.
d44ec740-dfe8-4c0a-9644-96406f010504
SCIP dossier product name
TGE
Serviceable
No
Static Superheat (SS) [=C2=B0C]
4 =C2=B0C
Static Superheat (SS) [=C2=B0F]
7.2 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
15 =C2=B0C
Temperature range [=C2=B0C] [min]
-30 =C2=B0C
Temperature range [=C2=B0F] [max]
60 =C2=B0F
Temperature range [=C2=B0F] [min]
-22 =C2=B0F
Type
TGE
UK RoHS compliance
Out of scope
UL approved refrigerants
R410A
UL evaluated
Yes
