068N5601

Part Number: 068N5601
068N5601
Manufacturer
Danfoss
Part number
068N5601
Category

Product Information

Extended Description

068N5601 Danfoss: Temperature range [=C2=B0C]: -25 - 20, Orifice capacities [kW]: 0.46, Orifice capacities [TR]: 0.13, Pressure equalization: Internally equalized
Gross weight
0.168 Kilogram
Net weight
0.145 Kilogram
Volume
0.474 Liter
EAN
5702424222345
Adjustable
No
Approval
C UL US LISTED,EAC,LLC CDC TYSK
Balanced port [Yes/No]
No
Body material
Brass
Capillary tube length [in]
30 in
Capillary tube length [mm]
750 mm
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
Direction
Angleway
Element temperature max. [=C2=B0C]
100 =C2=B0C
Element temperature max. [=C2=B0F]
210 =C2=B0F
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Factory setting [bar]
2.17 bar
Factory setting [psig]
31.5 psig
Filter
Integrated
Flow direction
Single-flow
Flow direction indicator
Stamped 1-way arrow
Inlet connection type
Solder, ODF
Inlet size [in]
1/4 in
Max. Working Pressure [bar]
34 bar
Max. Working Pressure [psig]
500 psig
Orifice capacities [kW]
0.46 kW
Orifice capacities [TR]
0.13 TR
Orifice size
0
Outlet connection type
Solder, ODF
Outlet size [in]
3/8 in
Packing format
Industrial pack
Parts included
Bulb strap
Pressure equalization
Internally equalized
Product accessories
TXV accessories
Product group
Expansion valves

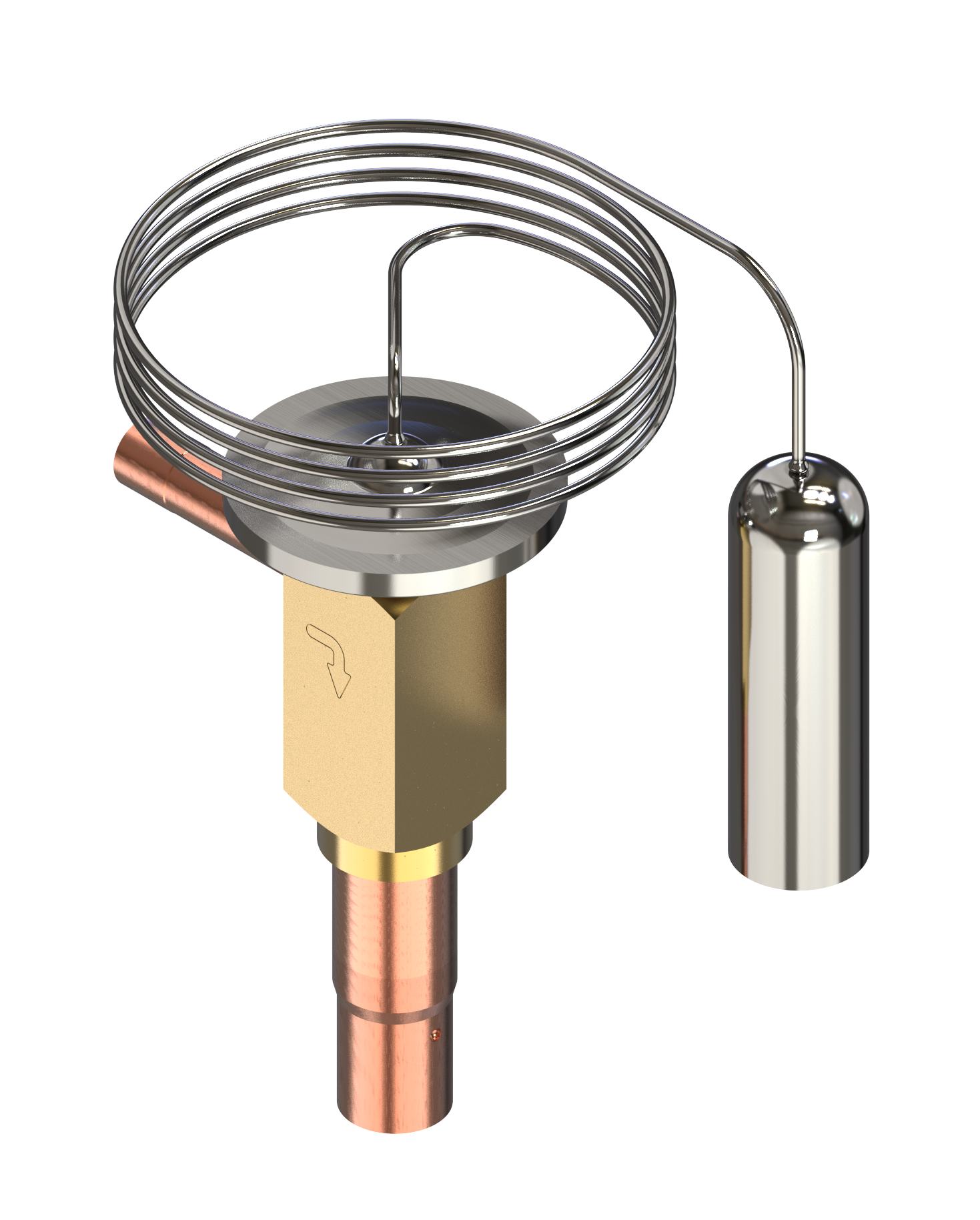

Product Name Description
Thermostatic expansion valve
Quantity per packing format
32 pc
Rated cap. cond. Range N [IMP]
tcond=3D90 =C2=B0F,tevap=3D41 =C2=B0F,tliq=3D82 =C2=B0F
Rated cap. cond. Range N [SI]
tcond=3D32 =C2=B0C,tevap=3D5 =C2=B0C,tliq=3D28 =C2=B0C
Refrigerants
R134a,R513A
Serviceable
No
Static Superheat (SS) [=C2=B0C]
7 =C2=B0C
Static Superheat (SS) [=C2=B0F]
12.6 =C2=B0F
Temperature range [=C2=B0C] [max]
20 =C2=B0C
Temperature range [=C2=B0C] [min]
-25 =C2=B0C
Temperature range [=C2=B0F] [max]
70 =C2=B0F
Temperature range [=C2=B0F] [min]
-15 =C2=B0F
Type
TD 1
UK RoHS compliance
Out of scope
UL approval file name
SA7200
UL evaluated
Yes
Thermostatic expansion valve Type TD 1 / TDE 1 Thermostatic Expansion Valves, TD1 / TDE1 Danfoss MD 033F4006 Danfoss MD 033F4011.AD Danfoss MD 033F4017.AD Danfoss MD 067R1068.AF TD1 AW TD1 AW fixed 1/4x3/8 TD1 AW fixed 1/4x3/8 TD 1 A I FIX1/4 in3/8 in TD1 AW fixed 1/4x3/8 TD1 AW fixed 1/4x3/8 TD 1 A I FIX6.00 mm10.00 mm
