068N7665

Part Number: 068N7665
068N7665
Manufacturer
Danfoss
Part number
068N7665
Category

Product Information

Extended Description

068N7665 Danfoss: Temperature range [=C2=B0C]: -40 - 10, Orifice capacities [kW]: 3.36, Orifice capacities [TR]: 0.96, Pressure equalization: Internally equalized
Gross weight
0.227 Kilogram
Net weight
0.204 Kilogram
Volume
0.489 Liter
EAN
5702424595814
Adjustable
Yes
Approval
C UL US LISTED
Balanced port [Yes/No]
No
Body material
Brass
Capillary tube length [in]
30 in
Capillary tube length [mm]
750 mm
China RoHS compliance
Yes exceed limitations
Connection material
Copper
Contain batteries
No
Direction
Straightway
Element temperature max. [=C2=B0C]
100 =C2=B0C
Element temperature max. [=C2=B0F]
210 =C2=B0F
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Factory setting [bar]
5.3 bar
Factory setting [psig]
76.9 psig
Filter
Integrated
Flow direction
Single-flow
Flow direction indicator
Stamped 1-way arrow
Inlet connection type
Solder, ODF
Inlet size [in]
3/8 in
Max. Working Pressure [bar]
34 bar
Max. Working Pressure [psig]
500 psig
Orifice capacities [kW]
3.36 kW
Orifice capacities [TR]
0.96 TR
Orifice size
4
Outlet connection type
Solder, ODF
Outlet size [in]
1/2 in
Packing format
Multi pack
Parts included
Bulb strap
Pressure equalization
Internally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description

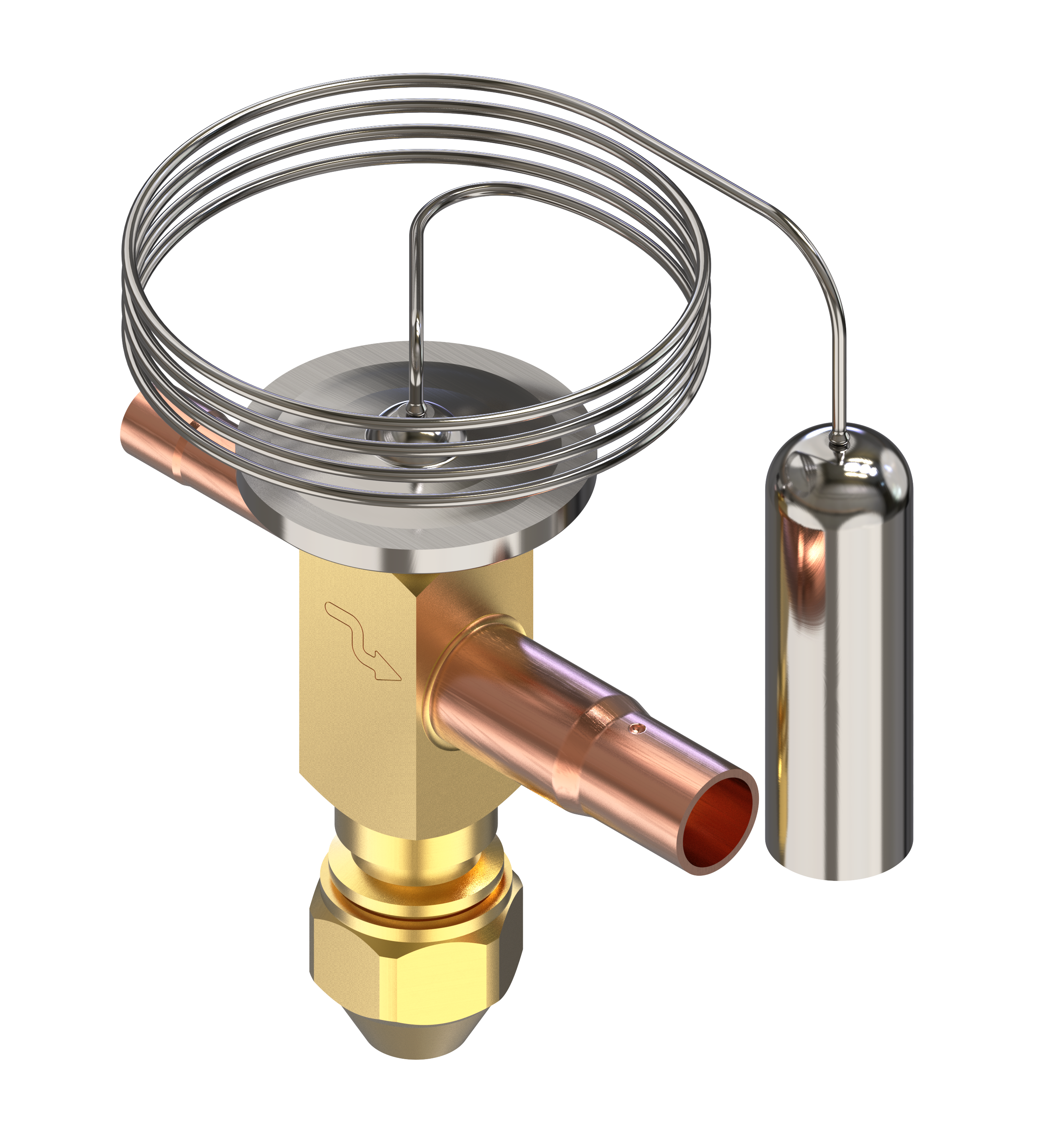

Thermostatic expansion valve
Quantity per packing format
20 pc
Rated cap. cond. Range N [IMP]
tcond=3D90 =C2=B0F,tevap=3D41 =C2=B0F,tliq=3D82 =C2=B0F
Rated cap. cond. Range N [SI]
tcond=3D32 =C2=B0C,tevap=3D5 =C2=B0C,tliq=3D28 =C2=B0C
Refrigerants
R404A
Serviceable
No
Static Superheat (SS) [=C2=B0C]
3 =C2=B0C
Static Superheat (SS) [=C2=B0F]
5.4 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
10 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
50 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
TD 1
UK RoHS compliance
Out of scope
UL approval file name
SA7200
UL evaluated
Yes
TD1 cut sheet Thermostatic expansion valve Type TD 1 / TDE 1 Thermostatic Expansion Valves, TD1 / TDE1 Danfoss MD 033F4006 Danfoss MD 033F4011.AD Danfoss MD 033F4017.AD Danfoss MD 067R1068.AF Thermostatic expansion valve, TD1 v2 Straight way, WEB068N7604 TD1 SW ADJ 3/8x1/2 TD1 SW ADJ 3/8x1/2 TD 1 S I ADJ3/8 in1/2 in
