068U2026
Part Number: 068U2026
Product Information
Extended Description
068U2026 Danfoss: Temperature range [=C2=B0C]: -40 - 10, Orifice capacities [kW]: 12.00, Orifice capacities [TR]: 3.50, Pressure equalization: Externally equalized
Gross weight
0.164 Kilogram
Net weight
0.148 Kilogram
Volume
0.402 Liter
EAN
5702422138631
Approval
EAC,LLC CDC TYSK,UL
Body material
Stainless steel
Capillary tube length [in]
31 in
Capillary tube length [mm]
800 mm
China RoHS compliance
Out of scope
Connection material
Bi-metal: Steel/copper
Contain batteries
No
Direction
Angleway
Equalization connection type
Solder, ODF
Equalization size [in]
1/4 in
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Flow direction
Single-flow
Flow direction indicator
Laser engraved 1-way arrow
Fluid Group
2
Inlet connection type
Solder, ODF
Inlet size [in]
3/8 in
Max. Working Pressure [bar]
34 bar
Max. Working Pressure [psig]
500 psig
Orifice capacities [kW]
12 kW
Orifice capacities [TR]
3.5 TR
Orifice size
9
Outlet connection type
Solder, ODF
Outlet size [in]
1/2 in
Packing format
Multi pack
Parts included
Bulb strap
PED category
Art. 4, par. 3
Pressure equalization
Externally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description

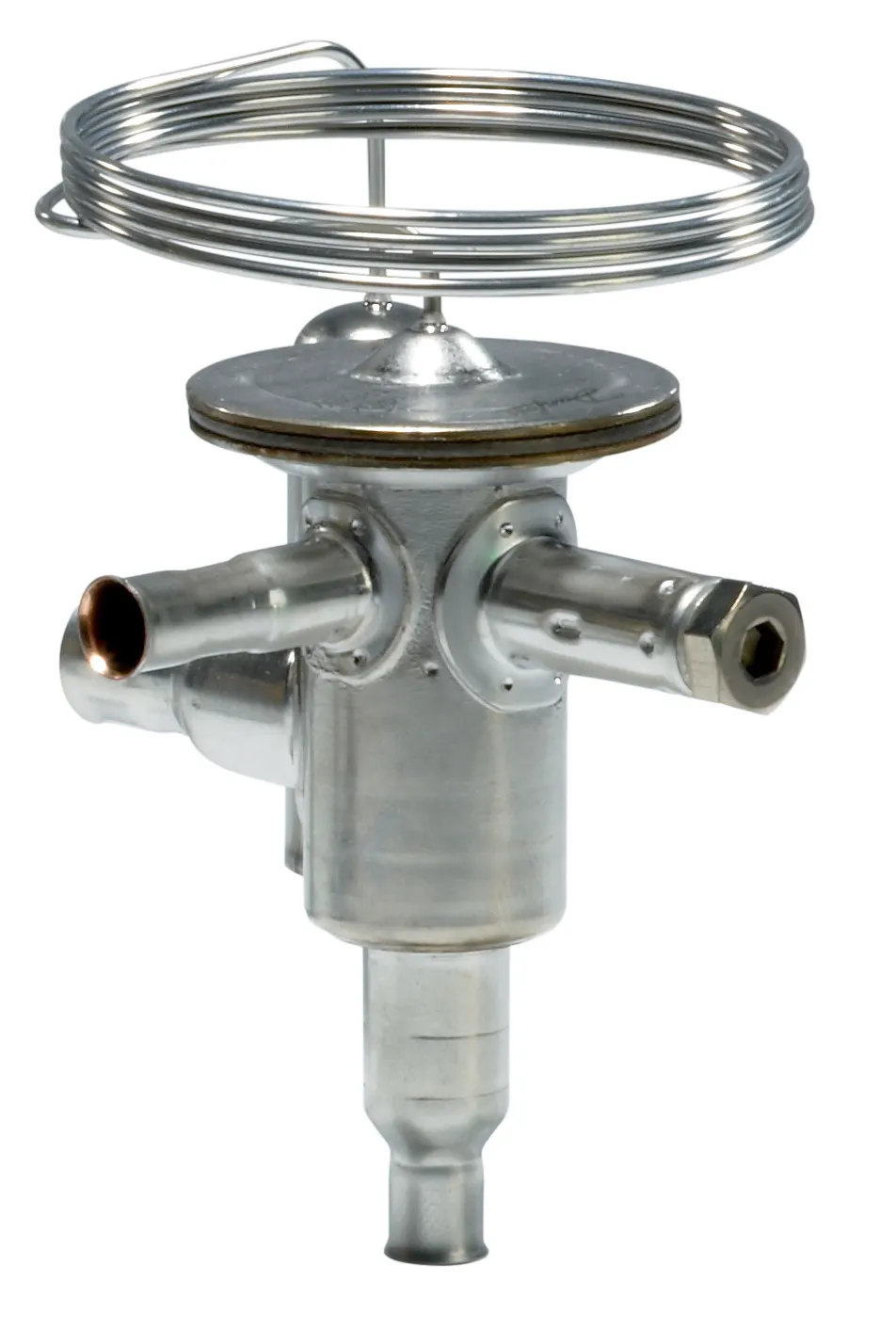

Thermostatic expansion valve
Quantity per packing format
24 pc
Rated cap. cond. Range N [IMP]
OS=3D7.2 =C2=BAF,tcond=3D100 =C2=BAF,tevap=3D40 =C2=BAF,tliq=3D98 =C2=BAF
Rated cap. cond. Range N [SI]
OS=3D4K,tcond=3D38 =C2=BAC,tevap=3D4.4 =C2=BAC,tliq=3D37 =C2=BAC
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a/R513A
SCIP dossier no.
07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name
TU/TC - Thermostatic expansion valve
Serviceable
No
Static Superheat (SS) [=C2=B0C]
4 =C2=B0C
Static Superheat (SS) [=C2=B0F]
7.2 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
10 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
50 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
TUBE
UA address
UK RoHS compliance
Out of scope
UL approved refrigerants
R134a,R513A
UL evaluated
Yes
Overview Brochure Thermostatic Expansion Valves
Thermostatic expansion valve, type TU and TC
TU and TC
Infographic - TU thermostatic expansion valve
Danfoss EU 068U9903.01
TU/TC valves
Danfoss MD 068U9615.13
Danfoss MD 068U9616.03

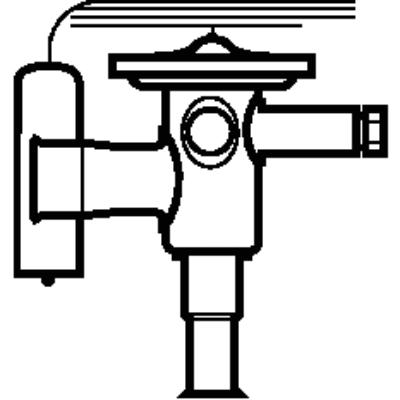

Thermostatic expansion valve, Type TUBE angleway
TUBE angleway version
