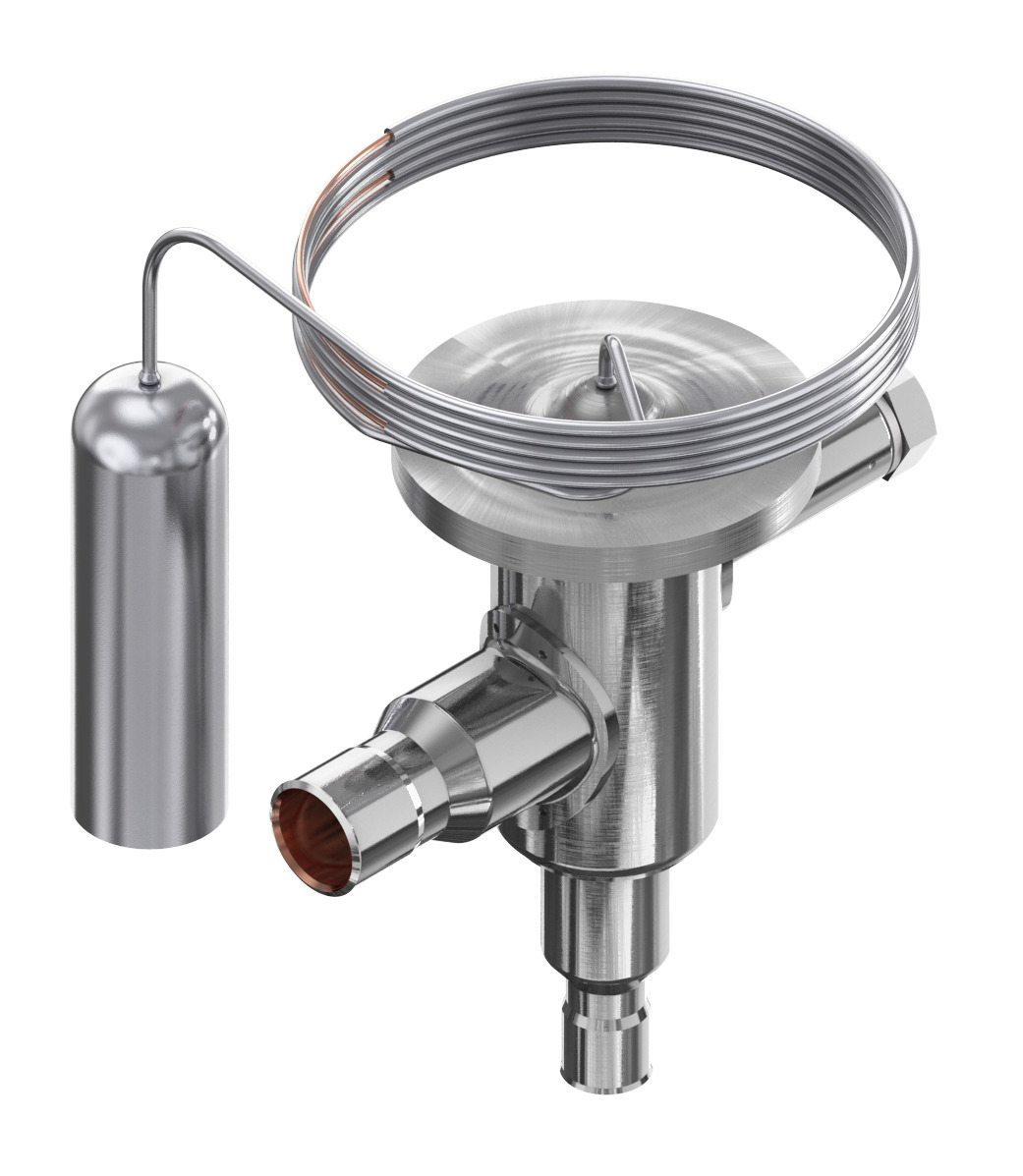

068U2836
Part Number: 068U2836
Product Information
Extended Description
068U2836 Danfoss: Temperature range [=C2=B0C]: -40 - 10, Orifice capacities [kW]: 0.70, Orifice capacities [TR]: 0.19, Pressure equalization: Internally equalized
Gross weight
0.164 Kilogram
Net weight
0.142 Kilogram
Volume
0.402 Liter
EAN
5702428091497
Approval
EAC,LLC CDC TYSK,UL
Bleed [%]
15 %
Body material
Stainless steel
Capillary tube length [in]
31 in
Capillary tube length [mm]
800 mm
China RoHS compliance
Out of scope
Connection material
Bi-metal: Steel/copper
Contain batteries
No
Direction
Angleway
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Flow direction
Single-flow
Flow direction indicator
Laser engraved 1-way arrow
Fluid Group
2
Inlet connection type
Solder, ODF
Inlet size [in]
1/4 in
Max. Working Pressure [bar]
34 bar
Max. Working Pressure [psig]
500 psig
Orifice capacities [kW]
0.7 kW
Orifice capacities [TR]
0.19 TR
Orifice size
1
Outlet connection type
Solder, ODF
Outlet size [in]
3/8 in
Packing format
Multi pack
Parts included
Bulb strap
PED category
Art. 4, par. 3
Pressure equalization
Internally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description
Thermostatic expansion valve
Quantity per packing format
24 pc
Rated cap. cond. Range N [IMP]
OS=3D7.2 =C2=BAF,tcond=3D100 =C2=BAF,tevap=3D40 =C2=BAF,tliq=3D98 =C2=BAF
Rated cap. cond. Range N [SI]
OS=3D4K,tcond=3D38 =C2=BAC,tevap=3D4.4 =C2=BAC,tliq=3D37 =C2=BAC
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R134a/R513A
SCIP dossier no.
07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name
TU/TC - Thermostatic expansion valve
Serviceable
No
Static Superheat (SS) [=C2=B0C]
4 =C2=B0C
Static Superheat (SS) [=C2=B0F]
7.2 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
10 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
50 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
TUB
UA address
UK RoHS compliance
Out of scope
UL approved refrigerants
R134a,R513A
UL evaluated
Yes
