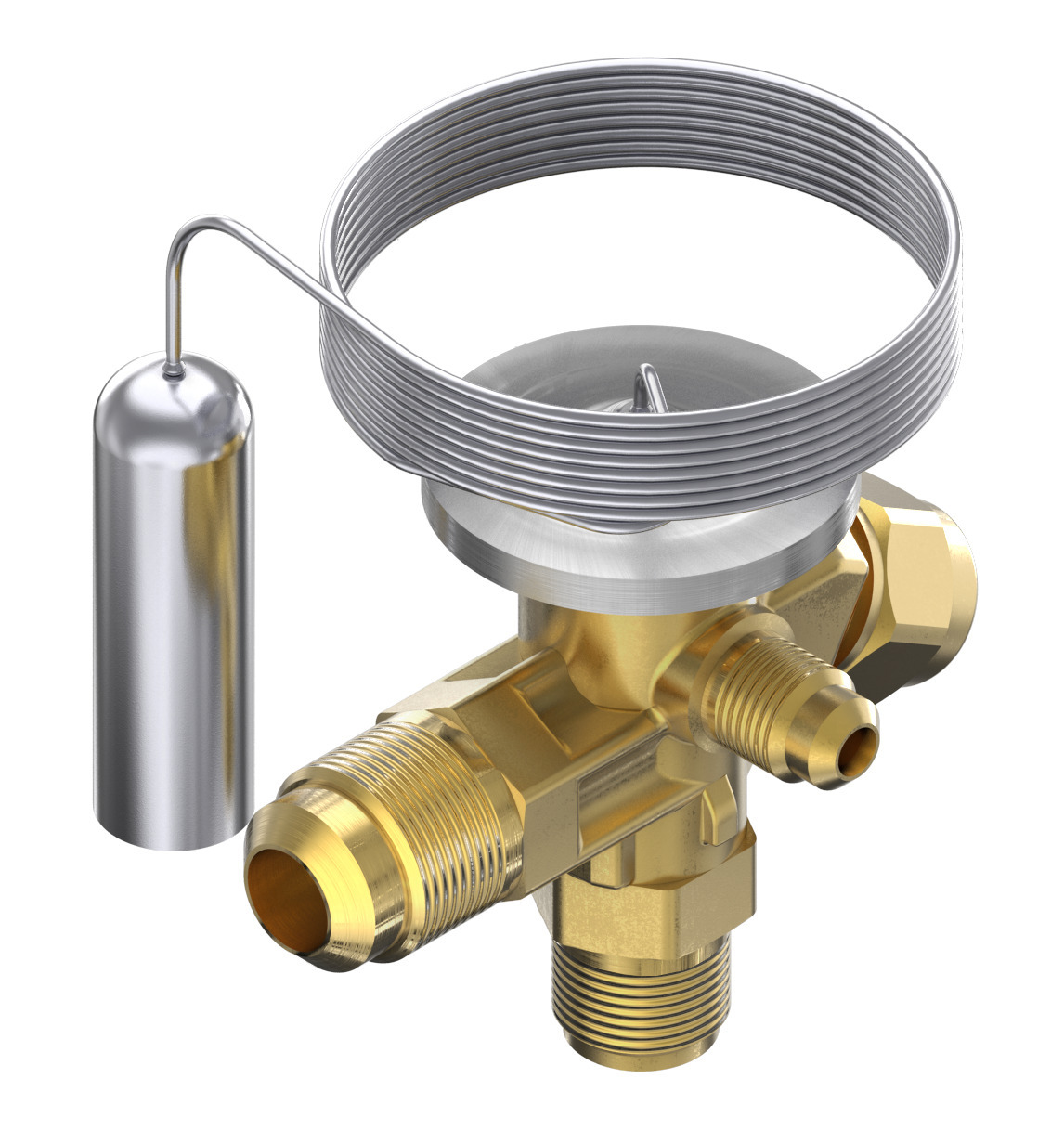

068Z3671
Part Number: 068Z3671
Product Information
Extended Description
068Z3671 Danfoss: Temperature range [=C2=B0C]: -40 - -15, MOP Point [=C2=B0C]: -10, Pressure equalization: Externally equalized
Gross weight
0.306 Kilogram
Net weight
0.291 Kilogram
Volume
0.5 Liter
EAN
5702428537568
Approval
EAC,LLC CDC TYSK
Body material
Brass
Capillary tube length [in]
59 in
Capillary tube length [mm]
1500 mm
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Contain batteries
No
Direction
Angleway
Equalization connection type
Flare
Equalization size [in]
1/4 in
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Flow direction
Single-flow
Flow direction indicator
Embossed 1-way arrow
Fluid Group
2
Inlet connection type
Flare
Inlet size [in]
3/8 in
Max. Working Pressure [bar]
34 bar
Max. Working Pressure [psig]
500 psig
MOP Point [psig]
MOP 40
MOP Point [=C2=B0C]
-10 =C2=B0C
MOP Point [=C2=B0F]
14 =C2=B0F
Outlet connection type
Flare
Outlet size [in]
1/2 in
Packing format
Industrial pack
Parts included
Bulb strap
Parts Program name
T2/TE2
PED category
Art. 4, par. 3
Pressure equalization
Externally equalized
Product accessories
TXV accessories
Product group
Expansion valves
Product Name Description
Thermostatic expansion valve
Quantity per packing format
45 pc
Rated cap. cond. Range N [IMP]
OS=3D10.8 =C2=BAF,tcond=3D100 =C2=BAF,tevap=3D40 =C2=BAF,tliq=3D98 =C2=BAF
Rated cap. cond. Range N [SI]
OS=3D6K,tcond=3D38 =C2=BAC,tevap=3D4.4 =C2=BAC,tliq=3D37 =C2=BAC
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Refrigerants
R448A,R449A
SCIP dossier no.
c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product name
T2 /TE2 - Thermostatic Expansion Valve
Serviceable
TXV spare parts
Static Superheat (SS) [=C2=B0C]
4 =C2=B0C
Static Superheat (SS) [=C2=B0F]
7.2 =C2=B0F
Superheat setting
Adjustable
Temperature range [=C2=B0C] [max]
-15 =C2=B0C
Temperature range [=C2=B0C] [min]
-40 =C2=B0C
Temperature range [=C2=B0F] [max]
5 =C2=B0F
Temperature range [=C2=B0F] [min]
-40 =C2=B0F
Type
TE 2
UK RoHS compliance
Out of scope
068-0003
Spare part, T 2; TE 2, Filter
068-0015
Spare part, T 2; TE 2, Filter
068-0080
Spare part, T 2; TE 2, Filter
068-0081
Spare part, T 2; TE 2, Filter
011L1101
Spare part, TE5-TE55; T 2; PHT; TE 2; PHTQ, Flare nut
011L1107
Spare part, T 2; TE 2, Reducer flare nut
011L1203
Spare part, TE 5, Flare nut
011L1207
Spare part, T 2; TE 2, Reducer flare nut
011L1235
Spare part, T 2; TE 2, Flare nut
068U3509
TXV accessories, OEM bulb strap 3/8 in I/45
068U3511
TXV accessories, OEM bulb strap 5/8 in I/45
011L1135
Spare part, T 2; TE 2, Flare nut
011L1201
Spare part, T 2; TE 5; TE 2, Flare nut
068U3510
TXV accessories, OEM bulb strap 1/2 in I/45
