071N3201
Part Number: 071N3201
Product Information
Extended Description

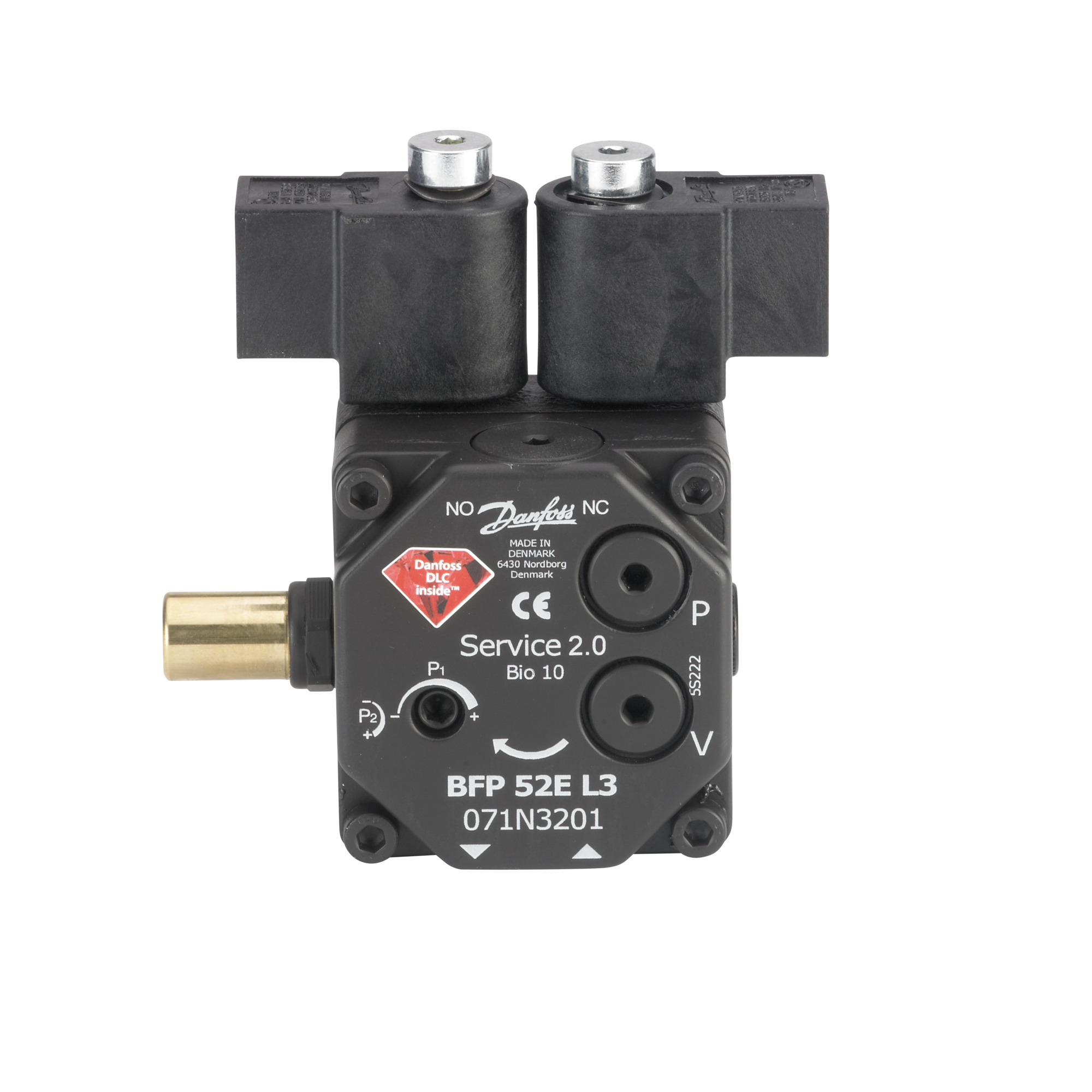

071N3201 Danfoss: BFP 52E L3L, SERVICE
Gross weight
1.326 Kilogram
Net weight
1.258 Kilogram
Volume
1.925 Liter
EAN
5702425156397
ROTATION
L
1 or 2 stage
2
Actuator type
NC+NO
Ambient temperature [°C] [max]
70 °C
Ambient temperature [°C] [min]
-20 °C
Approval
CE,UKCA,Intertek Semko,DIN CERTCO
Biofuel blend
10
Capacity [l/h]
24 L/h
Capacity group
0-24
Capacity range [l/h] [Max]
24 L/h
Capacity range [l/h] [Min]
0 L/h
CE evaluated
Yes
China RoHS compliance
Out of scope
Closing function
Cut-off
Coil consumption [W]
9 W
Coil Current
AC
Coil voltage [V]
220 - 230
Comments
Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump.
Contain batteries
No
Definition point [l/h]
2800 min-1, 10 bar, 4.3 cSt
Description
BFP 52E L3L, SERVICE
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a)-I,6(c)
Factory pressure setting [bar]
10 bar
Factory pressure setting stage 2 [Bar]
13 bar
Filter area [cm²]
11 cm²
Filter grade [µm]
200
Filter type
Cartridge
Flats/key on the shaft
1 flat
Grade of enclosure
IP40
Media temperature [°C] [Max]
70 °C
Media temperature [°C] [Min]
0 °C
NO type
Use with NO coil
Nozzle/pressure outlet
L
Number of stages
2
Oil pump speed [op/min]
3450 op/min
Oil type
Kerosene/Light oil
Packing format
Multi pack
Pipe connection
2 pipes
Power consumption [W]
42 W
Pressure [bar] [Max]
25 bar
Pressure [bar] [Min]
7 bar
Pressure feed line [bar] [Max]
2 bar
Pressure kerosene [bar] [Max]
12 bar
Pressure stage 2 [bar] [Max]
25 bar
Product group
Pumps
Quantity per packing format
10 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
b9ccf2df-a60a-4db7-b88b-d72eb1f67887
SCIP dossier product name
Oil pump BFP - Service
Serie
BFP
Shaft diameter [mm]
8 mm
Speed [rpm] [Max]
3450 rpm
Speed [rpm] [Min]
2400 rpm
Starting torque [Nm] [Max]
0.1 N-m
Storage temperature [°C] [Max]
70 °C
Storage temperature [°C] [Min]
-20 °C
Suction Line Vacuum [bar] [Max]
0.4 bar
Supply peak voltage [V] [Max]
253 V
Supply peak voltage [V] [Min]
207 V
Supply voltage [V]
230 V
Supply voltage [V] [Max]
230 V
Supply voltage [V] [Min]
220 V
Type
BFP 52
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,18
UL evaluated
Out of scope
Viscosity [cSt] [Max]
12 cSt
Viscosity [cSt] [Min]
1.3 cSt
071B0011
BUSH 32 → 54 mm.
071N0005
NO SERVICE VALVE FOR USE W. NC COIL
071N0041
CHANGE OVER SCREW 2-PIPE OPERATION
071N0047
BUSH 32 → 54 mm W. STD. FLANGE.
071N0064
CARTRIGDE STRAINER BFP
071N0074
PLUG FOR CARTRIGDE FILTER.
071N1006
COIL T85 230 V AC
071N1007
NO COIL T85 230 V AC
071N1033
O-rings for cover (ø54) and regulator (ø9,75)
071N1055
PLUG FOR 1/4" CONNECTIONS
071G0200
CABLE FOR NC VALVE, 500 mm OEM
071G0202
CABLE FOR NC VALVE, 280 mm OEM
071G0204
CABLE FOR NC VALVE, 710 mm OEM
071G0205
CABLE FOR NO VALVE, 710 mm OEM
071G0235
CABLE FOR NC VALVE, 180 mm OEM
