080G0327

Part Number: 080G0327
080G0327
Manufacturer
Danfoss
Part number
080G0327
Category

Product Information

Extended Description

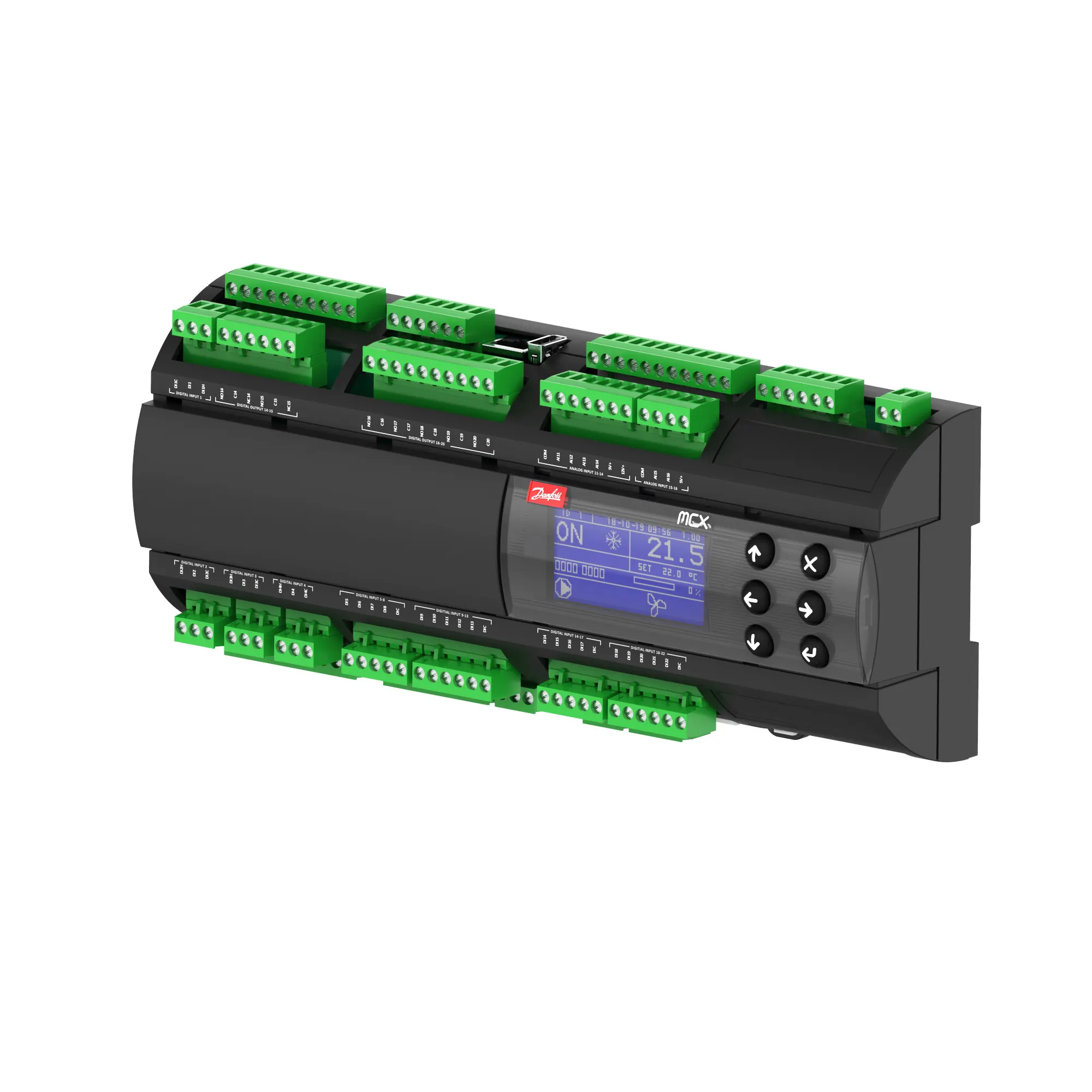

080G0327 Danfoss: Function: Programmable controllers, Supply voltage [V] AC: 24 - 230, Communication type: 1RS485; USB; CANBUS; ETHER, Packing format: Multi pack, Quantity per packing format: 8
Gross weight
0.981 Kilogram
Net weight
0.6 Kilogram
Volume
4.426 Liter
EAN
5715162508503
Analog inputs (AI) [pc]
10 pc
Analog outputs (AO) [pc]
6 pc
Approval
CE,EAC,UA,UL Recognized
Buzzer
No
CE evaluated
Yes
China RoHS compliance
Yes
Communication type
1RS485,CANBUS,ETHER,USB
Connector kit included
No
Digital inputs (DI) [pc]
22 pc
Digital outputs (DO) [pc]
15 pc
Display type
NO
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP40
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Programmable controllers
In scope of WEEE
Yes
Mounting method
DIN rail
Packing format
Multi pack
Power consumption [W]
15 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description
Program. controller, 15 relays
Quantity per packing format
8 pc
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC [max]
230 V
Supply voltage [V] AC [min]
24 V
Supply voltage [V] DC [max]
230 V
Supply voltage [V] DC [min]
40 V
Type
MCX15B2
Type designation
MCX15B2
UK RoHS compliance
Yes
UL evaluated
Yes
Programmable controller, 15 and 20 relays, type MCX15B2 and MCX20B2 MCX15B2-MCX20B2 programmable controller – Installation Guide Pre-programmed Controller MCX15B2 for IPS 8 - Replacement of MCX controller MCX15B2-MCX20B2, Programmable controller – User Guide Danfoss EU-UK 080R1226.02 MCX Programmable Controllers (w. WIFI/BT) Danfoss MD 080R1240.00 Danfoss MD 080R4002.01 F080G_0197_MCX15-20B2_lcd_Right F080G_0200_MCX15-20B2_no_lcd_Right F080G_0196_MCX15-20B2_lcd_Front F080G_0198_MCX15-20B2_no_lcd_Left F080G_0199_MCX15-20B2_no_lcd_Front F080G_0195_MCX15-20B2_lcd_Left
