080G0337

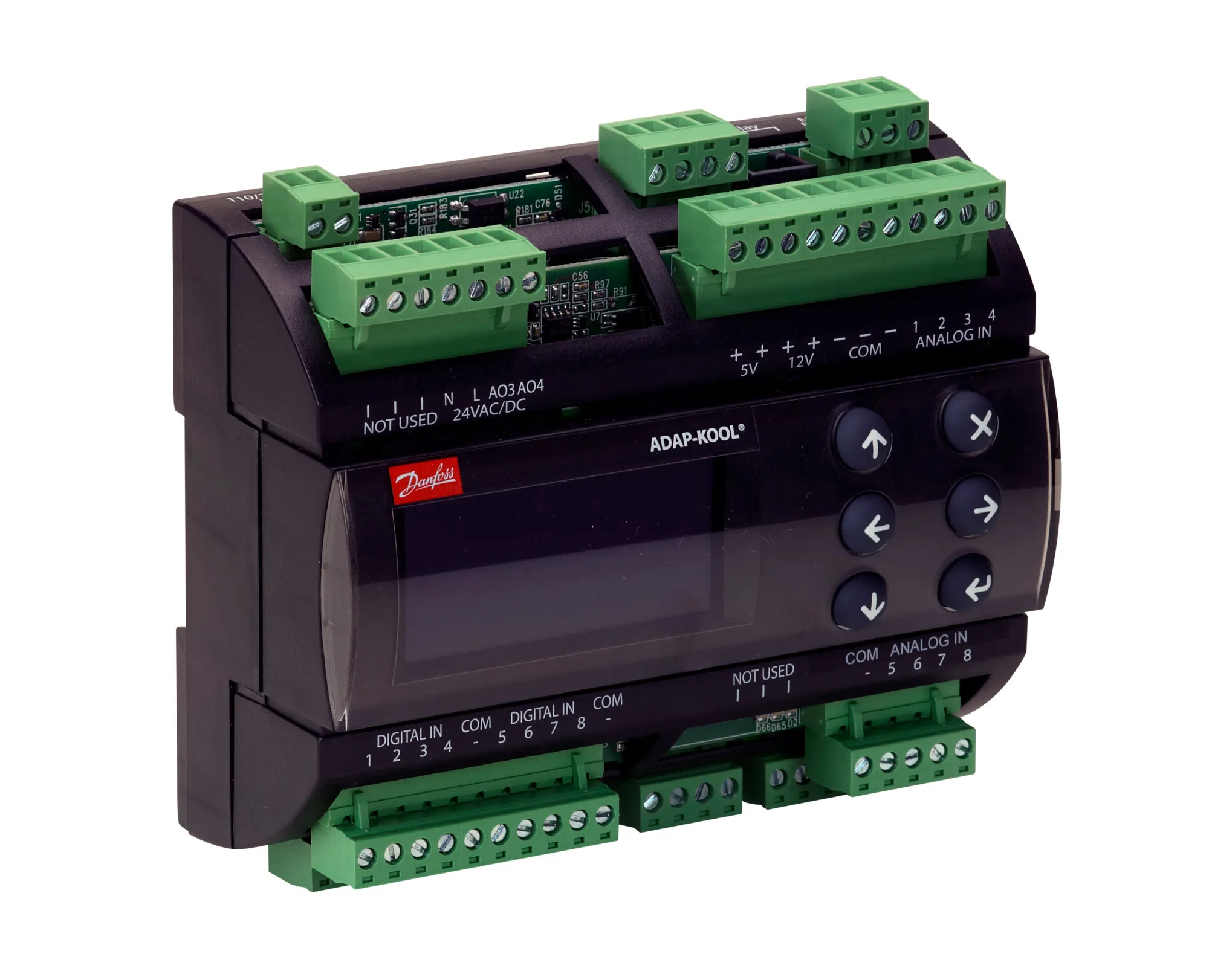

Part Number: 080G0337
Product Information
Extended Description
080G0337 Danfoss: Function: Capacity control, Supply voltage [V] AC: 24, Communication type: MODBUS, Packing format: Multi pack, Quantity per packing format: 12
Gross weight
632 Gram
Net weight
405 Gram
Volume
2.867 Liter
EAN
5715162688694
Analog inputs (AI) [pc]
8 pc
Analog outputs (AO) [pc]
4 pc
Approval
CE,EAC,LLC CDC EURO-TYSK,UL
Buzzer
Yes
China RoHS compliance
Yes
Communication type
MODBUS
Connector kit Code No.
080G0180
Connector kit included
Yes
Digital inputs (DI) [pc]
8 pc
Digital outputs (DO) [pc]
8 pc
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP40
EU RoHS compliance
Yes
EU RoHS exemption clause
No
Frequency [Hz]
50/60 Hz
Function
Capacity control
In scope of WEEE
Yes
Mounting method
DIN rail
Packing format
Multi pack
Power consumption [W]
10 W
Product accessories
Electron. control accessories
Product group
Programmable controllers
Product Name Description
Program. controller, 8 relays
Quantity per packing format
12 pc
Real time clock
Yes
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
MCX08M2
Type designation
MCX08M2
UK RoHS compliance
Yes
