080G5030

Part Number: 080G5030
080G5030
Manufacturer
Danfoss
Part number
080G5030
Category

Product Information

Extended Description

080G5030 Danfoss: Analog inputs (AI) [pc]: 1, Frequency [Hz]: 50/60 Hz, Communication type: TTL to Interface
Gross weight
0.14 Kilogram
Net weight
0.08 Kilogram
Volume
0.841 Liter
EAN
5715162302699
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-20 °C
Analog inputs (AI) [pc]
1 pc
Analog inputs type
Voltage or Current
Approval
CE,CMIM,RoHS,UA,UKCA,cURus
Battery back-up [V] DC [max]
24 V
Battery back-up [V] DC [min]
18 V
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
TTL to Interface
Contain batteries
No
Digital outputs (DO) [pc]
1 pc
Enclosure rating IP
IP00
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Further information
Shared power supply
Mounting method
DIN rail
Packing format
Multi pack
Product group
Electronic valve control
Product Name Description
Stepper valve driver
Programming tools
Koolprog
Quantity per packing format
24 pc
REACH Candidate List substances
Lead monoxide (PbO, CAS no. 1317-36-8),Diboron trioxide (B2O3, CAS no. 1303-86-2),Lead (CAS no. 7439-92-1)
SCIP dossier no.
6ff7f959-f26d-4112-9a27-0c045b584689
SCIP dossier product name
EKF
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
EKF 1A
UK RoHS compliance
Out of scope
UL evaluated
Yes
Valve output number
1
Valve output type
CCM 10,CCM 20,CCM 30,CCM 40,CCMT 16,CCMT 2,CCMT 24,CCMT 30,CCMT 4,CCMT 42,CCMT 8,CCMT L,CTR 20,ETS 100,ETS 100C,ETS 12.5,ETS 12C,ETS 24C,ETS 25,ETS 250,ETS 25B,ETS 25C,ETS 400,ETS 50,ETS 50C,ETS 5M,ETS 6,JKV,KVS 15,KVS 2C,KVS 3C,KVS 42,KVS 5C,UKV
080N0324
Electron. control accessories, KoolKey cable EET, EETx
080G5555
Backup power module, EKE 2U
080N0020
Electron. control accessories, EKA 200 KoolKey 2.0, ERC11x, ERC 21x and EETx
080Z0057
Electron. control accessories, AK-PS 063 STEP3 Accessory Power Supply, Power Supply
080Z0058
Electron. control accessories, AK-PS 130 STEP3 Accessory Power Supply, Power Supply
080Z0059
Electron. control accessories, AK-PS 250 STEP3 Accessory Power Supply, Power Supply

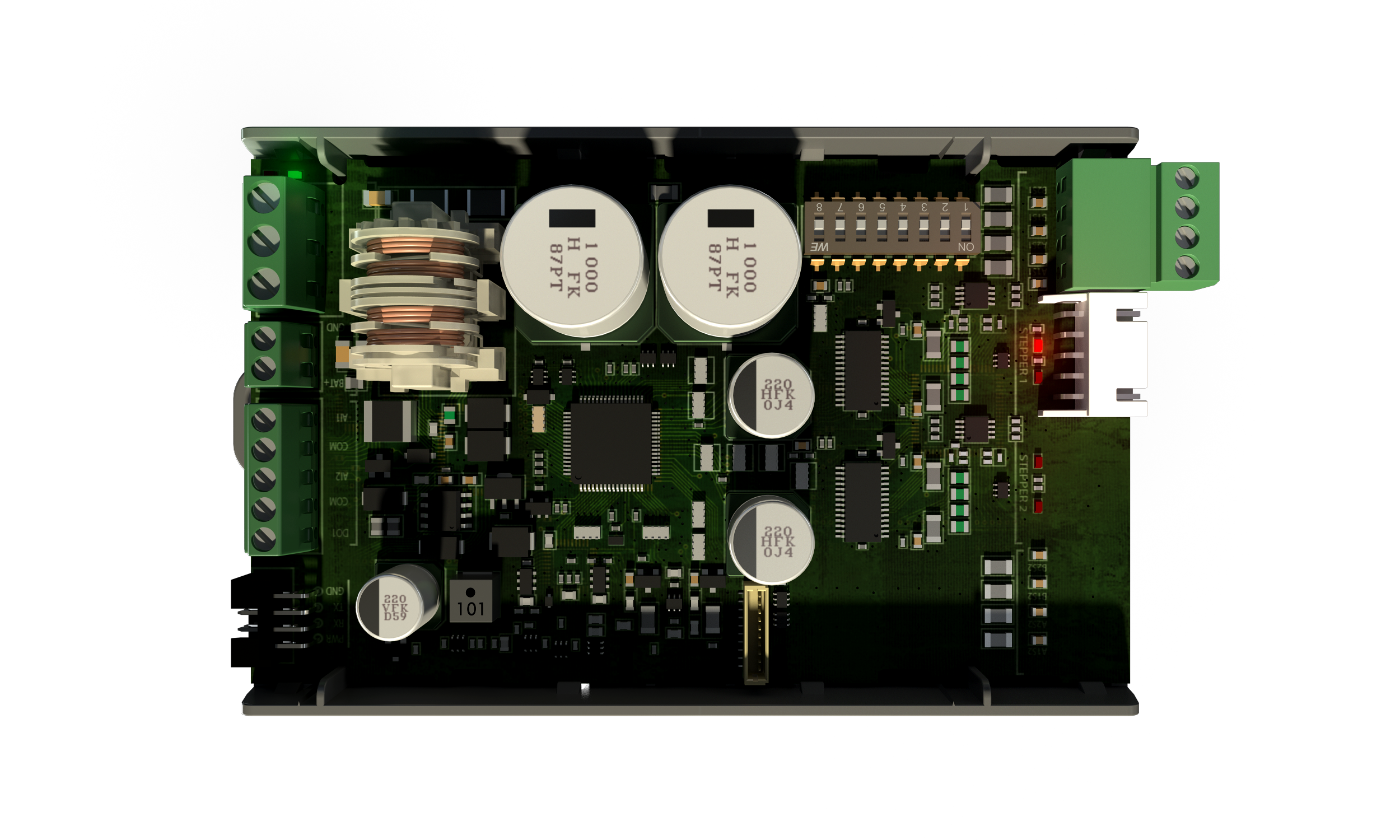

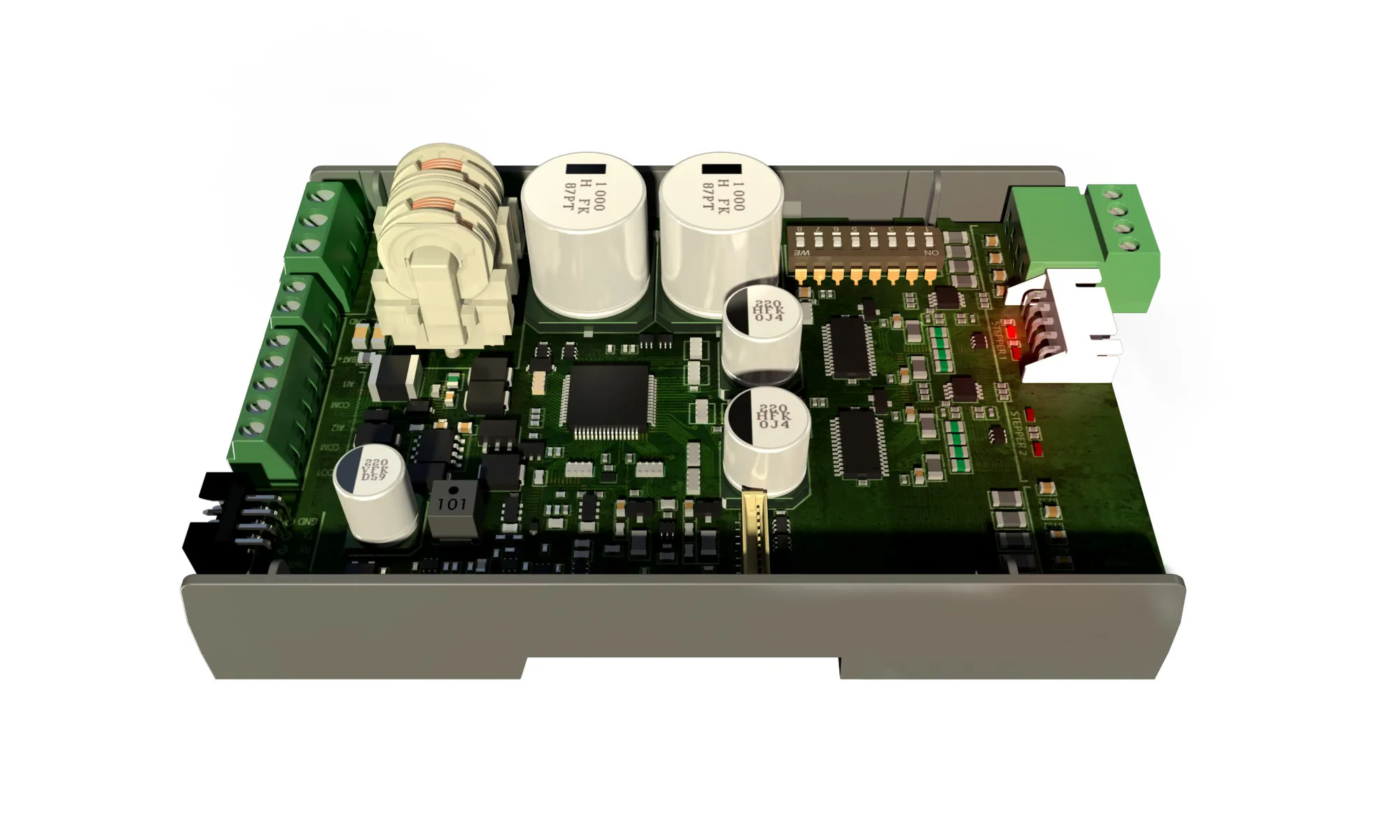

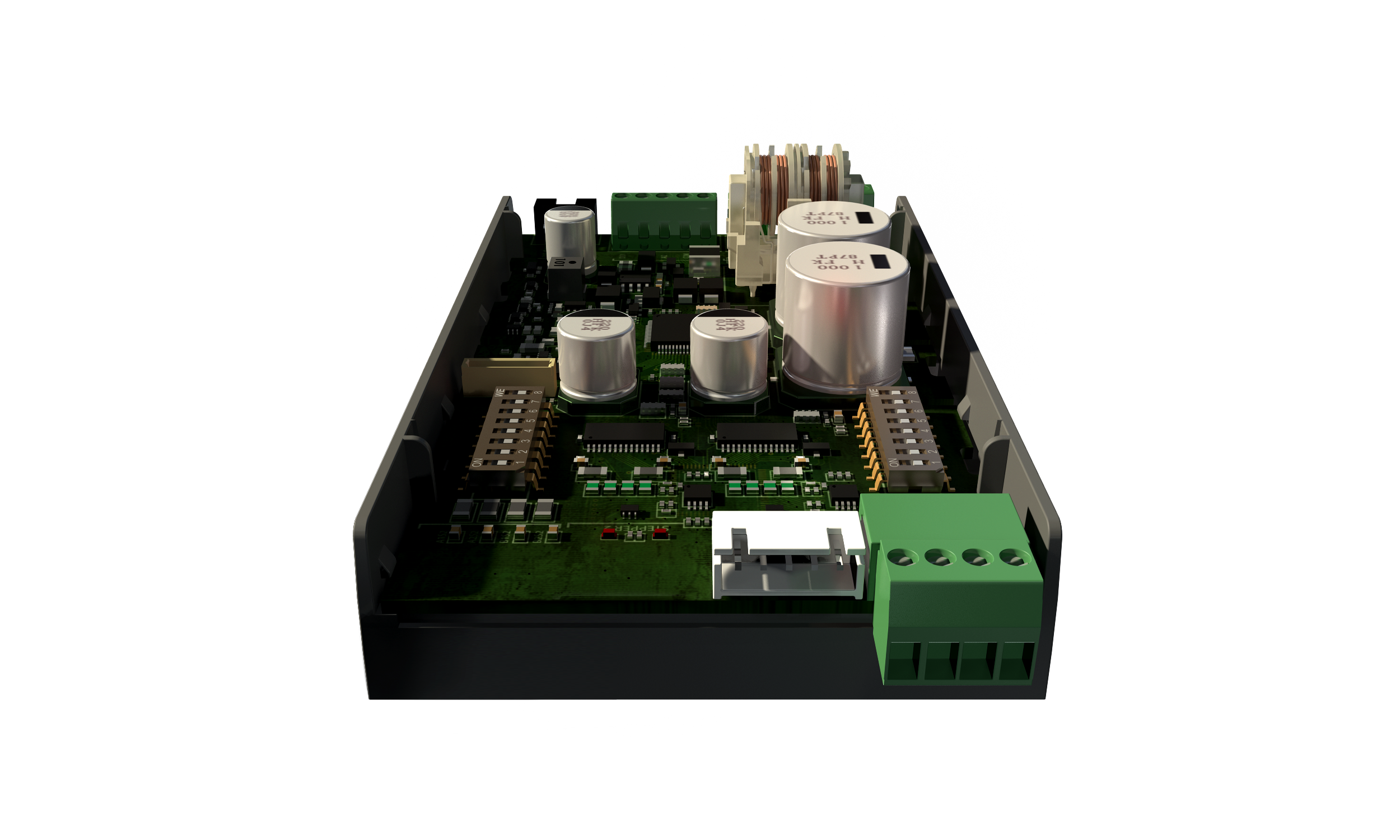

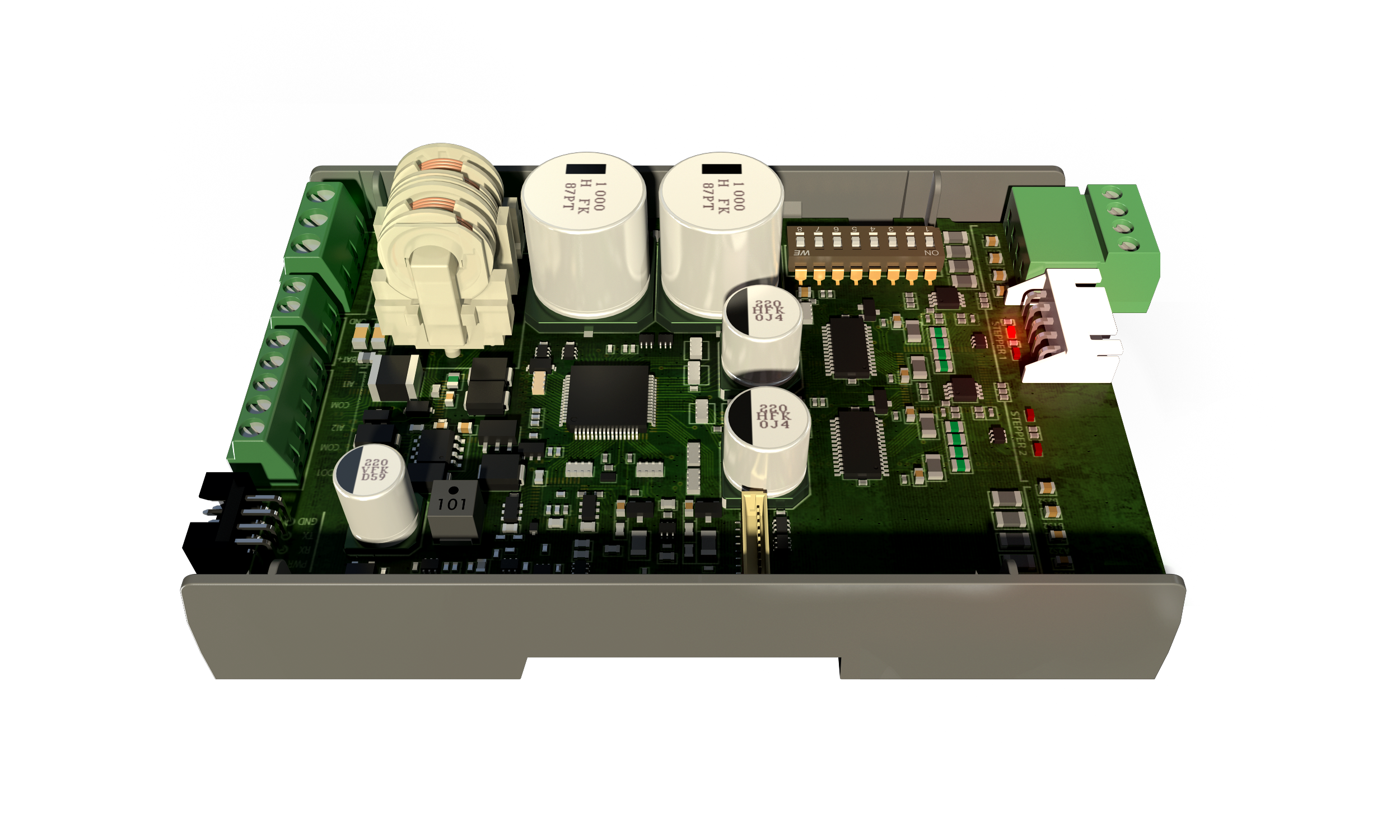

Stepper Valve driver Type EKF 1A, EKF 2A KoolKey, type EKA 200 Stepper Valve Driver Type EKF 1A, EKF 2A (080G5030,080G5035:PV03, 080G5036:PV01 KoolProg – User Guide Stepper valve driver_type_EKF_1A_and_EKF_2A Danfoss EU-UK 084R0842.00 UL E31024 Danfoss MD 080R1250.02 EKF 1A side view EKF 1A top EKF 1 A rear WEB080G5030
