080G5052
Part Number: 080G5052
Product Information
Extended Description
080G5052 Danfoss: Supply voltage [V] AC: 24, Communication type: Modbus RS485 RTU, 1, Analog inputs (AI) [pc]: 1, Digital inputs (DI) [pc]: 1, Digital outputs (DO) [pc]: 1, Enclosure rating IP: IP20, Mounting method: DIN rail
Gross weight
0.196 Kilogram
Net weight
0.155 Kilogram
Volume
0.854 Liter
EAN
5715162500798
Ambient temperature range [°C] [max]
70 °C
Ambient temperature range [°C] [min]
-20 °C
Analog inputs (AI) [pc]
1 pc
Analog inputs type
Voltage or Current
Approval
CE,EAC,RCM,RoHS,UA,UKCA,cURus
Battery back-up [V] DC [max]
24 V
Battery back-up [V] DC [min]
18 V
Buzzer
No
CE evaluated
Yes
Communication type
Modbus RS485 RTU
Connector kit included
Yes
Contain batteries
No
Digital inputs (DI) [pc]
1 pc
Digital outputs (DO) [pc]
1 pc
Display - option
Integrated
Display on front
Yes
Display type
LCD
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating IP
IP20
EU RoHS compliance
Yes
Frequency [Hz]
50/60 Hz
Gateway option
Koolkey
In scope of WEEE
Yes
Mounting method
DIN rail
Number of pressure sensors
1
Number of temperature sensors
1
Packing format
Multi pack
Pressure sensor support
4 - 20 mA,Ratiometric 0.5 - 4.5 V DC
Product accessories
Electron. control accessories
Product features
Alarm management,Capacity signal from master,Defrost Sequence,Ext reference, temp/SH control,Limitation functions,Manual operation,Preset OD,Reversible system with 1 EXV,Service mode,Start up,Superheat reference,Valve driver: Reference of OD
Product group
Electronic valve control
Product Language
English
Product Name Description
SH controller and valve driver
Programming tools
Koolprog
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Real time clock
No
SCIP dossier no.
dd52e03c-8b66-4f5b-8e23-1c1ace447e1c
SCIP dossier product name
EKE 100,110
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Temp. sensor configuration
S2A
Temp. sensor support
NTC10000,Pt 1000
Type
EKE 100 1V
UL evaluated
Yes
Valve output number
1
Valve output type
CCM 10,CCM 20,CCM 30,CCM 40,CCMT 10L,CCMT 16,CCMT 2,CCMT 24,CCMT 30,CCMT 3L,CCMT 4,CCMT 42,CCMT 5L,CCMT 8,CCMT 8L,CTR 20,ETS 100,ETS 100C,ETS 12,ETS 12C,ETS 175L,ETS 175L OFHT,ETS 24C,ETS 25,ETS 250,ETS 250L,ETS 250L OFHT,ETS 25C,ETS 400,ETS 400L,ETS 400L OFHT,ETS 50,ETS 500L,ETS 500L OFHT,ETS 50C,ETS 6,ETS 8M,KVS 15,KVS 1C,KVS 2C,KVS 3C,KVS 42,KVS 5C
080N0020
Electron. control accessories, EKA 200 KoolKey 2.0, ERC11x, ERC 21x and EETx
080G5058
Electron. control accessories, Service cable
080G5555
Backup power module, EKE 2U
080Z0057
Electron. control accessories, AK-PS 063 STEP3 Accessory Power Supply, Power Supply
080Z0058
Electron. control accessories, AK-PS 130 STEP3 Accessory Power Supply, Power Supply
080Z0059
Electron. control accessories, AK-PS 250 STEP3 Accessory Power Supply, Power Supply
Superheat Controller and stepper valve driver Type EKE 100
EKE, Type EKE 100
EKE 100 Superheat Controller Flyer
Superheat controller and stepper valve drive_type EKE 100
Danfoss EU-UK 080R5333.AB
UL E31024 UL-CA-2320815-0
Electronic Superheat Controller and Electronic Valve driver and injection controller
Danfoss MD 080R5334.AC

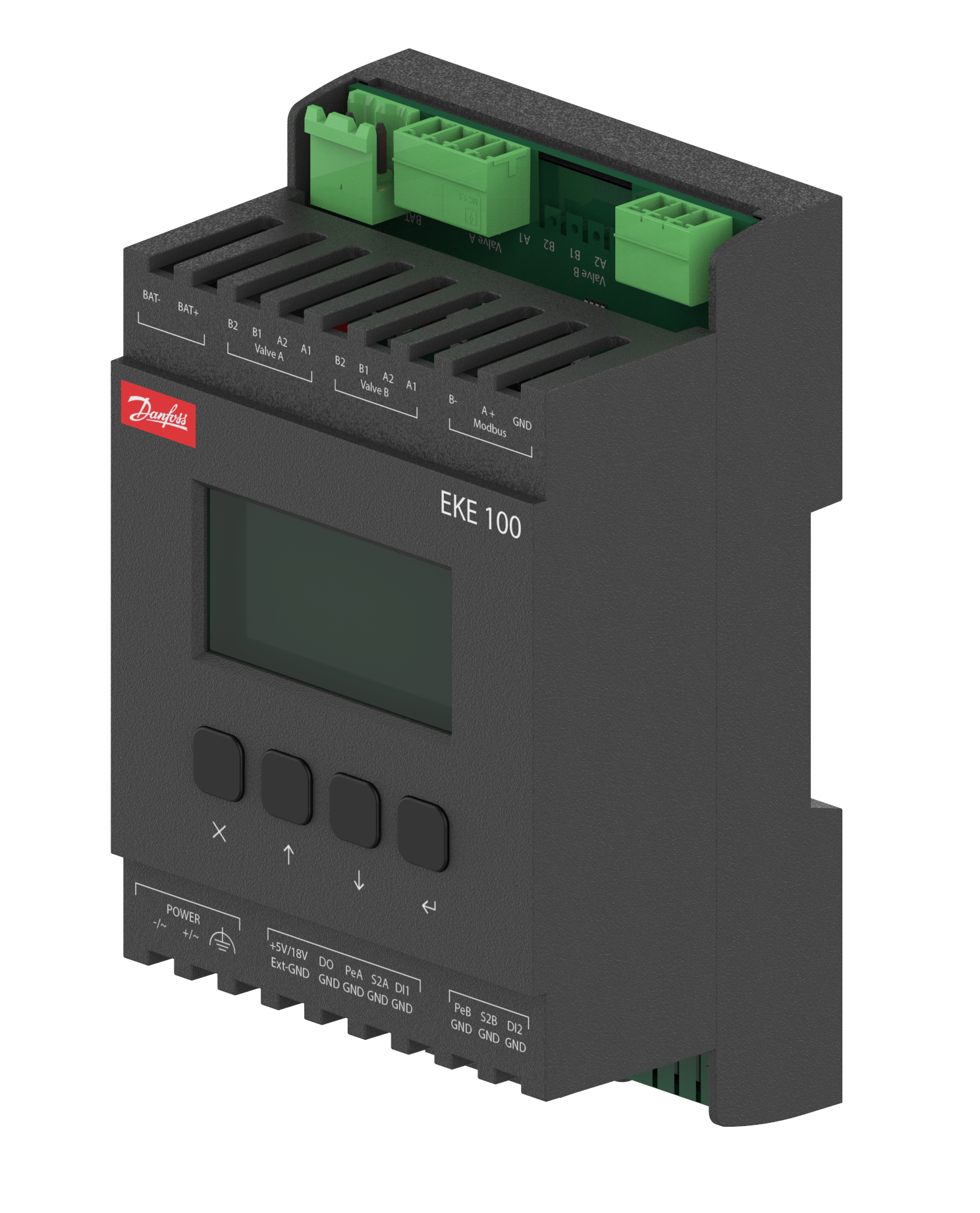

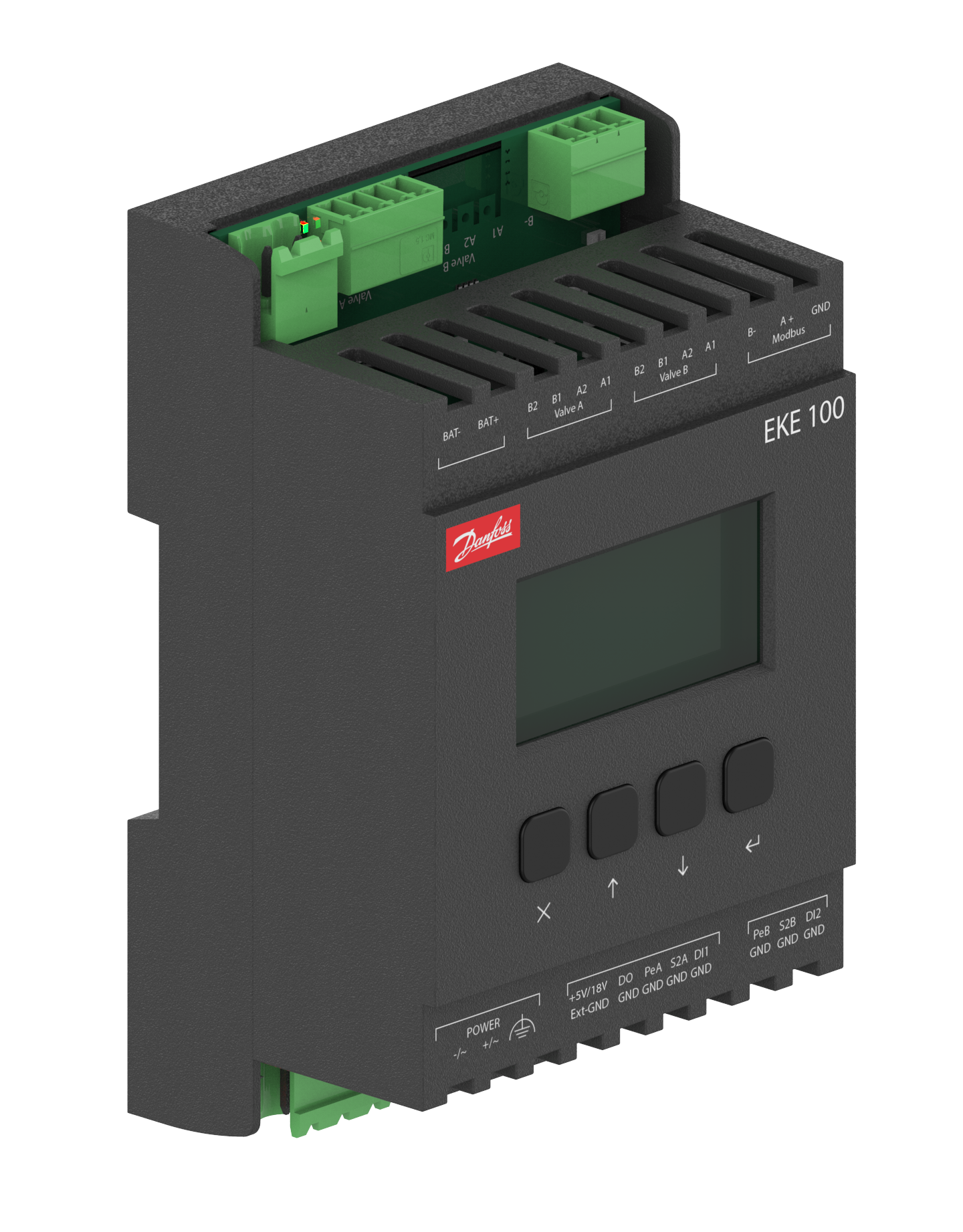

EKE 100 -1V with display
EKE 100 -1V with display
EKE 100 -1V with display
SH controller EKE100 1V IP20 screen
SH controller EKE100 1V IP20 screen
