080G5350

Part Number: 080G5350
080G5350
Manufacturer
Danfoss
Part number
080G5350
Category

Product Information

Extended Description

080G5350 Danfoss: Digital inputs (DI) [pc]: 2, Analog inputs (AI) [pc]: 2, Pressure sensor support: Ratiometric 0.5 - 4 V DC, Frequency [Hz]: 50/60 Hz, Number of temperature sensors: 2, Number of pressure sensors: 1, Communication type: RJ11 (CAN) to User Interface; Modbus RS485 RTU
Gross weight
0.256 Kilogram
Net weight
0.134 Kilogram
Volume
1.829 Liter
EAN
5702428964326
Analog inputs (AI) [pc]
2 pc
Analog inputs type
Voltage
Approval
C-TICK,CE,EAC,LLC CDC EURO-TYSK,RoHS,UKCA
Battery back-up [V] DC [max]
24 V
Battery back-up [V] DC [min]
18 V
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Modbus RS485 RTU,RJ11 (CAN) to User Interface
Contain batteries
No
Digital inputs (DI) [pc]
2 pc
Digital outputs (DO) [pc]
1 pc
Display - option
MMIGRS2
Display on front
No
Division
01
EEE category
5 small equipment (any external dimension 50 cm)
Enclosure rating note
IP40 for Housing
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Further information
Shared power supply,Signal share via hardwire
Gateway option
MMIMYK
In scope of WEEE
Yes
Mounting method
DIN rail
Number of pressure sensors
1
Number of temperature sensors
2
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
PFAS content [Yes/No]
No
Pressure sensor support
Ratiometric 0.5 - 4 V DC
Product accessories
Electron. control accessories
Product features
Alarm management,Capacity signal from master,Defrost Sequence,Ext reference, temp/SH control,Limitation functions,Manual operation,Preset OD,Reversible system with 1 EXV,Service mode,Start up,Superheat reference,Valve driver: Reference of OD
Product group
Electronic valve control
Product Language
Chinese,English,French,German,Italian,Portuguese,Russian,Spanish
Product Name Description

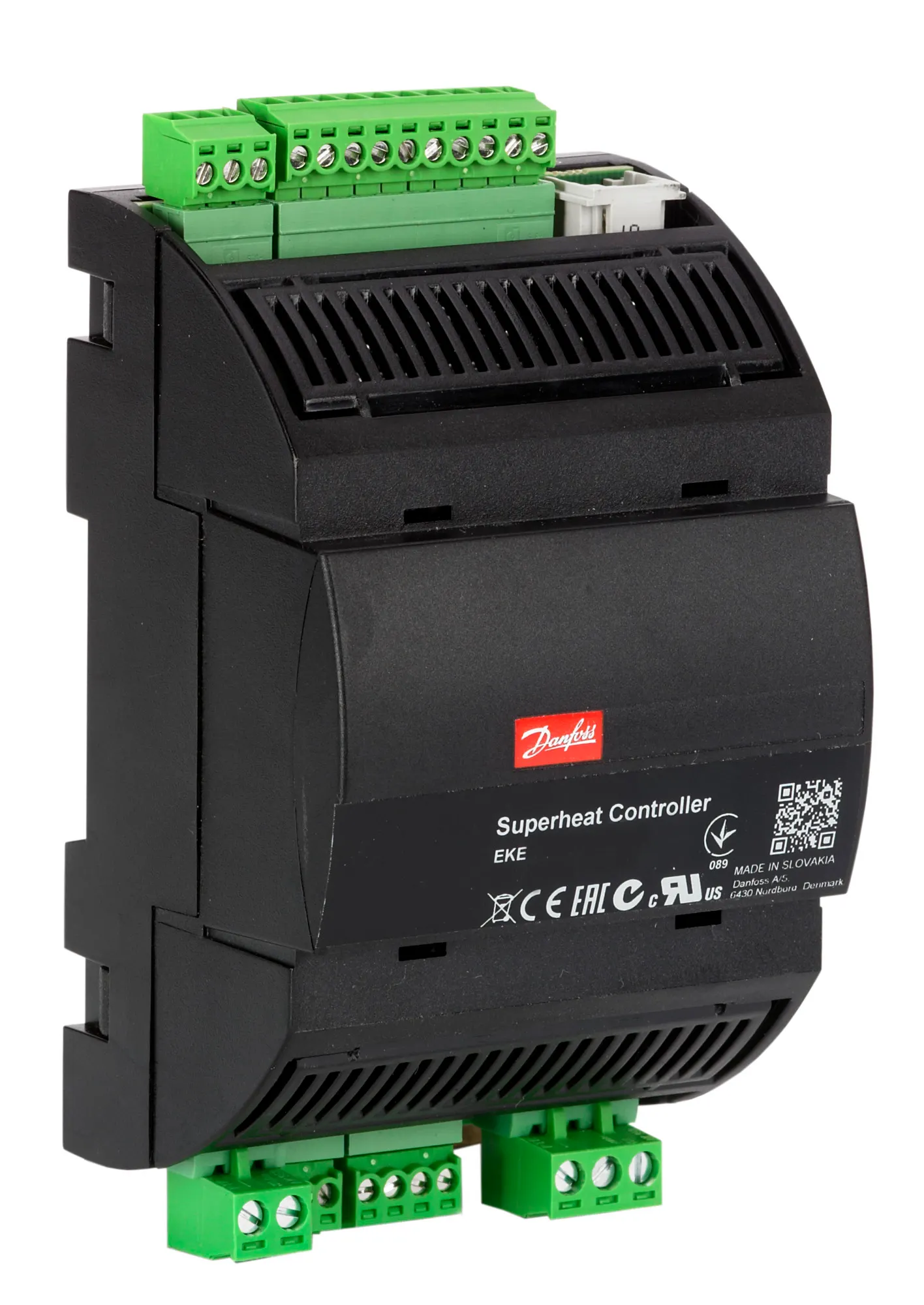

Superheat controller
Programming tools
Koolprog
Quantity per packing format
16 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Temp. sensor configuration
S2 and S3 or S4
Temp. sensor support
NTC10000
Type
EKE 1B
UK RoHS compliance
Out of scope
Valve output type
CCM 10,CCM 20,CCM 30,CCM 40,CCMT 0,CCMT 1,CCMT 16,CCMT 2,CCMT 24,CCMT 30,CCMT 4,CCMT 42,CCMT 8,CTR 20,ETS 100,ETS 100C,ETS 12.5,ETS 12C,ETS 24C,ETS 25,ETS 250,ETS 25B,ETS 25C,ETS 400,ETS 50,ETS 50C,ETS 5M,ETS 6,KVS 15,KVS 2C,KVS 3C,KVS 42,KVS 5C
080G0073
Programming key, MMIMYK
080G0075
Electron. control accessories, ACCCBI Cable, U.I. 1.5m, MCX series
080G0294
Control panel, MMIGRS2
080G5555
Backup power module, EKE 2U
080Z0057
Electron. control accessories, AK-PS 063 STEP3 Accessory Power Supply, Power Supply
080Z0058
Electron. control accessories, AK-PS 130 STEP3 Accessory Power Supply, Power Supply
080Z0059
Electron. control accessories, AK-PS 250 STEP3 Accessory Power Supply, Power Supply
Superheat Controller brochure Supermarket Catalog 2020 Superheat controller Type EKE 1A, 1B, 1C, 1D (PV04) Electronic superheat controller. Type EKE 1B Superheat controller Type EKE 1A, 1B, 1C, 1D Danfoss EU-UK 080R4003.03 UL E31024 Danfoss MD 080R1250.02 Superheat controller, Type EKE 1B WEB080G5350
