080G5555

Part Number: 080G5555
080G5555
Manufacturer
Danfoss
Part number
080G5555
Category

Product Information

Extended Description

080G5555 Danfoss: Supply voltage [V] AC: 24, Supply voltage [V] DC: 24, Approval: UL; RoHS; CE; UKCA, Max. current output/phase [A]: 2, Used for product: EKE 1A; EKD 316C; EIM 365; EKE 1D; MCX152V; EKE 1C; MCX061V; EKD 316; EKE 1B, Packing format: Multi pack
Gross weight
0.3 Kilogram
Net weight
0.25 Kilogram
Volume
1.883 Liter
EAN
5714279874402
Ambient temperature range [°C] [max]
60 °C
Ambient temperature range [°C] [min]
-25 °C
Analog inputs (AI) [pc]
0 pc
Analog outputs (AO) [pc]
0 pc
Approval
CE,RoHS,UKCA,UL
Battery back-up [V] DC
24 V
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Digital output
Contain batteries
No
Digital inputs (DI) [pc]
0 pc
Digital outputs (DO) [pc]
1 pc
Display - option
None
Display on front
No
Enclosure rating note
IP40 for Housing
EU RoHS compliance
Out of scope
Frequency [Hz]
50/60 Hz
Further information
Maximum nominal output current
Max. current output/phase [A]
2 A
Mounting method
DIN rail
Number of pressure sensors
0
Number of Sensor inputs
0 pc
Number of temperature sensors
0
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
15 VA
Product accessories
Electron. control accessories
Product features
Backup power for up to 2 EKE 1,LEDs showing status: Charging,LEDs showing status: Failed,LEDs showing status: Ready,LEDs showing status: Replace,Shared power supply,State of Health detection,Status output signal: Charging,Status output signal: Failed,Status output signal: Ready,Status output signal: Replace
Product group
Electronic controllers
Product Language
English
Product Name Description
Backup power module
Quantity per packing format
24 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
a943317a-3b9b-4eed-903d-d6796f9eb724
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
EKE 2U
UK RoHS compliance
Out of scope
UL evaluated
Yes
Used for product
EIM 365,EKD 316,EKD 316C,EKE 1A,EKE 1B,EKE 1C,EKE 1D,MCX061V,MCX152V

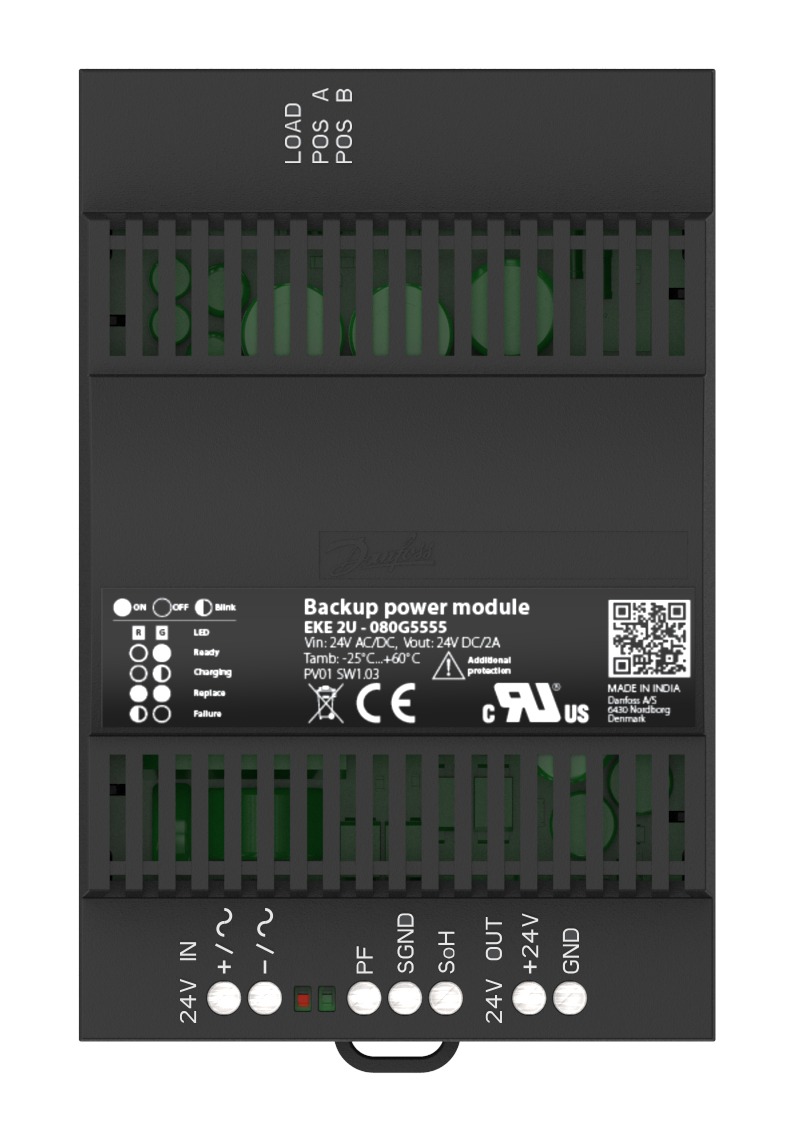

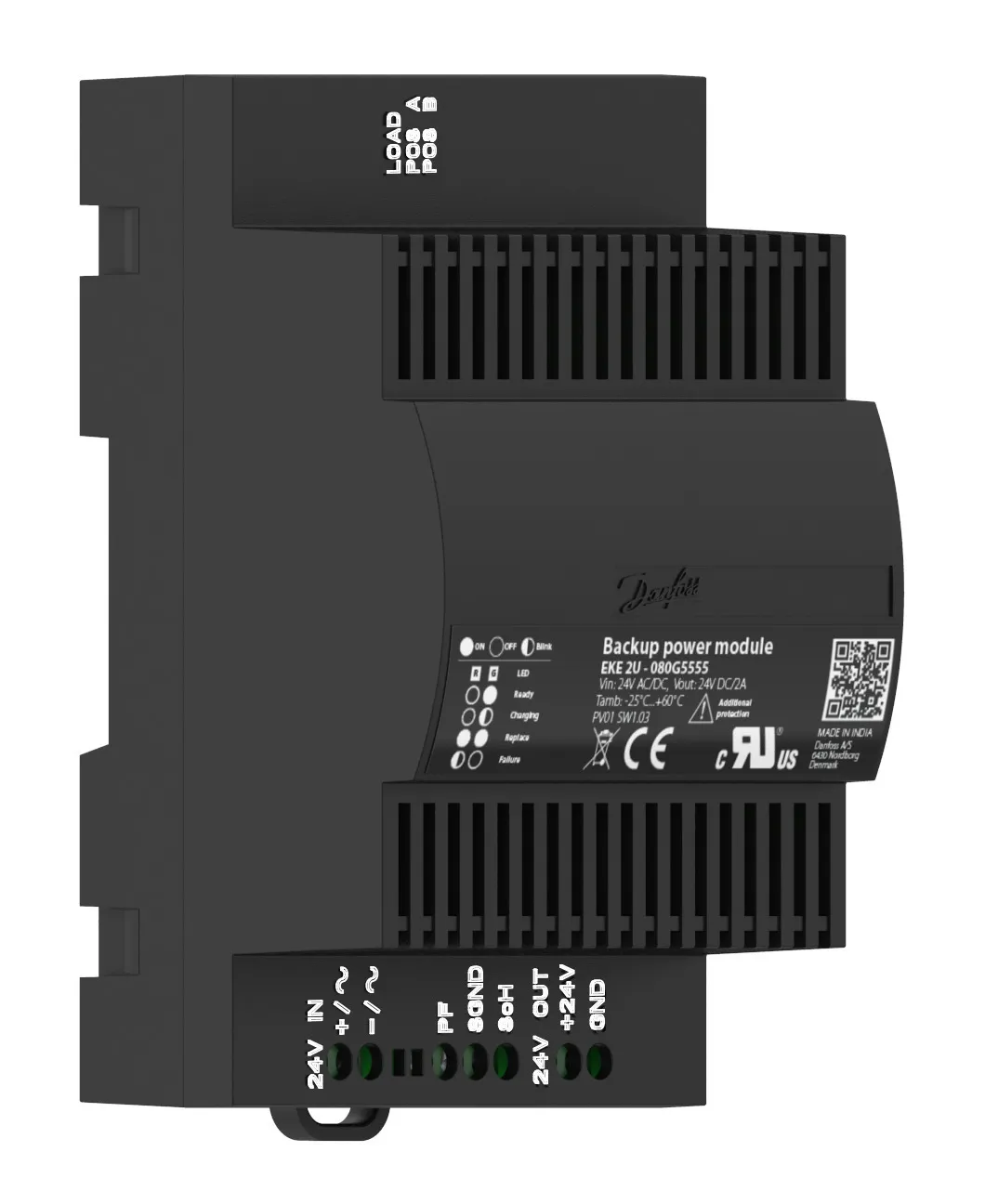

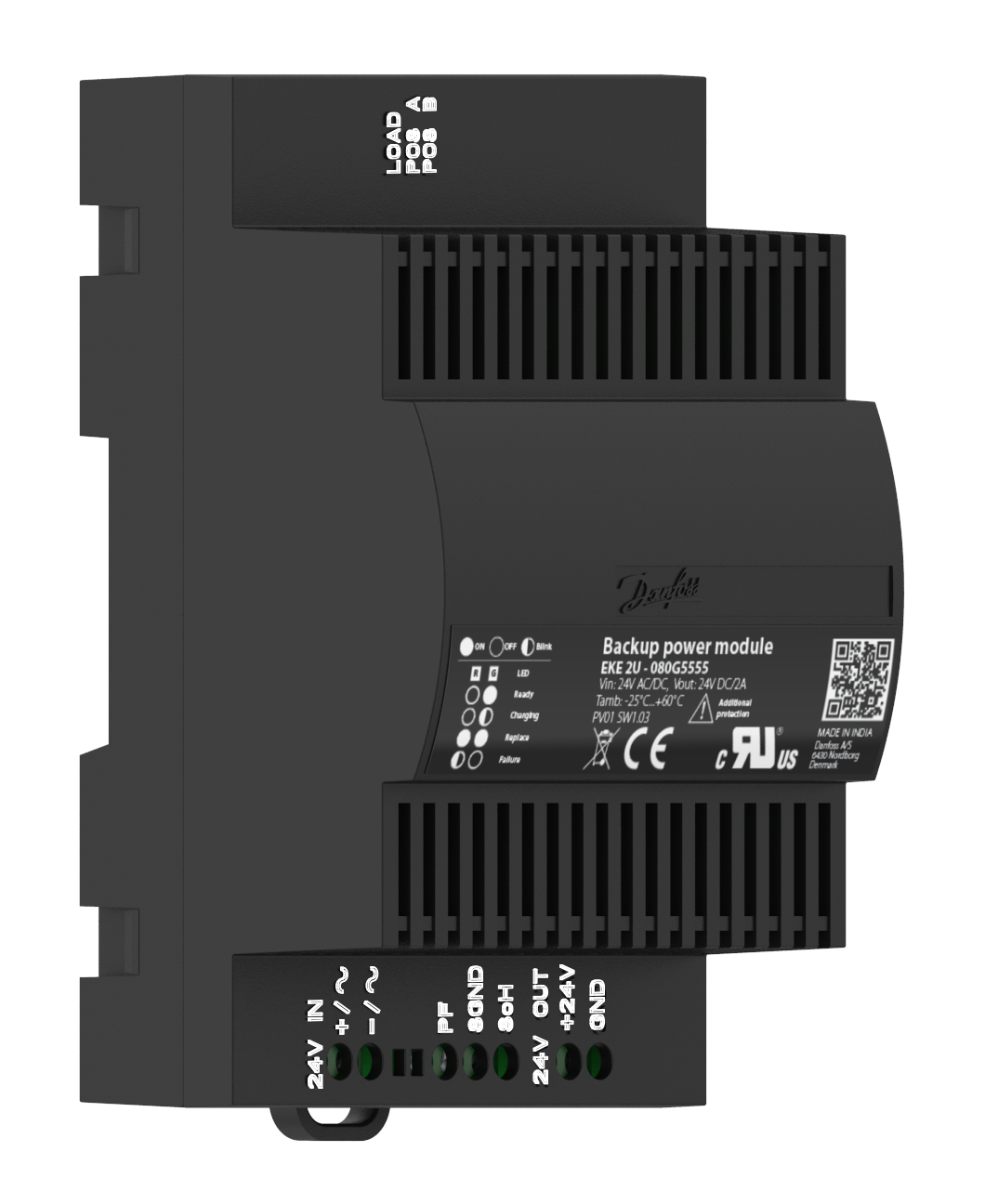

Injection Controller Type EKE 110 1V (PV01) Superheat Controller and stepper valve driver Type EKE 100 Superheat controller Type EIM 365 (PV01) Back up power module-Type EKE 2U Control of stepper motor valves with AK-CC55 Single Coil, EKE 1P and EKE 2U CO2 Minipack Solution ACMA CF14026_AU-Rev.00 Danfoss EU-UK 080R4005.03 UL E312397 Danfoss MD 080R1250.02 EKE 2U-Right side View EKE 2U-Back side View EKE 2U-Front side View EKE 2U-Left side View
