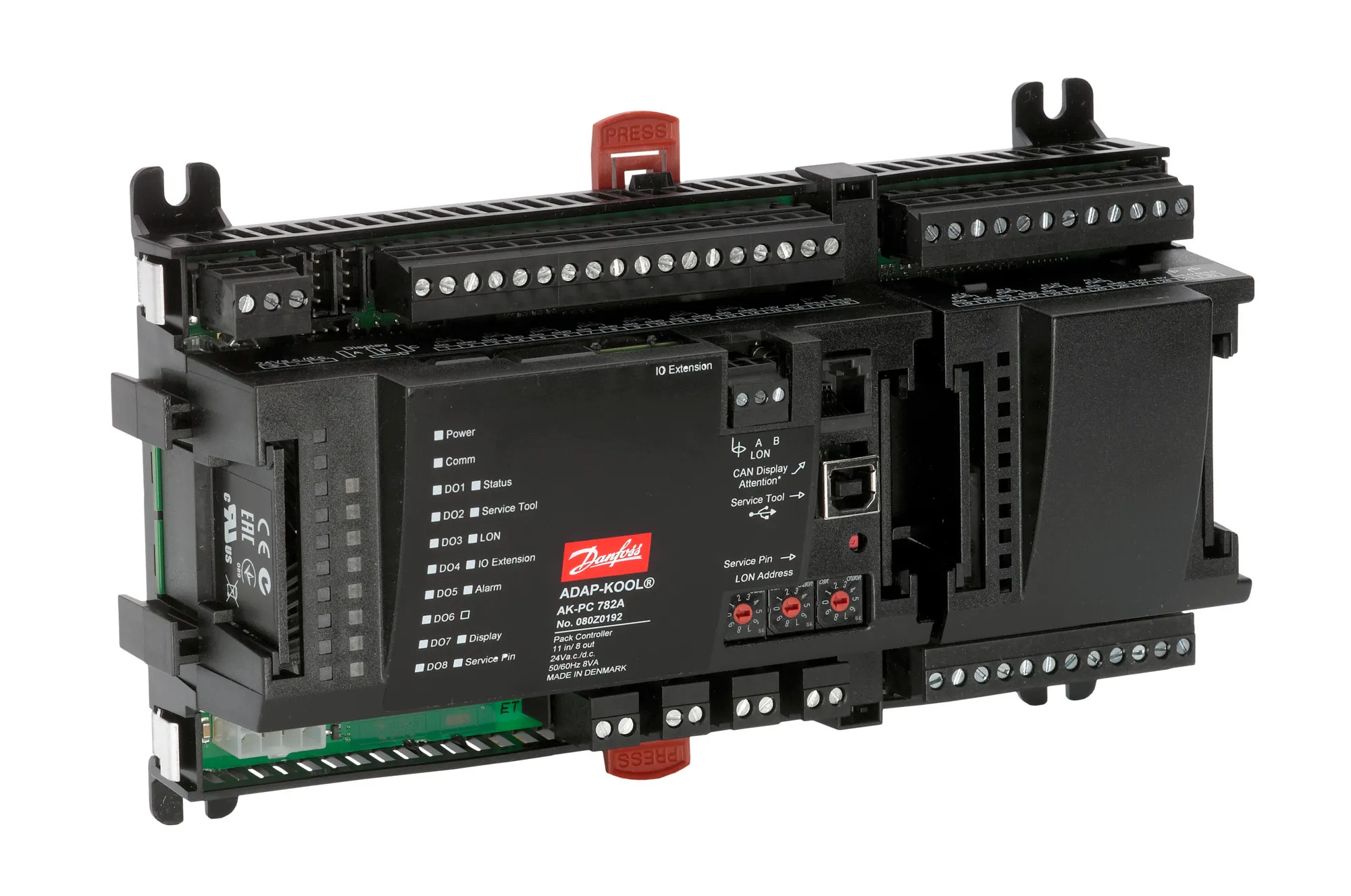

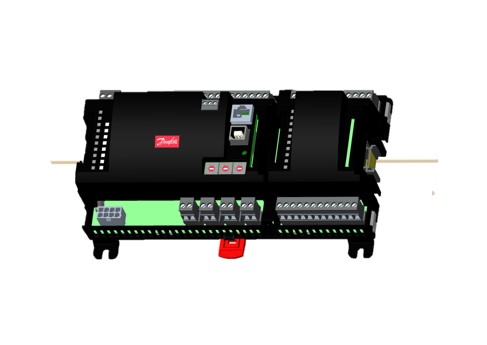

080Z0192

Part Number: 080Z0192
080Z0192
Manufacturer
Danfoss
Part number
080Z0192
Category

Product Information

Extended Description

080Z0192 Danfoss: Function: Transcritical Booster, Supply voltage [V] AC: 24, Communication type: RJ11 (CAN) to Display; RS232; LON RS485; USB-B to PC, Packing format: Single pack, Quantity per packing format: 1
Gross weight
0.964 Kilogram
Net weight
0.645 Kilogram
Volume
6.248 Liter
EAN
5702428946797
Addit. thermostats inputs max.
5 pc
Addit.press.switche inputs max
5 pc
Additional alarm inputs max.
10 pc
Additional analog inputs max.
5 pc
Additional PI Controls max.
3 pc
Analog inputs (AI) [pc]
11 pc
Application area
Capacity control
Approval
C-TICK,CE,EAC,LLC CDC TYSK,cURus
Capacity control input
Pressure
Capacity control mode
PI
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
LON RS485,RJ11 (CAN) to Display,RS232,USB-B to PC
Compressor capacity mode
Step/ Speed
Condenser control type
Temperature
Controller type
Pack Controller
Digital outputs (DO) [pc]
8 pc
Display - option
EKA 163B,EKA 164B,MMIGRS2
Display on front
No
Division
25
EU RoHS compliance
Out of scope
Fan capacity control
Step/ Speed
Fan control mode
PI
Frequency [Hz]
50/60 Hz
Function
Transcritical Booster
Further information
Transcri.,Speed,CO2,HP,Oil,HR
I/O connectors max.
160 pc
No.of compr. safty signals max
6 pc
No.of extention modules max.
11 pc
Number of Compressors max.
8 pc
Number of fans max.
8 pc
Oil management
Yes, w. CO2
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
PFAS content [Yes/No]
No
Power consumption [VA]
8 VA
Product accessories
Electron. control accessories
Product features
CO2 compliant,External comm. included,Floating condenser pressure,Heat recovery function,Load shedding,Night setback,P0 optimization,Pump control,Three way valve control
Product group
Compressor/condenser control
Product Language
Czech,Danish,Dutch,English,Finnish,French,German,Italian,Polish,Portuguese,Russian,Spanish
Product Name Description
Pack controller
Programming tools
AK-ST 500
Quantity per packing format
1 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
AK-PC 782A
UK RoHS compliance
Out of scope
UL evaluated
Yes
080Z0017
I/O module, AK-XM 205B
080Z0023
I/O module, AK-XM 208C
080Z0251
I/O and communication modules, AK-OB 110, Accessory, Analog output, I/O module
080Z0013
I/O module, AK-XM 102B
084B7298
Electron. control accessories, Cable 2m, EKA displays, S/M-Pack, EKA 163 - 166
080Z0032
I/O module, AK-XM 103A
080Z0064
Communication module, AK-CM 102
080Z0008
I/O module, AK-XM 102A
080Z0010
I/O module, AK-XM 205A
080Z0007
I/O module, AK-XM 101A
