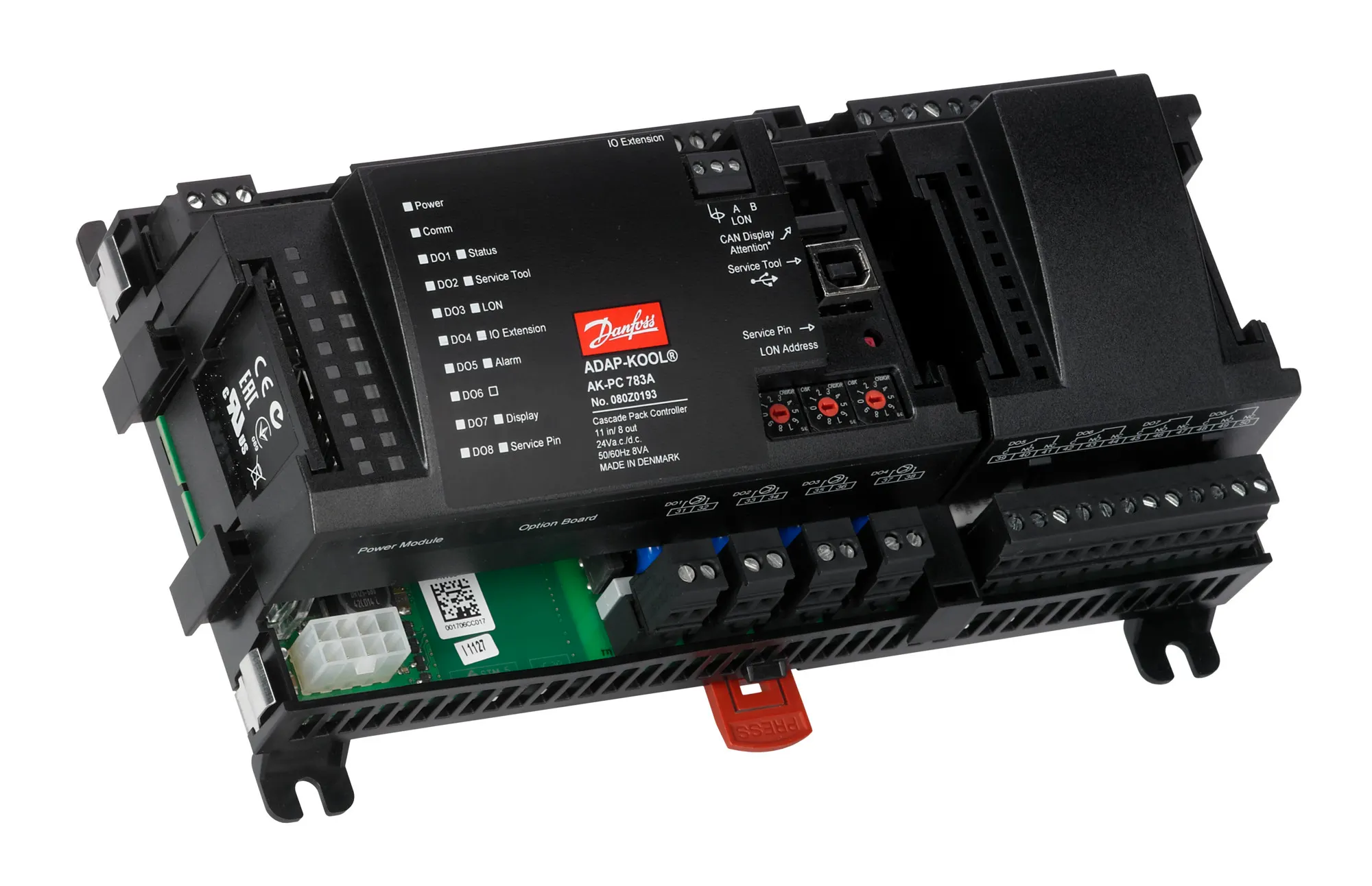

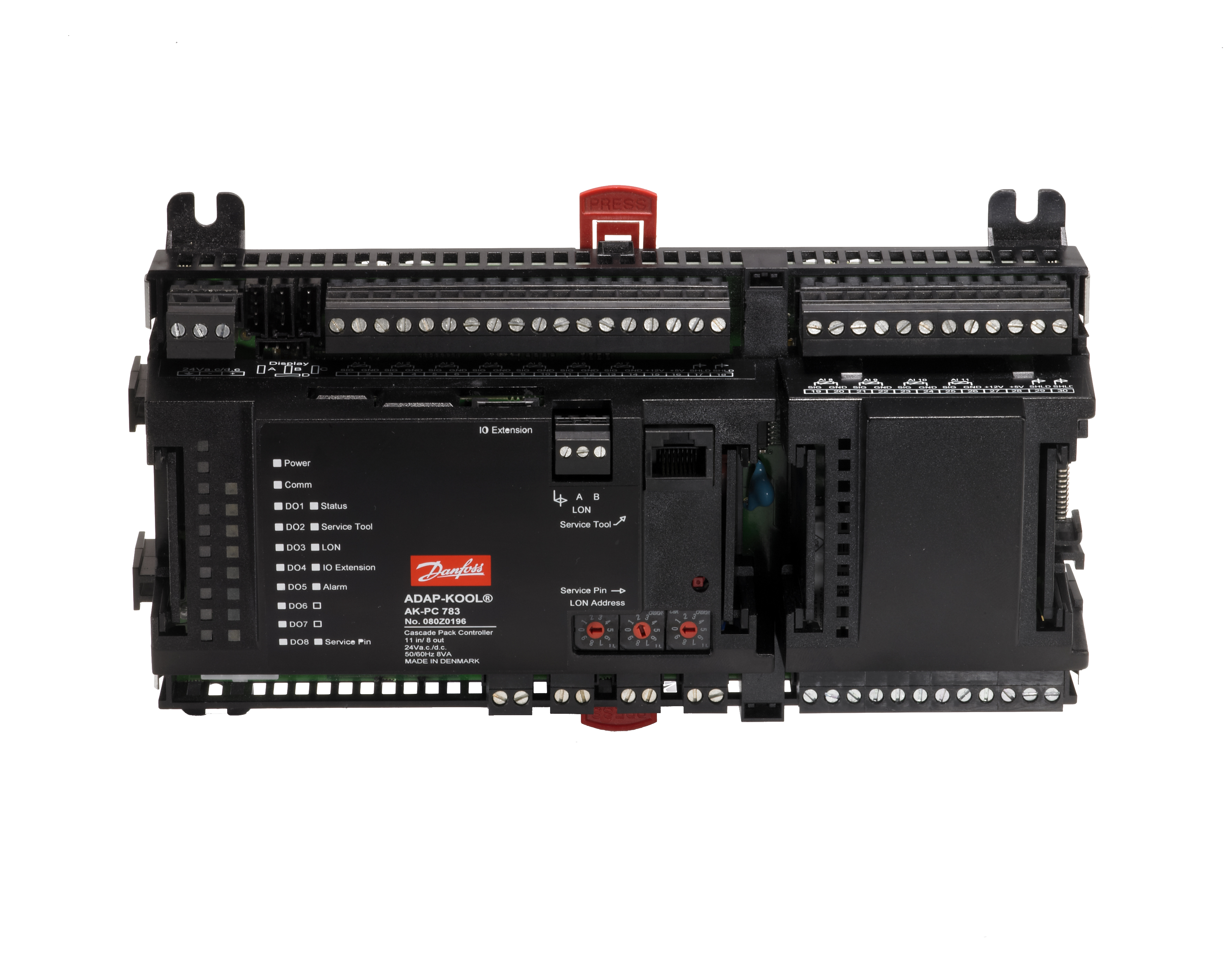

080Z0193

Part Number: 080Z0193
080Z0193
Manufacturer
Danfoss
Part number
080Z0193
Category

Product Information

Extended Description

080Z0193 Danfoss: Function: Pack w. Cascade, Supply voltage [V] AC: 24, Communication type: RJ11 (CAN) to Display; RS232; LON RS485; USB-B to PC, Packing format: Single pack, Quantity per packing format: 1
Gross weight
0.941 Kilogram
Net weight
0.645 Kilogram
Volume
5.68 Liter
EAN
5702428977562
Addit. thermostats inputs max.
3 pc
Addit.press.switche inputs max
3 pc
Additional alarm inputs max.
10 pc
Additional analog inputs max.
3 pc
Additional PI Controls max.
3 pc
Analog inputs (AI) [pc]
11 pc
Application area
Capacity control
Approval
C-TICK,CE,EAC,LLC CDC TYSK,cURus
Capacity control input
Pressure
Capacity control mode
PI
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
LON RS485,RJ11 (CAN) to Display,RS232,USB-B to PC
Compressor capacity mode
Step/ Speed
Condenser control type
Pressure/ Temperature
Controller type
Pack Controller
Digital outputs (DO) [pc]
8 pc
Display - option
EKA 163B,EKA 164B,MMIGRS2
Display on front
No
Division
25
EU RoHS compliance
Out of scope
Fan capacity control
Step/ Speed
Fan control mode
PI
Frequency [Hz]
50/60 Hz
Function
Pack w. Cascade
Further information
HFC/CO2, HC/CO2
I/O connectors max.
160 pc
No.of compr. safty signals max
6 pc
No.of extention modules max.
11 pc
Number of Compressors max.
12 pc
Number of fans max.
8 pc
Oil management
Yes, w. CO2
Other RoHS documentation
EAEU RoHS
Packing format
Single pack
PFAS content [Yes/No]
No
Power consumption [VA]
8 VA
Product accessories
Electron. control accessories
Product features
CO2 compliant,Cascade control,Condenser error monitoring,External comm. included,Floating condenser pressure,Heat recovery function,Load shedding,Night setback,P0 optimization
Product group
Compressor/condenser control
Product Language
Chinese,Czech,Danish,Dutch,English,Finnish,French,German,Italian,Polish,Portuguese,Russian,Spanish
Product Name Description
Pack controller
Programming tools
AK-ST 500
Quantity per packing format
1 pc
Serviceable
No
Supply voltage [V] AC
24 V
Supply voltage [V] DC
24 V
Type
AK-PC 783A
UK RoHS compliance
Out of scope
UL evaluated
Yes
080G0294
Control panel, MMIGRS2
080Z0010
I/O module, AK-XM 205A
080Z0023
I/O module, AK-XM 208C
080Z0017
I/O module, AK-XM 205B
080Z0053
Electron. control accessories, AK-PS 075, Accessory, Power Supply, Power Supply
080Z0013
I/O module, AK-XM 102B
084B8575
Electron. control accessories, EKA 164B, Display, Remote setting, EKC Controllers
080Z0251
I/O and communication modules, AK-OB 110, Accessory, Analog output, I/O module
080G0076
Electron. control accessories, ACCCBI Cable Telephone U.I. 3m, MCX series
080G0075
Electron. control accessories, ACCCBI Cable, U.I. 1.5m, MCX series
