082G7350

Part Number: 082G7350
082G7350
Manufacturer
Danfoss
Part number
082G7350
Category

Product Information

Extended Description

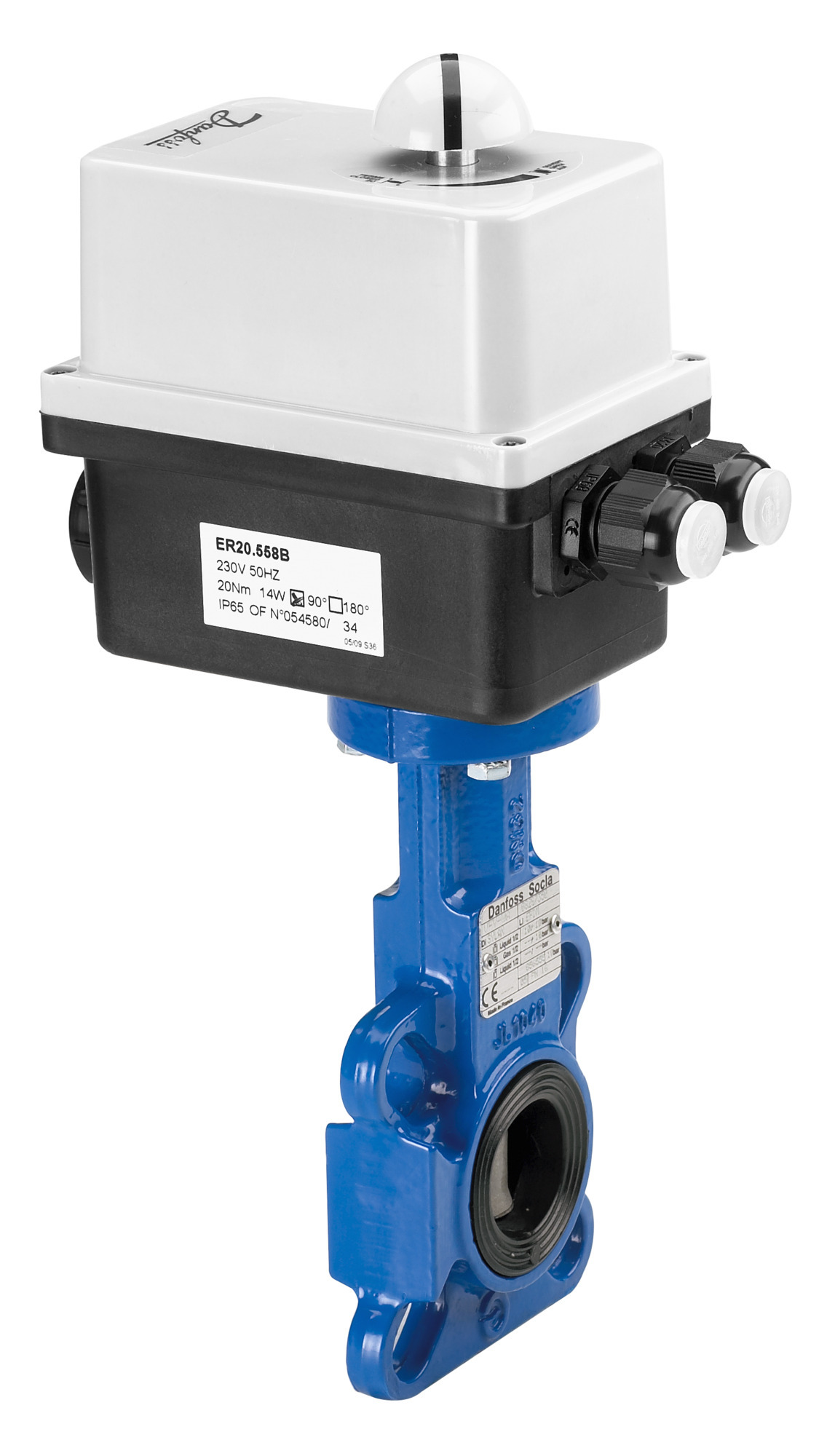

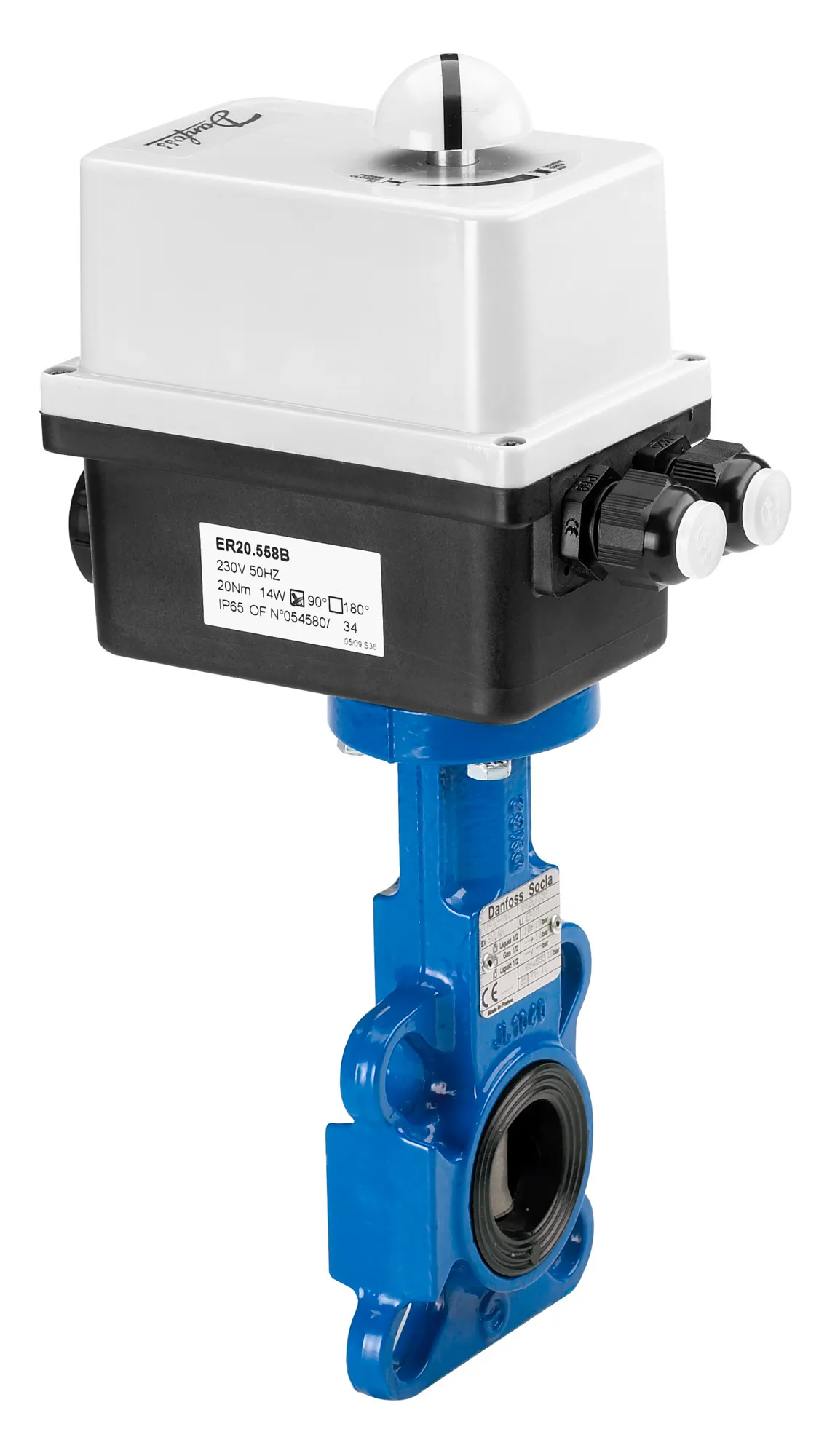

082G7350 Danfoss: VFY-WA PN10 DN25 230V CI/SS/EPDM 230V
Gross weight
3.494 Kilogram
Net weight
3.494 Kilogram
Volume
27.817 Liter
EAN
5702421536384
Ambient temperature [=C2=B0C] [max]
55 =C2=B0C
Ambient temperature [=C2=B0C] [min]
-10 =C2=B0C
Application
Heating and cooling
Approval
CE
Approval standard
PED 97/23/CE, EN 12266-1, Rate A
Body material
Cast iron EN GJL 250 (DIN GG25)
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection types
Wafer
Contain batteries
No
Description
VFY-WA PN10 DN25 230V CI/SS/EPDM 230V
Diameter [mm]
25 mm
Diameter [mm] [Max]
25 mm
Differential pressure range [bar] [Max]
16 bar
EU RoHS compliance
Out of scope
Flanges material
Cast iron EN GJL 250 (DIN GG25)
Frequency [Hz]
50/60
Function
On/off
Gear flange type
F05
Grade of enclosure
IP66
Kvs values [m=C2=B3/h]
40 m=C2=B3/h
Label product
Yes
Leakage rate [% Kvs]
Leakage rate A
Length [mm]
32 mm
Media pH [Max]
10
Media pH [Min]
7
Media temperature [=C2=B0C] [Max]
130 =C2=B0C
Media temperature [=C2=B0C] [Min]
-10 =C2=B0C
Medium alternative
Glycolic water up to 50%
Medium alternative 2
Circulation water
Mounting orientation
except cap down
Number of ports
2
Operating torque [Nm]
20 N-m
Operation type
Electric actuator
Permissible media
District heating/cooling circulation water
Position feedback
no
Power consumption [W]
15 W
Pressure class
PN 10
Pressure nominal [bar]
16 bar
Product group
Butterfly valves
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Rotation angle [=C2=B0]
90 =C2=B0
Safety function
No
SCIP dossier no.
9fa32728-1915-421d-86bc-7b5cdc83b5fe
Stem sealing material
Nitrile/Viton/Zinc coated S. + PTFE
Storage temperature [=C2=B0C] [Min]
-10 =C2=B0C
Supply voltage [V] AC
230 V
Type
VFY-WA
UK RoHS compliance
Out of scope
Valve body material
Cast iron EN GJL 250 (DIN GG25)
Valve disc material
Stainless Steel
Valve liner material
EPDM
Valve size
DN 25
Valve stem material
Stainless steel AISI 420
Valve type
Concentric Design
082G7381
Electric actuator AMB-Y, ER20, Supply voltage [V] AC: 230, 20 N-m
