084B8534

Part Number: 084B8534
084B8534
Manufacturer
Danfoss
Part number
084B8534
Category

Product Information

Extended Description

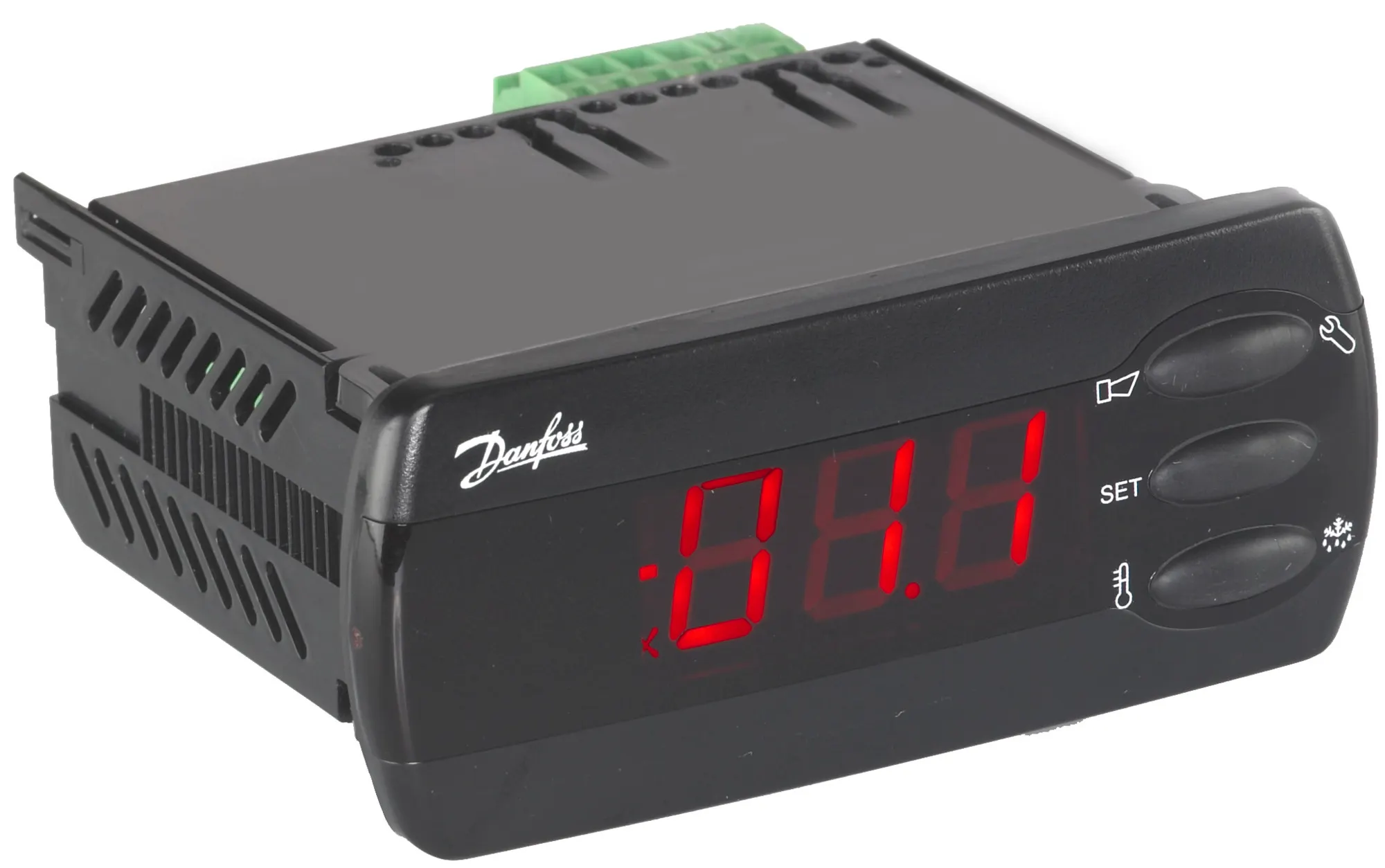

084B8534 Danfoss: Function: Temp, Multi appli., 4 relays, Supply voltage [V] AC: 115, Communication type: Optional MODBUS; Optional LON, Packing format: Multi pack, Quantity per packing format: 20
Gross weight
0.262 Kilogram
Net weight
0.211 Kilogram
Volume
0.47 Liter
EAN
5702428091350
Application area
Refrigeration control
Approval
C-TICK,CE,EAC,cURus
CE evaluated
Yes
China RoHS compliance
Out of scope
Communication type
Optional LON,Optional MODBUS
Controller type
Refrig. Controller (Temp)
Display on front
Yes
EEE category
5 small equipment (any external dimension 50 cm)
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Frequency [Hz]
50/60 Hz
Function
Temp, Multi appli., 4 relays
In scope of WEEE
Yes
Number of Compressors max.
2 pc
Number of Evaporators max.
1 pc
Other RoHS documentation
EAEU RoHS
Packing format
Multi pack
Power consumption [VA]
2.5 VA
Product accessories
Electron. control accessories
Product group
Evaporator and room control
Product Name Description
Refrig appliance control (TXV)
Quantity per packing format
20 pc
REACH Candidate List substances
No
Serviceable
No
Supply voltage [V] AC
115 V
Temp. sensor support
NTC-M2020,PTC 1000,Pt 1000
Type
AK-CC 210
UK RoHS compliance
Out of scope
UL evaluated
Yes
084B8562
Electron. control accessories, EKA 163A, Display, Universal, EKC Controllers
084B8563
Electron. control accessories, EKA 164A, Display, Universal settings, EKC Controllers
084B8564
Electron. control accessories, EKA 178A, MODBUS Module, Data comm., EKC Controllers
084B8565
Electron. control accessories, EKA 179A, LON-module, RS485, EKC 204; EKC 202
084B8567
Electron. control accessories, EKA 182A, Copying Key, EKC-EKC, EKC 102; EKC 204; EKC 202
084B8584
Electron. control accessories, Mounting kit, Accessory, for EKA display, EKA
084B8586
Electron. control accessories, Accessorie Bag, 6 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8587
Electron. control accessories, Accessorie Bag, 2 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8588
Electron. control accessories, Accessorie Bag, 3 Pol Terminal, 30 pcs, EKC 100; EKC 200
084B8590
Electron. control accessories, Accessorie Bag, 7 Pol Terminal, 30 pcs, EKC 100; EKC 200
