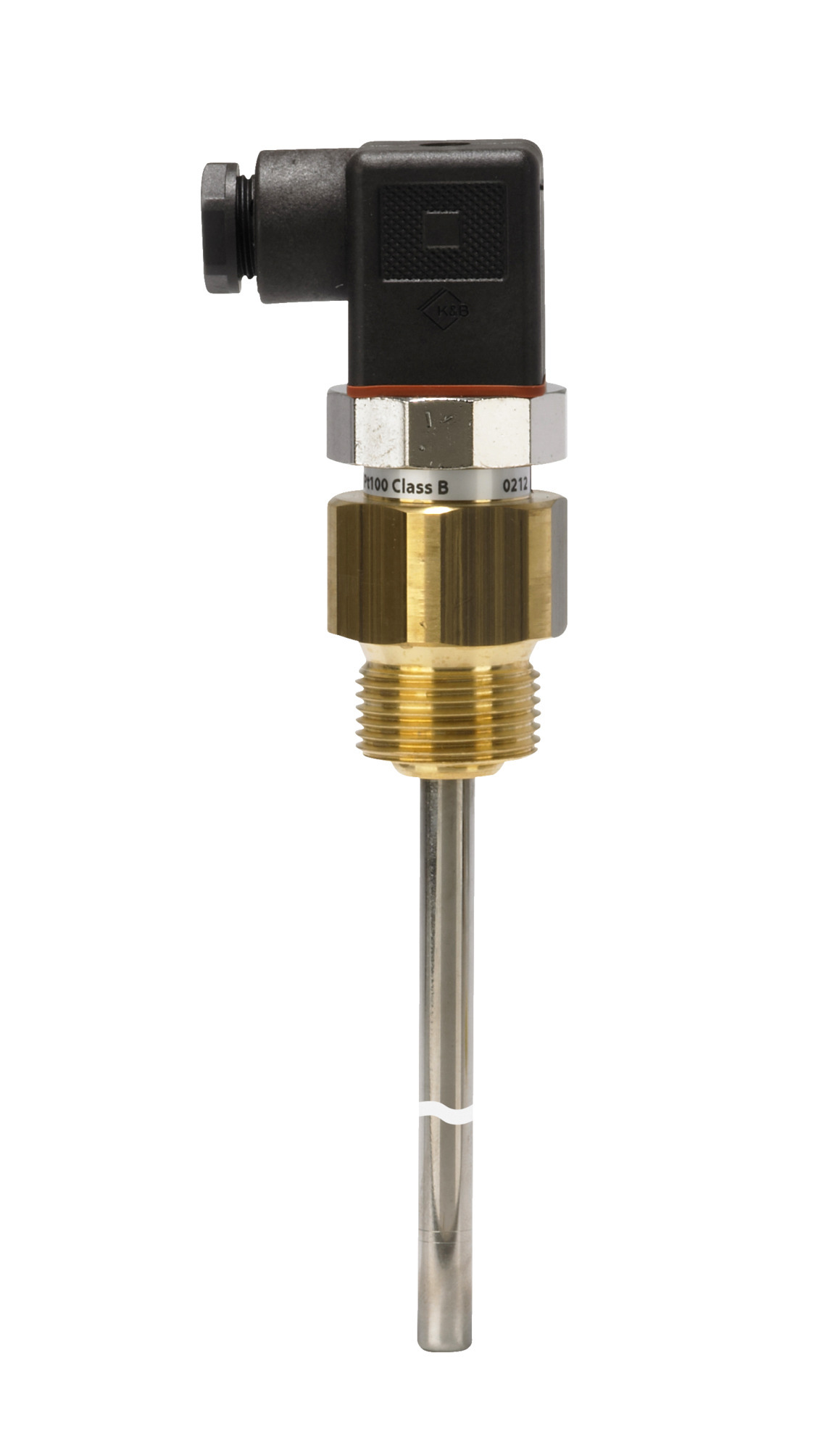

084Z3071

Part Number: 084Z3071
084Z3071
Manufacturer
Danfoss
Part number
084Z3071
Category

Product Information

Extended Description

084Z3071 Danfoss: Temperature range [=C2=B0C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Angular connector, Electrical connection size: Pg 9
Gross weight
0.32 Kilogram
Net weight
0.312 Kilogram
Volume
0.488 Liter
EAN
5702423223534
Ambient temperature max. [=C2=B0C]
125 =C2=B0C
Ambient temperature max. [=C2=B0F]
257 =C2=B0F
CE evaluated
Yes
China RoHS compliance
Yes exceed limitations
Connection material
Brass
Connection standard
ISO 228
Connection type
G
Contain batteries
No
EEE category
5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female
Male and Female
Electrical connection
Angular connector
Electrical connection size
Pg 9
Electrical connection standard
EN 175301-803-A
Enclosure rating IP
IP65
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(b),6(c),7(a),7(c)-I
In scope of WEEE
Yes
Insertion length [in] [max]
9.4 in
Insertion length [in] [min]
8.9 in
Insertion length [mm] [max]
240 mm
Insertion length [mm] [min]
225 mm
Insertion type
Variable
Number of terminals [pcs]
3 pc
Output signal
Ohm
Packing format
Multi pack
Process connection Male/Female
Male
Process connection material
Brass
Process connection size
3/4
Process connection standard
ISO 228-1-A
Process connection type
G
Product group
Sensors
Product Name Description
Temperature sensor
Protection tube diameter [in]
0.315 in
Protection tube diameter [mm]
8 mm
Protection tube material
AISI 316 Ti
Quantity per packing format
20 pc
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
7e8c0ff3-1e7a-4680-b92c-bfbffbb08416
Sensor elem. resistance [Ohm]
100
Sensor element [pc]
1 pc
Sensor element standard
EN 60751
Sensor element tolerance
Class B
Sensor element type
Pt
Sensor Insert
Fixed
Temperature range [=C2=B0C] [max]
200 =C2=B0C
Temperature range [=C2=B0C] [min]
-50 =C2=B0C
Temperature range [=C2=B0F] [max]
392 =C2=B0F
Temperature range [=C2=B0F] [min]
-58 =C2=B0F
Type
MBT 5310
Type designation
MBT 5310-00-240-030
UK RoHS compliance
Yes with exemptions
UK RoHS exemption clause
12,15,18,19,21
Wires [pcs]
2 pc
084Z4364
Accessories, sensors, Electrical connector
Temperature sensor, type MBT 5310 Danfoss EU-UK 084R1019.04 DEMKO 12CA69359 Pressure & Temperature Sensors Danfoss MD 084R1022.01 Danfoss MD 087R0017.01 BV SMS.W.II-2179-C.0 ABS 20-1993817-PDA BV 06512-F1 BV DNV GL TAA00001BE Rev. 1 KR DLN 34014-AE002 Temperature sensor MBT 5310, Pg 9,G 3/4 MBT 5310 MBT 5310
