136H2168

Part Number: 136H2168
136H2168
Manufacturer
Danfoss
Part number
136H2168
Category

Product Information

Extended Description

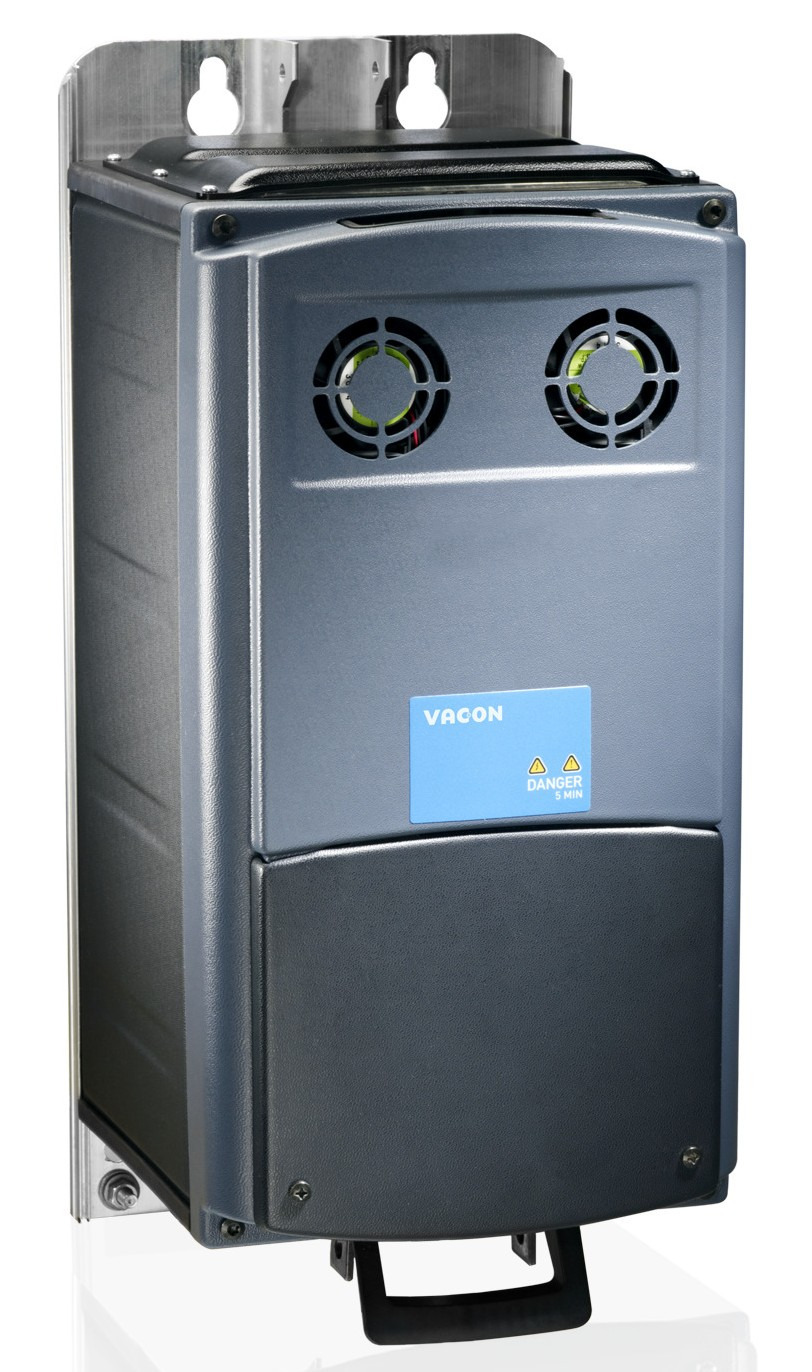

136H2168 Danfoss: NXP02615-A0N0NPV-A1AF000000+FNP02V182+FL23+APAUF100
Gross weight
41 kg
Net weight
40 kg
Volume
0 l
EAN
5710108686802
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXP : NXP Frequency Converter
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
P : LiquidCooled w. nickel element
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
0261 : 261 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
N : no EMC protection
Brake Chopper
0 : No Brake
Electrical Modification
N : 6-puls No choke for Spare unit
Card Modifications
V- : DirectConn. w Varnished Boards
Shipping Package
+GSCB : Cardboard box as Shipping pack
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
A1 : 6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B
AF : STO, ATEX therm
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
00 : No board
Firmware language package
+FL23 : UK,NL,DE,FR,ITWestEurII
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02V182 : System fw NXP ; freezed V182
Software license
NONE : no software license
Application
+APAUF100 : Appl sw AUF100; NXP, NXS, NXI
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
NONE : no marine approval
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH05 : Frame 05 liquid cooled
Power rating
132 : 132 kW/200 HP
Sub family identification
NONE : Normal customer ordered
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DP-026150
Typecode Part 2
-000030707
Salestext
CH0502615-0N
Modelcode01
NXP02615-A0N0NPV-
Modelcode02
A1AF000000
Modelcode03
+FNP02V182+FL23
Modelcode04
+APAUF100
Calculated Net Weight [kg]
40
Calculated Gross Weight [kg]
41
Motor Power Low Overload [kW]
132
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
246X553X264
Continuous Current (NO) [A]
261
Continuous Current (HO) [A]
-
ATEX Marking 1
ATEX: II (2) GD
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stockcode part 1
7DW-026150-1175ZK
Stock Code
7DP-026150
check if complete
OK
Calculated Net Weight
40
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
X.A.I.003
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1636
M6x12 ISO7380 Z4-1 TX ZN
181B1635
M10 Sesko SFS 3738 KP 250
181B1634
M10 Spring washer DIN 679
181B1633
M4x8 DIN 84 PA 1000pcs
181B1632
M6x14 DIN 7985 Z4-1 TX ZN
181B1631
M8 Spring washer DIN 6796
181B1630
M5x12 DIN 7985 Z4-1 TX ZN
181B0325
OPT-E3-V:PROFIBUS DP
181B1930
OPT-A1-V+DNOT:6DI,DO,2AI,1AO,+10Vr,+24V
181B0586
OPT-E7-V:DeviceNet
181B0287
OPT-A1-V:6DI,DO,2AI,1AO,+10Vr,+24V
181B0761
OPT-EC-V:EtherCAT
181B3287
OPT-EA-V:Advanced 2-port ethernet
181B1468
OPT-A2-V+DNOT:2RO(NO/NC)
181B1469
OPT-A4-V+DLES:3DI (Enc.RS422), +5V/+15V
181B1470
OPT-A5-V+DLES:3DI(Enc.10-24V),15/24Vout
181B1471
OPT-AN-V+DNOT:6DI,2AI,2AO,10/-10Vref,24V
