137L0707

Part Number: 137L0707
137L0707
Manufacturer
Danfoss
Part number
137L0707
Category

Product Information

Extended Description

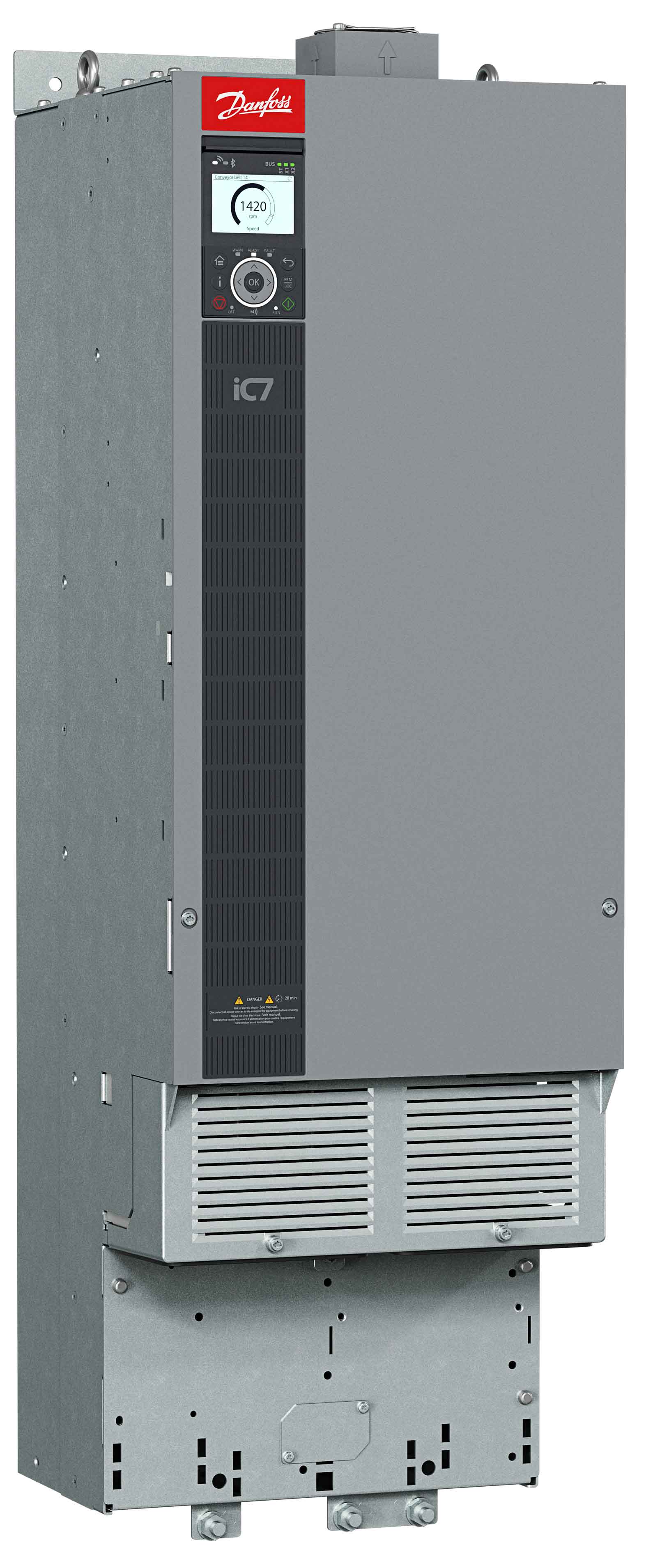

137L0707 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-480AE20F3+AGCX+BAIP+BDBA+BEF1+BF20+DAAUIP20/Open Type, Frame: FA103~, 380-500 V AC,480 AEMC category: C3 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROEtherNet/IP OS7IPFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
124.87 kg
Net weight
108.8 kg
Volume
0 l
EAN
5715253477275
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-480AE20F3
Typecode Part 2
-000118200
Calculated Gross Weight [kg]
124.91
Calculated Net Weight [kg]
108.8
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-480A : 480 A
Power rating
250 : 250 kW/350 hp
Protection rating
E20 : IP20/Open Type
EMC category
F3 : C3 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJXX : None
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAIP : EtherNet/IP OS7IP
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FA10 : FA10
Modelcode01
IC7-60FA3N05-480AE20F3
Modelcode02
+AGCX
Modelcode03
+BAIP+BDBA
Modelcode04
+BEF1+BF20
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.83%
Maximum Power Loss LO [W]
5123
Enclosure rating
IP20 / OPEN TYPE
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
462/439A
Short circuit current rating
100kA
Ambient temp. high overload
45=C2=B0C/113=C2=B0F
Ambient temp. normal overload
40=C2=B0C/104=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
250KW(400V)/350HP(460V)
Typical motor power PH (150%)
200KW(400V)/300HP(460V)
Continous current IL (1/10min)
480/456A
Continous current IH (1/10min)
385/364A
Continous current IH (1/5min)
302/302A
Main unit Width
350
Main unit Height
1122
Main unit Depth
370
Product View (Switch)
GLBL : Global (Standard)
176F3434
Disconnect 600A 690V
176F6647
Rectifier SCR/Diode 700A 1600V
176F8335
Fuse ultra fast 630AMP 700V
176F6447
Current sensor 500A
176F3165
Mixing Fan DC 40x28
176F3162
IGBT snubber cap 1000V 1.5uF wide mount
176F3157
Current scaling board 5.10 ohm
176F6692
tool, capacitor removal/installation
176F3972
Wire assy PwrBrd-DC CBL5 Fx10
176F3981
Wire assy PwrBrd-inrush CBL8 Fx09
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
