137L3073

Part Number: 137L3073
137L3073
Manufacturer
Danfoss
Part number
137L3073
Category

Product Information

Extended Description

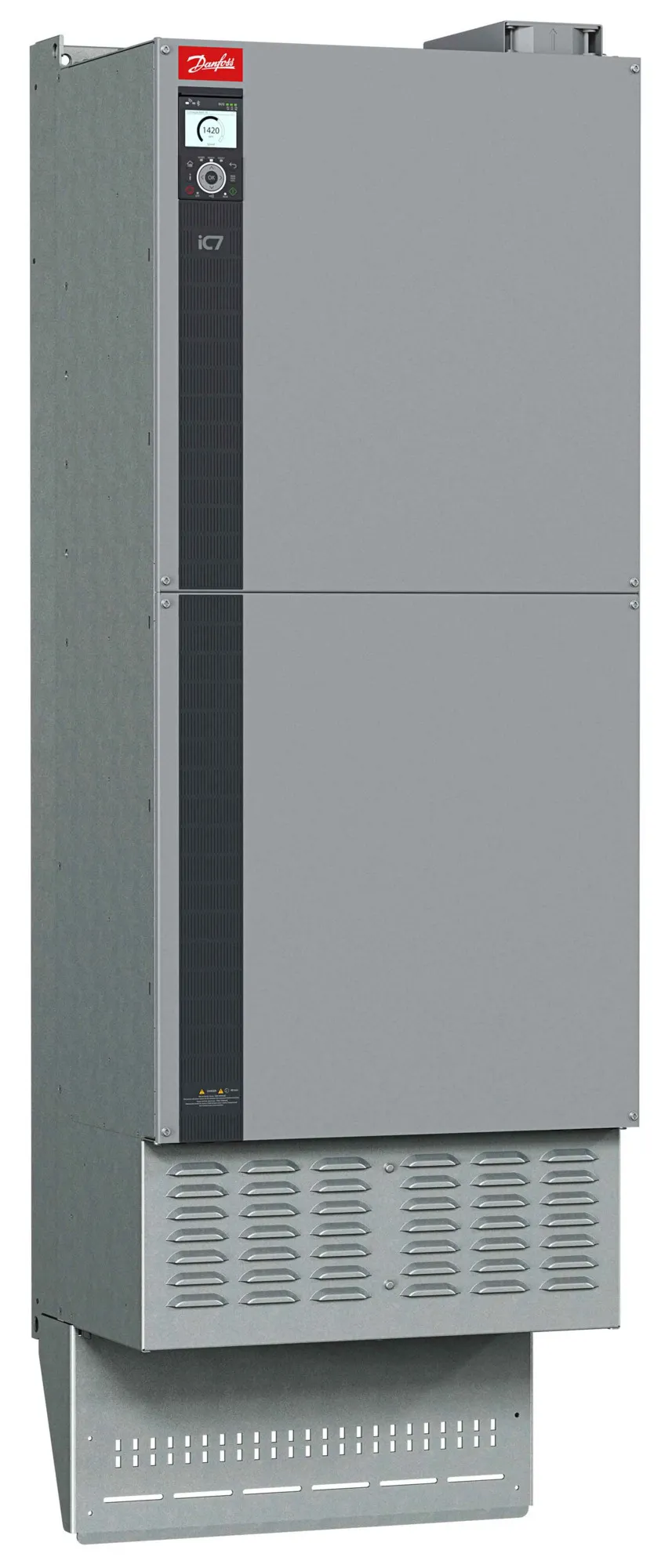

137L3073 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-1120E20F3+AGCX+AJFX+APHS+BAMT+BDBA+BEF1+BF20+DAAUIP20/Open Type, Frame: FA123~, 380-500 V AC,1120 AEMC category: C3 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROModbus TCP OS7MTFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
307.57 kg
Net weight
266.5 kg
Volume
0 l
EAN
5715253504124
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-1120E20F3
Typecode Part 2
-000121011
Calculated Gross Weight [kg]
307.61
Calculated Net Weight [kg]
266.5
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-1120 : 1120 A
Power rating
630 : 630 kW/900 hp
Protection rating
E20 : IP20/Open Type
EMC category
F3 : C3 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJFX : AC fuses
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APHS : Yes
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FA12 : FA12
Modelcode01
IC7-60FA3N05-1120E20F3
Modelcode02
+AGCX+AJFX
Modelcode03
+APHS+BAMT+BDBA
Modelcode04
+BEF1+BF20
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.82%
Maximum Power Loss LO [W]
13354
Enclosure rating
IP20 / OPEN TYPE
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
1078/990A
Short circuit current rating
100kA
Ambient temp. high overload
45=C2=B0C/113=C2=B0F
Ambient temp. normal overload
40=C2=B0C/104=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
630KW(400V)/900HP(460V)
Typical motor power PH (150%)
560KW(400V)/750HP(460V)
Continous current IL (1/10min)
1120/1028A
Continous current IH (1/10min)
1000/896A
Continous current IH (1/5min)
880/784A
Main unit Width
604
Main unit Height
1578
Main unit Depth
482
Product View (Switch)
GLBL : Global (Standard)
176F3427
IGBT snubber cap 1250V 1.0uF wide mount
176F6660
Busbar, current sensor, E2h, E4h, Fx12
176F6672
INSUL,PLAS,PC,GD,PCA,SUPPORT,P4001
176F6689
Busbar terminal, E1h=E2=80=93E4h, Fx11-12
176F6686
Terminal suppt mains, motor E1h=E2=80=93E4h
176F6683
Busbar/insulator set 500V E2h,E4h,Fx12
176F6677
Insul, plastic, active inrush, E1h=E2=80=93E4h
176F6676
Busbar AC input-inrush PCA E2h,E3h, Fx12
176F6674
Busbar, IGBT AC output E2h, E4h, Fx12
176F6636
Fan 120X38 48VDC
176F4048
In-bottom/out-top cooling kit,FA12
176F4058
In-back/out-back cooling kit,FA12
176F4060
In-bottom/out-back cooling kit,FA12
176F4062
In-back/out-top cooling kit,FA12
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
130R1090
DrivePro ExWarr Onsite PG10 24 Months
130R1095
DrivePro ExWarr Onsite PG10 54 Months
130R1091
DrivePro ExWarr Onsite PG10 30 Months
130R1096
DrivePro ExWarr Onsite PG10 60 Months
130R1074
DrivePro ExWarr Onsite PG08 48 Months
130R1073
DrivePro ExWarr Onsite PG08 42 Months
130R1075
DrivePro ExWarr Onsite PG08 54 Months
130R1076
DrivePro ExWarr Onsite PG08 60 Months
130R1092
DrivePro ExWarr Onsite PG10 36 Months
130R1093
DrivePro ExWarr Onsite PG10 42 Months
Connecting to iC7 Series Remotely via Mobile Network iC7 MyDrive Insight Industry Application for iC7-Automation MyDrive Insight Logic Feature Simulation with iC7 Virtual Industry Application Guide=20 iC7-Automation Selection Guide iC7-Automation Frequency Converters Cable kit for Ethernet port X1/X2, FA09-FA12 Fieldbus EMC Plate for FA09-FA12 Functional Extension Options - Installation KC R-R-Ddk-IC7 Danfoss EU-UK 00774231.A5 T=C3=BCV Z10 082282 0011 Rev.02 Danfoss MD 00779903 A2 ACMA N1297 iC7 Frequency Converter FA12 - left MCAD Control Panel Surface Mounting Kit MCAD Control Panel 2.8 OPX20 MCAD_IC7FC_FA12 MCAD Control Panel Flush Mounting Kit iC7-Automation Drive Software
