137N8325

Part Number: 137N8325
137N8325
Manufacturer
Danfoss
Part number
137N8325
Category

Product Information

Extended Description

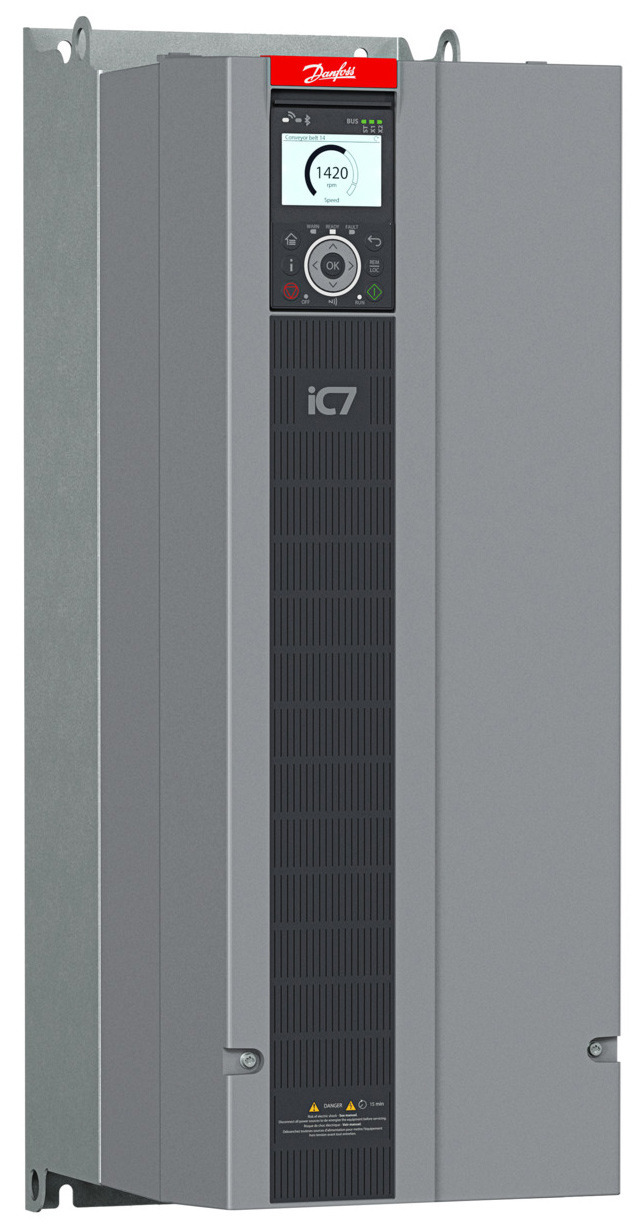

137N8325 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-147AE20F2+AGCX+BAMT+BDBA+BEF1+BF20+DAAUIP20/Open Type, Frame: FA083~, 380-500 V AC,147 AEMC category: C2 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROModbus TCP OS7MTFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
59.35 kg
Net weight
52.74 kg
Volume
0 l
EAN
5715253664569
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-147AE20F2
Typecode Part 2
-000136805
Calculated Gross Weight [kg]
59.35
Calculated Net Weight [kg]
52.74
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-147A : 147 A
Power rating
75K : 75 kW/100 hp
Protection rating
E20 : IP20/Open Type
EMC category
F2 : C2 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJXX : None
DC terminals
+ALXX : None
Touch protection
+AMXX : None
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAX0 : None
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCX0 : None
Option slot D
+CDX0 : None
Option Slot E
+CEX0 : None
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FA08 : FA08
Modelcode01
IC7-60FA3N05-147AE20F2
Modelcode02
+AGCX
Modelcode03
+BAMT+BDBA
Modelcode04
+BEF1+BF20
Modelcode05
+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.56%
Maximum Power Loss LO [W]
1682
Enclosure rating
IP20 / OPEN TYPE
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
140/122A
Short circuit current rating
100kA
Ambient temp. normal overload
45=C2=B0C/113=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
75KW(400V)/100HP(460V)
Typical motor power PH (150%)
75KW(400V)/100HP(460V)
Continous current IL (1/10min)
147/133A
Continous current IH (1/10min)
147/133A
Continous current IH (1/5min)
106/96A
Main unit Width
255
Main unit Height
743
Main unit Depth
368
Product View (Switch)
GLBL : Global (Standard)
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2083
Control panel surface mounting kit
136B2084
Control panel cable 2.5m
136B3093
STO Jumper clip
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B2082
Control panel flush mounting kit
136B2937
Main fan FA/FK08
136B3082
Internal fan FA/FK08
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N6506
OF7P2-S-AF-46-122A-060-05-T1-E20
132N6812
OF7P2-S-AF-40-139A-050-05-T1-E20
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
