137N9643

Part Number: 137N9643
137N9643
Manufacturer
Danfoss
Part number
137N9643
Category

Product Information

Extended Description

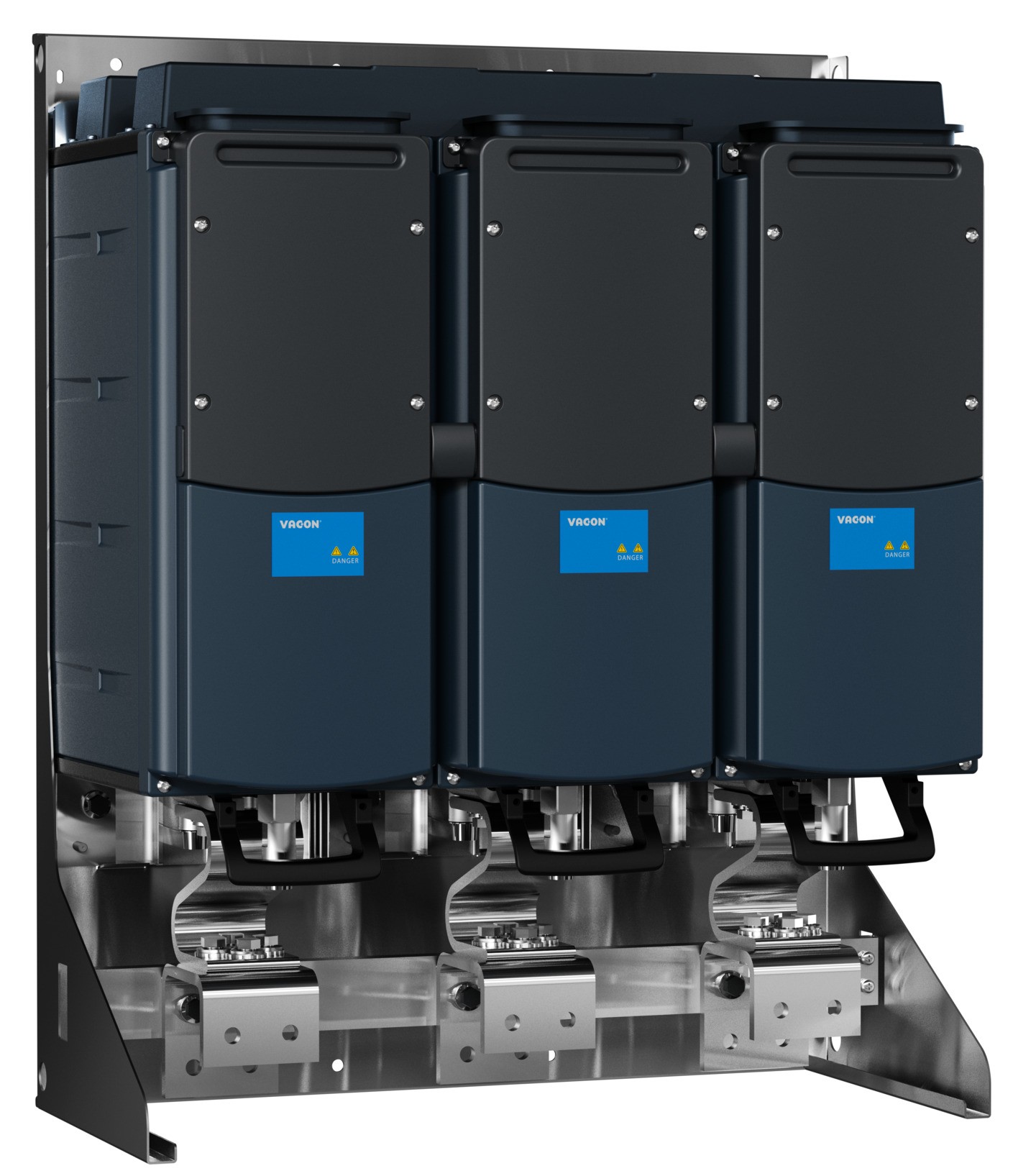

137N9643 Danfoss: NXA23005-A0T02WG-ANA20000E3+GSNT+GACS+SPXEVacon Active Front-End Unit380 =E2=80=93 500 Vac (465-800 Vdc), 2300 Amp,IP00Alpha-numeric displayIEC61800-3 for IT networksNo BrakeA Slot: 6DI,2AI,2AO,10/-10Vref,24VB Slot: 2RO(NO/NC)C Slot: No boardD Slot: No boardE Slot: PROFIBUS DPManual: EnglishFrame 64 liquid cooledOther options according to Model code
Gross weight
181 kg
Net weight
180 kg
Volume
0 l
EAN
5715253678085
Product View (Switch)
GLBL : Global (Standard)
Product Group
NXA : Active Front-End Unit
Customized Drive
+BM26 : Vacon Dark Grey NXP
Mechanical Modification
W : Liquid cooling
Mains voltage
5- : 380 =E2=80=93 500 Vac (465-800 Vdc)
Current
2300 : 2300 Amp
Control Keypad
A : Alpha-numeric display
Enclosure
0 : IP00
EMC emission levels
T : IEC61800-3 for IT networks
Brake Chopper
0 : No Brake
Electrical Modification
2 : AFE module w/o LCL
Card Modifications
G- : FiberConnection+Varnished PCB
Shipping Package
+GSNT : Without packaging
Warranty
+WT01 : Warranty 12/18 months
Gland Plate Option
+QGNO : No conduit plate
Option Slot A
AN : 6DI,2AI,2AO,10/-10Vref,24V
Option Slot B
A2 : 2RO(NO/NC)
Option Slot C
00 : No board
Option Slot D
00 : No board
Option Slot E
E3 : PROFIBUS DP
Firmware language package
+FL22 : UK,FR,IT,ES,PT;WestEur
Documentation Level
+DPAP : Paper manuals
Documentation Lang. Preference
+DLUK : English
System Firmware
+FNP02 : System software NXP
Software license
NONE : no software license
Application
+ARFIFF02 : AFE application NXA,NXI,NXP
Parameter Set
NONE : none
Motor Parameter Default
+LS50 : Default Motor frequency 50HZ
Labeling options
+LPC1 : no additional labels
Special BoM structure
+SPC0 : Standard BoM Configuration
CE Approval
+GACE : CE Approval
UL Approval
+GAUL : UL approval
RCM Approval
+GACT
Marine approval
+GACS : China Classification Society
KC Approval
+GAKC : Korean Approval
Ukrainian Approval
+GAUA : Ukrainian Approval
EAC Approval
+GAEA : EAC Approval
Region
-R00 : International (-R00)
Frame Size
CH64 : Frame 64 liquid cooled
Sub family identification
+SPXE : Sub-config for ExtDeliPartner
Customer specific power variat
NONE : Normal power rating
Typecode Part 1
7DA-230050
Typecode Part 2
-000139405
Salestext
CH6423005-0T
Modelcode01
NXA23005-A0T02WG-
Modelcode02
ANA20000E3
Modelcode04
+GSNT
Modelcode05
+GACS
Modelcode06
+SPXE
Calculated Net Weight [kg]
180
Calculated Gross Weight [kg]
181
Motor Power Low Overload [kW]
1409
Motor Power High Overload [kW]
-
Dimensions WxHxD [mm]
746X923X375
Continuous Current (NO) [A]
2091
Continuous Current (HO) [A]
-
Product Catalog
NO_VIEW : NO VIEW
Prefix VXSNXLM
7
Platform VXSNXLM
D
Stock Code
7DA-230050
check if complete
OK
Help Counter
1
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Recommended Plant
ERR01
181B1562
Control box assembly NX light blue
181B1639
"Terminal connector R-, R+"
181B1638
Terminal connector 23-21
181B1591
Vacon NXP panel 9-buttons overlay
181B1339
M6x16 DIN 7985 Z4-1 TX ZN 4.8 400pcs
181B1338
M6x25 DIN 7985 Z4-1 TX ZN 8.8 300pcs
181B1328
Driver board NXW
181B1432
Earthing plate kit
181B1425
Door panel plate black
181B2005
DC link busbar kit minus CH64
