137U4031
Part Number: 137U4031
Product Information
Extended Description

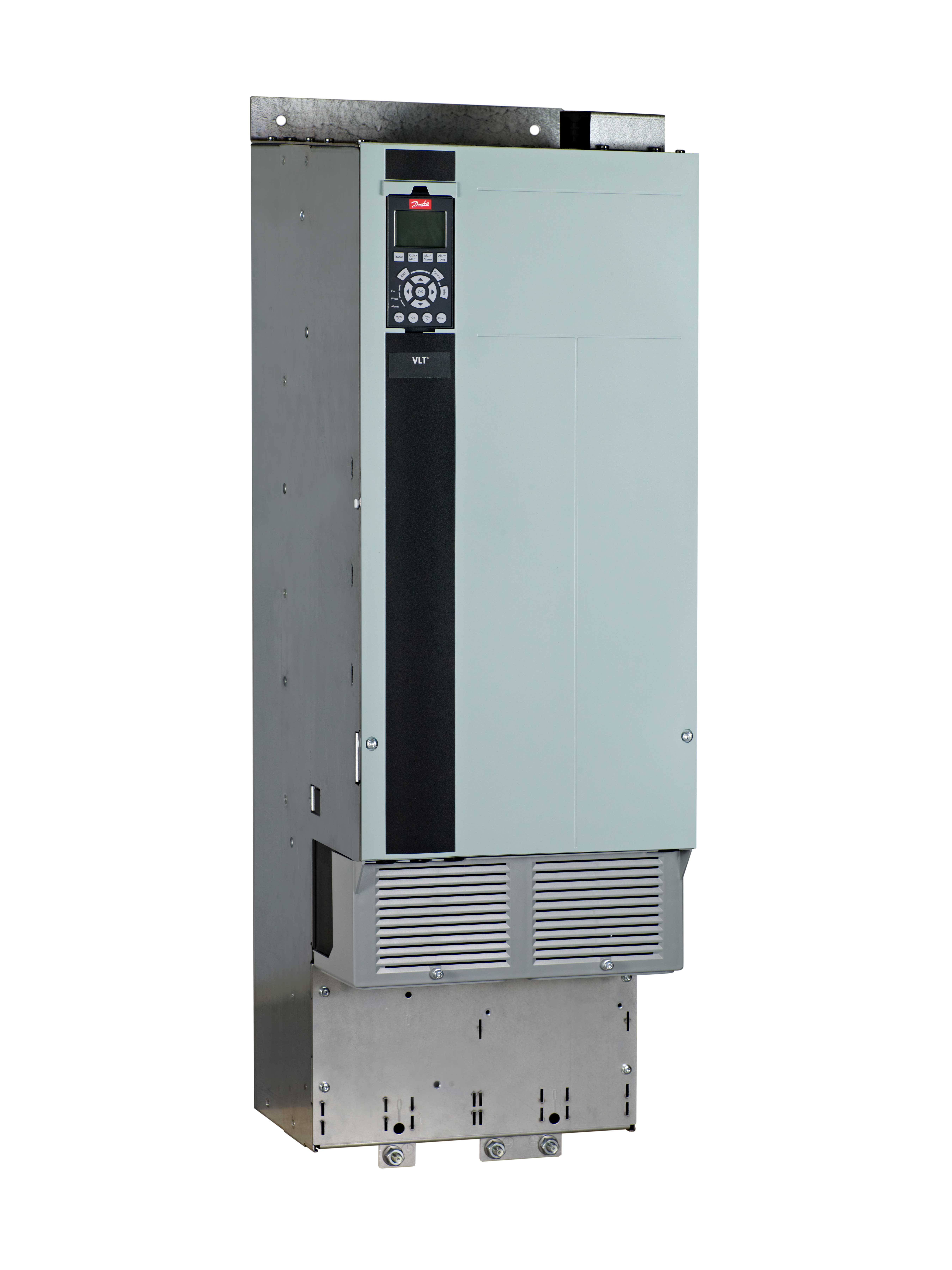

137U4031 Danfoss: Frequency converterFC-202N200T4E20H2XGCXXXLX1XXALBXCXRXXD1VLT=C2=AE AQUA Drive FC-202(N200) 200 KW / 300 HP, Three phase380 - 480 VAC, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionCondition Based Monitoring CBMFrame: D4HMCB-113 Ext. Relay Card, MCB-117 Real time clock optionPROFINET MCA 120, No B OptionOther options according to Model code
Gross weight
125.3 kg
Net weight
125 kg
Volume
0 l
EAN
5715253724348
Product View (Switch)
GLBL : Global (Standard)
Product Group
FC- : VLT=C2=AE AQUA Drive FC-
Series
202 : 202
Power Rating
N200 : (N200) 200 KW / 300 HP
Phase
T : Three phase
Mains Voltage
4 : 380 - 480 VAC
Enclosure
E20 : (E20) IP20 / Chassis
RFI Filter
H2 : RFI Filter
Brake - Safe Stop
X : No brake chopper
LCP
G : Graphical Loc. Cont. Panel
Coating PCB
C : Coated PCB
Mains Option
X : No Mains Option
Adaptation A
X : Standard Cable Entries
Adaptation B
X : No adaptation
Software Release
LX1X : Condition Based Monitoring CBM
Software Language Pack
X : Standard Language Pack
A Option
AL : PROFINET MCA 120
B Option
BX : No B Option
C0 Option MCO
CX : No C0 option
C1 Option
R : MCB-113 Ext. Relay Card
C Option Software
XX : No software option
D Option
D1 : MCB-117 Real time clock option
Frame Size
D4H : D4H
Typecode Part 1
FC-202N200T4E20H2XGC
Typecode Part 2
XXXLX1XXALBXCXRXXD1
Product Catalog
GLBL : Global (Standard)
Power 150% (HO) [KW]
160
Power 110% (NO) [KW]
200
Height [mm]
1122,0
Height w/ Regen/Loadshare [mm]
1268,0
Width w/ no C options [mm]
350,0
Depth [mm]
375,0
Depth with Option A/B [mm]
375,0
kVA
274
Power Loss NO [W]
4116
Power Loss HO [W]
3093
Continuous Current (NO) [A]
395
Intermittent Current (NO) [A]
435
Continuous Current (HO) [A]
315
Intermittent Current (HO) [A]
472
Calculated Gross Weight [kg]
125.3
Calculated Net Weight [kg]
125
ECCN EU
Y901
ECCN US
3A999.a
Plant from Orderline
B901
Vendor
ERR01 : Cannot Determine Vendor
Recommended Factory
ERR01 : Cannot Determine Vendor
Modelcode01
FC-202N200T4E20H2XGC
Modelcode02
XXXLX1XXALBXCXRXXD1
176F3548
Cover DC Link Coil Large Dh Frame
176F3540
Heatsink fan cover Dh Frames
176F3480
Power Terminal Cover IP20 D4h enclosure
176F4710
Repair Kit, NG D-Frame,T4/T5,160kW-315kW
176F3752
300A Current Sens. Conv. Kit - D2h / D4h
176F3329
Cable Power Card to Gate Drive D2h/D4h
176F3327
Cable Power Card to HF/RFI D2h/D4h
176F3325
Cable DC bus to Power Card D2h/D4h
176F3323
Cable Power Card to CT D2h/D4h
176F3321
Cable Power Card to Door Fan D2h/D4h
176F3527
kit,cooling,in bottom out back,d2h d4h
176F3628
Cooling Kit, in btm/out top, 1800mm D4h
176F3626
Cooling Kit, in back/out back, D4h
176F3655
Cooling Kit, in back/out back, SS, D4h
176F3649
Cooling Kit, in back/out back, D2h
176F3634
Cooling Kit, in back/out back, D4h
176F3630
Cooling Kit, in btm/out top, 2000mm, D4h
176F3410
Adapter Plate, D2h/D4h
130B1243
VLT=C2=AE Analog I/O Option MCB 109, coated
130B1218
VLT=C2=AE Ext. Cascade Contr. MCO 101, ctd
130R1153
DrivePro ExWarr Work Shop PG06 42 Month
130R1156
DrivePro ExWarr Work Shop PG06 60 Month
130R1152
DrivePro ExWarr Work Shop PG06 36 Month
130R1154
DrivePro ExWarr Work Shop PG06 48 Month
130R1155
DrivePro ExWarr Work Shop PG06 54 Month
130R1151
DrivePro ExWarr Work Shop PG06 30 Month
130R1150
DrivePro ExWarr Work Shop PG06 24 Month
130R1157
DrivePro ExWarr Work Shop PG06 66 Month
130R1158
DrivePro ExWarr Work Shop PG06 72 Month
130R1057
DrivePro ExWarr Onsite PG06 66 Months
Encoder-less Safety using DOLD Module
Marselisborg WWTP - English
MultiMaster Cascade Control AG
Submersible Pump Appl. for VLT=C2=AE FC 200
VLT drives with integrated CBM
VLT=C2=AE AQUA Drive Closed Loop - Sleep Mode
VLT=C2=AE AQUA Drive Master-Follower Operat.
VLT=C2=AE Drives Motor overload protection
VLT=C2=AE FC 200 Motor cont. run at low speed
VLT AQUA Drive FC 202 Selection Guide
Danfoss MD 00779152 B2
SASO KSA R-205899
UL E236048
UL E70524
PSL File Danfoss-24899b
PSL-File Danfoss-24800
Danfoss EU-UK 00730215 A10
Danfoss EU-UK 00730297 A6
PTB 14 ATEX 3009-A1
ODVA 10929.04
VLT_D4h_IP20
130B1164_Eplan
130B1107_E-plan
130B1264_Eplan
Wiring Schematic FC 110-400 kW D-frame
Remote_LCP_holder
130B1135_Eplan
130B1117_Eplan
MCAD FC A2 IP20 ABC
MCAD FC D4h 177r0340
VLT=C2=AE AQUA Drive Support File
VLT=C2=AE Drives EtherNet/IP EDS
VLT=C2=AE AQUA Drive Simulator
VLT=C2=AE Motion Control Tool MCT31
VLT=C2=AE EtherNet/IP Add-on Instructions
VLT=C2=AE Drives DeviceNet EDS
VLT=C2=AE MCA101 PROFIBUS GSD
VLT=C2=AE MCA120 PROFINET GSDML
VLT=C2=AE Drives PROFIBUS PCA Block
VLT=C2=AE Motion Control Tool MCT10
