137U7071

Part Number: 137U7071
137U7071
Manufacturer
Danfoss
Part number
137U7071
Category

Product Information

Extended Description

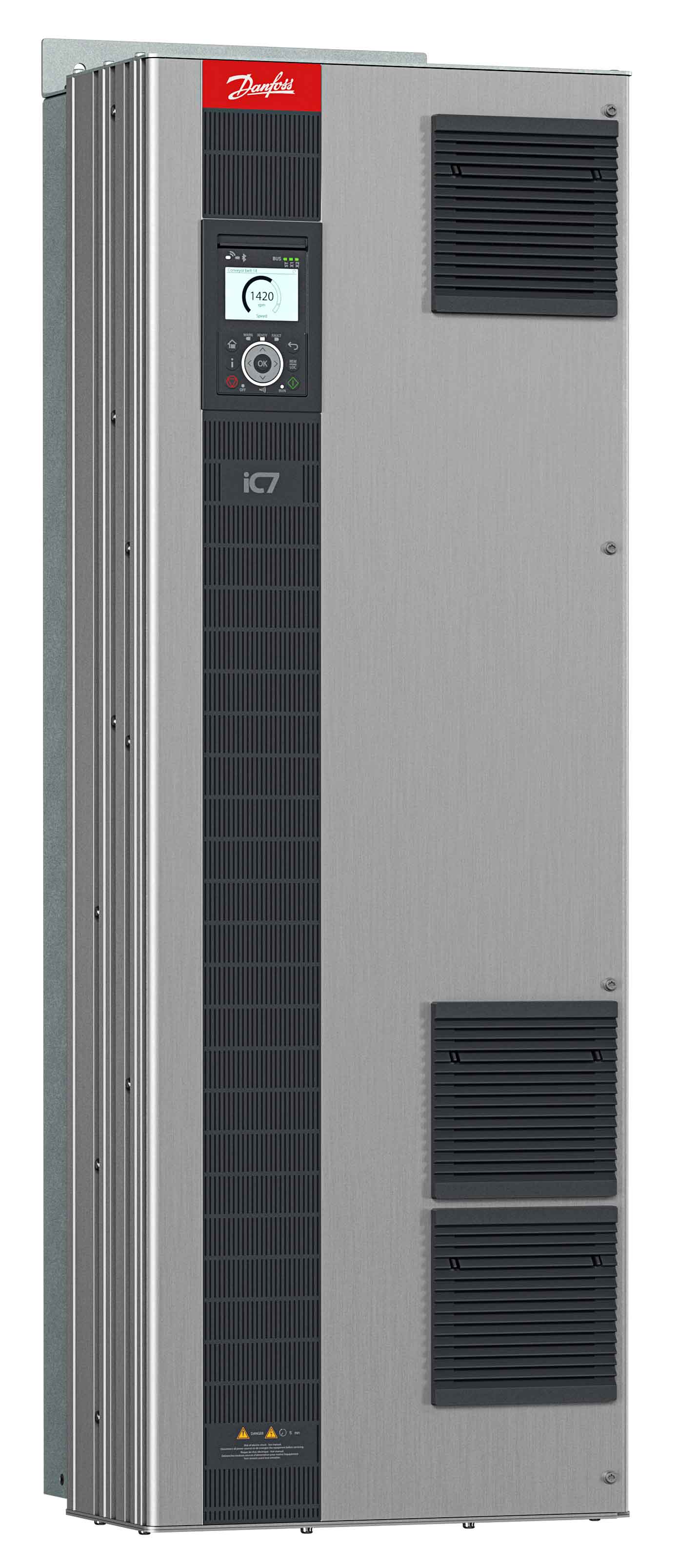

137U7071 Danfoss: iC7-AutomationFrequency converter,air-cooledIC7-60FA3N05-588AE54F2+AGCX+AJFX+AMMX+BAMT+BDBA+BEF1+BF20+CAM0+CCC0+CDC0+CER0+DAAUIP54/UL Type 12, Frame: FB10a3~, 380-500 V AC,588 AEMC category: C2 categoryControl Panel 2.8 OPX20Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xROModbus TCP OS7MTFunctional Safety: STO, not upgradableOther options according to model code
Gross weight
156.69 kg
Net weight
137.58 kg
Volume
0 l
EAN
5715253755694
Help Counter
1
Typecode Part 1
7FC-AUFA3N05-588AE54F2
Typecode Part 2
-000152399
Calculated Gross Weight [kg]
156.69
Calculated Net Weight [kg]
137.58
Vendor
ERR01 : Cannot Determine Vendor
ECCN EU
Y901
ECCN US
3A999.a
Product series
+DAAU : iC7-Automation
Product group
IC7-60 : iC7-60
Product category
FA : Frequency converter,air-cooled
Product type
3N : 3~
Mains voltage
05 : 380-500 V AC
Current rating
-588A : 588 A
Power rating
315 : 315 kW/450 hp
Protection rating
E54 : IP54/UL Type 12
EMC category
F2 : C2 category
Cable entry and EMC plate
+AAST : Standard plate
Integrated brake chopper
+ACXX : None
Extra environmental protection
+AGCX : Coated boards
Humidity protection device
+AHXX : None
Mains input device
+AJFX : AC fuses
DC terminals
+ALXX : None
Touch protection
+AMMX : Yes
Heat sink access panel
+APXX : None
Communication interface, X1/X2
+BAMT : Modbus TCP OS7MT
Standard I/O
+BDBA : 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety
+BEF1 : STO, not upgradable
Control panel
+BF20 : Control Panel 2.8 OPX20
Interface board
+BISR : MicroSD card reader and RTC
Option slot A
+CAM0 : Encoder/Resolver Option OC7M0
Option slot B
+CBXX : None, not upgradable
Option slot C
+CCC0 : General Purpose I/O OC7C0
Option slot D
+CDC0 : General Purpose I/O OC7C0
Option Slot E
+CER0 : Relay Option OC7R0
Product software ID
+ECXXX : Latest released version
Technical documentation
+EGIN : Installation guide
Integrated common-mode filter
+AIXX : None
Communication interface, X0
+BBEL : Ethernet port, no protocol
Customer specific application
+DBXX : None
Additional drive features 1
+DD1X : None
Additional drive features 2
+DE2X : None
Additional drive features 3
+DF3X : None
Additional drive features 4
+DG4X : None
Additional drive features 5
+DH5X : None
High speed enabled
+DI6X : No
Customization file package ID
+EAXXXXXX : No customization
Customer-specific label
+EJXX : None
Language package
+EL01 : Global
Product specific marine cert.
+VBXX : None
Frame designation
FB10A : FB10a
Modelcode01
IC7-60FA3N05-588AE54F2
Modelcode02
+AGCX+AJFX
Modelcode03
+AMMX+BAMT+BDBA
Modelcode04
+BEF1+BF20+CAM0+CCC0
Modelcode05
+CDC0+CER0+DAAU
Product Catalog
NO_VIEW : NO VIEW
Efficiency class-Relative loss
IE2 - 1.83%
Maximum Power Loss LO [W]
6348
Enclosure rating
IP54 / TYPE 12
Input frequency
50/60Hz
Output frequency
0-590Hz
Input current in Normal Overlo
566/501A
Short circuit current rating
100kA
Ambient temp. high overload
45=C2=B0C/113=C2=B0F
Ambient temp. normal overload
40=C2=B0C/104=C2=B0F
Input Voltage
3x380-500V
Typical motor power PL (110%)
315KW(400V)/450HP(460V)
Typical motor power PH (150%)
250KW(400V)/350HP(460V)
Continous current IL (1/10min)
588/520A
Continous current IH (1/10min)
480/456A
Continous current IH (1/5min)
385/364A
Main unit Width
420
Main unit Height
1232
Main unit Depth
378
Product View (Switch)
GLBL : Global (Standard)
176F3434
Disconnect 600A 690V
176F3353
Door filter,D1h-D8h,E1h-E4h,Fx09-12
176F6647
Rectifier SCR/Diode 700A 1600V
176F6447
Current sensor 500A
176F3174
Fuse 800A 700V Square Body
176F3169
Door fan IP54 DC 120X38 48VDC
176F3165
Mixing Fan DC 40x28
176F3162
IGBT snubber cap 1000V 1.5uF wide mount
176F3158
Current scaling board 4.22 ohm
176F6692
tool, capacitor removal/installation
176F4035
400mm Pedestal kit, FK10a/FB10a
136B1569
Encoder/Resolver Option OC7M0
136B2055
Blind Panel OPX00
136B2084
Control panel cable 2.5m
136B2085
Control panel cable 5 m
136B2086
Control panel cable 10 m
136B3128
Control Panel 2.8 OPX20
136B1567
Relay option OC7R0
136B1568
General Purpose IO OC7C0
132N6513
OF7P2-S-AF-46-291A-060-05-T1-E20
130R1167
DrivePro ExWarr Work Shop PG07 66 Month
130R1162
DrivePro ExWarr Work Shop PG07 36 Month
130R1164
DrivePro ExWarr Work Shop PG07 48 Month
130R1163
DrivePro ExWarr Work Shop PG07 42 Month
130R1165
DrivePro ExWarr Work Shop PG07 54 Month
130R1166
DrivePro ExWarr Work Shop PG07 60 Month
130R1168
DrivePro ExWarr Work Shop PG07 72 Month
130R1160
DrivePro ExWarr Work Shop PG07 24 Month
130R1161
DrivePro ExWarr Work Shop PG07 30 Month
130R1068
DrivePro ExWarr Onsite PG07 72 Months
