145G0341
Part Number: 145G0341
Product Information
Extended Description

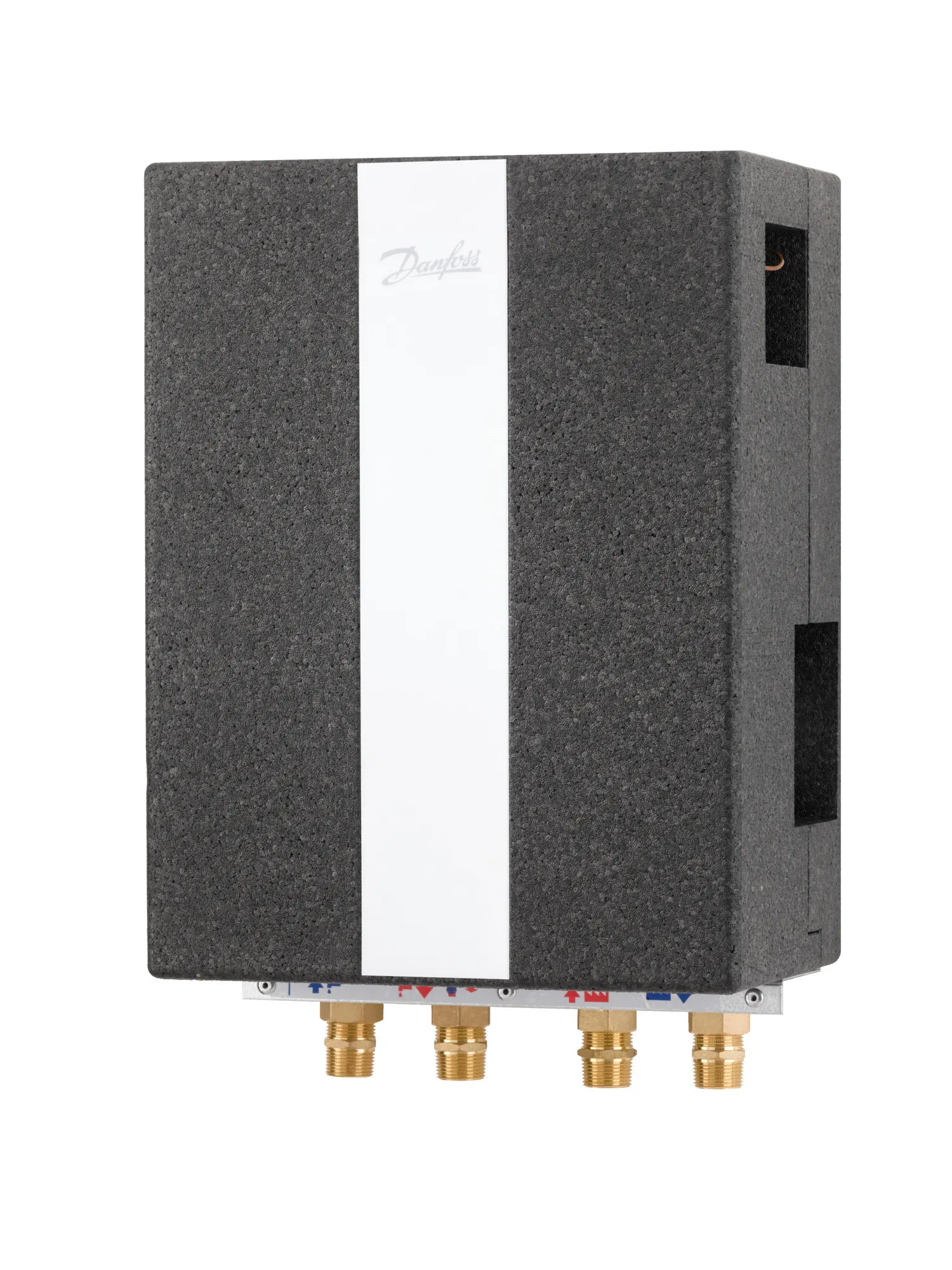

145G0341 Danfoss: Product Type: Akva Lux II, fully insulated, Type 3, 16 bar, 110 °C, PTC2+P
Gross weight
9.07 Kilogram
Net weight
7.87 Kilogram
Volume
34.44 Cubic decimeter
EAN
5702424636586
Application type
Instantaneous DHW
Capacity [kW]
62 kW
Contain batteries
No
Description
Akva Lux II Waterheater H+60 ISO
DHW Control type
Flow-thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H+-1 60
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3
Supply temperature construction [ËšC]
110 °C
Type
Akva Lux II, fully insulated
003L1011
Return temperature limiters, FJVR valves, DN 10, Angle
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
004U8232
Gaskets 3/4" EDPM (50pcs)
144B2238
PTC2+P-regulator, kvs 3, nut
145H5064
XB06H+-1-60_2_25_A_2G3/4 PL
004U8442
Circulation set incl. pipe, for mounting on site
004U8554
Safety valve set 10 bar, incl. pipes for extension
004U8663
Cover, white-lacquered stainless steel H 410 x W 310 x D 210mm
145H3744
Redan ball valve 3/4" E/I, 60mm w.gasket
