148B0082
Part Number: 148B0082
Product Information
Extended Description
148B0082 Danfoss: Inlet connection type: NPT, Outlet connection type: NPT
Gross weight
0.502 Kilogram
Net weight
0.39 Kilogram
Volume
1.183 Liter
EAN
5715162458457
Approval
EAC,LLC CDC TYSK,T=C3=9CV
Body material
Steel
China RoHS compliance
Out of scope
Colour Paint
Cr3 / TLP
Connection material
Steel
Connection standard
ANSI/ASME B1.20.1
Contain batteries
No
Direction
Angleway
Equipment
Cap
EU RoHS compliance
Out of scope
Flow direction
Bi-flow
Fluid Group
1
Identical product
148B3746
Inlet connection size [in]
1/4
Inlet connection type
NPT
Inlet Internal/External
External
Max. Working Pressure [bar]
140 bar
Max. Working Pressure [psig]
2030 psig
Outlet connection size [in]
1/4
Outlet connection type
NPT
Outlet Internal/External
Internal
Packing format
Multi pack
PED category
Art. 4, par. 3
Product accessories
SNV accessories

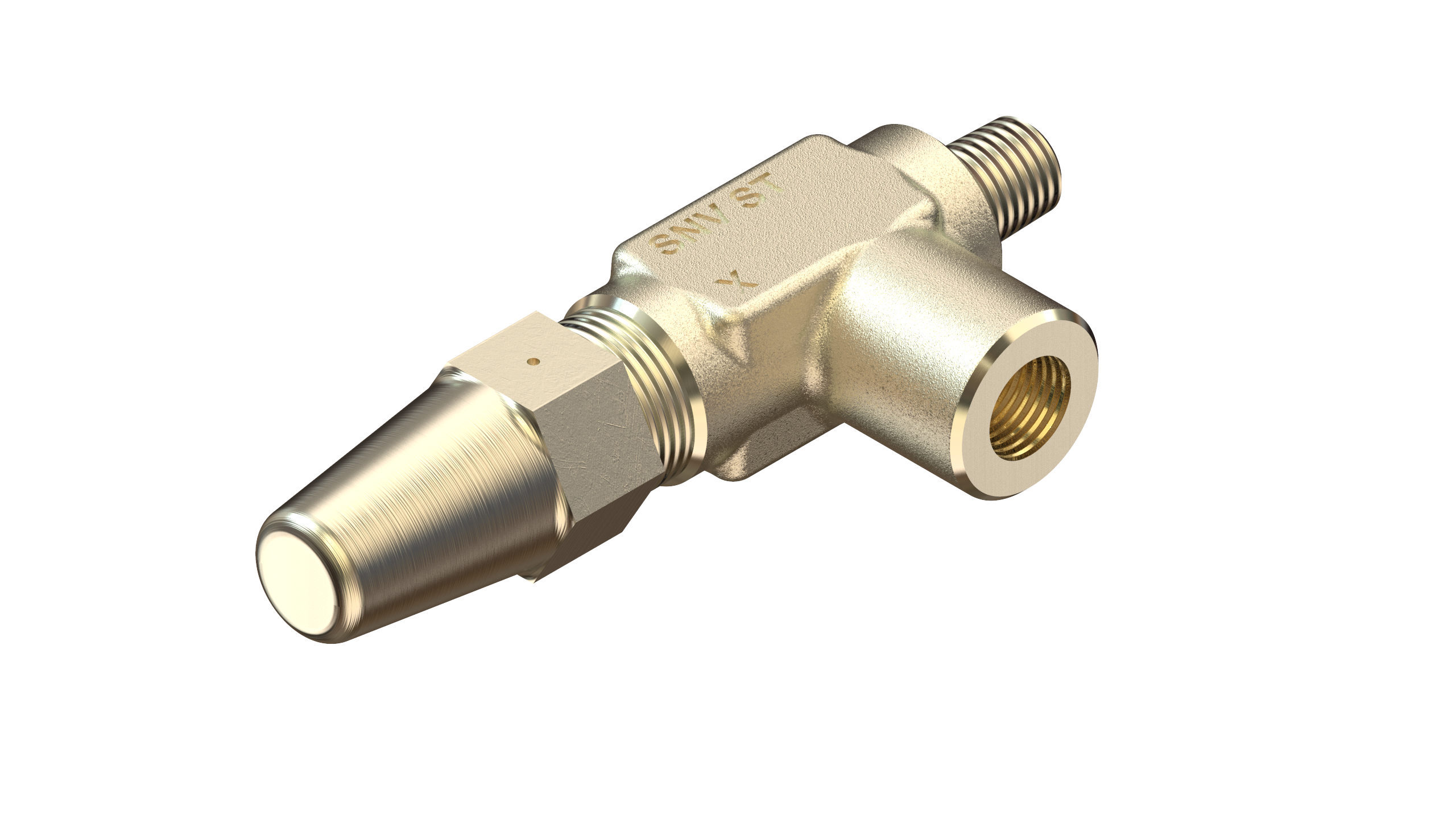

Product description
Stop Needle Valve
Product group
Shut-off and regulating valves
Product Name Description
Gauge valve
Quantity per packing format
12 pc
Refrigerants
R113,R114,R1150,R1233zd(E),R1234yf,R1234ze(E),R125,R1270,R1336mzz(Z),R134a,R152a,R170,R22,R227ea,R23,R236fa,R245fa,R290,R32,R401A,R402A,R402B,R404A,R407A,R407B,R407C,R407F,R407H,R408A,R409A,R410A,R413A,R417A,R421A,R422A,R422B,R422D,R427A,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R502,R503,R507A,R512A,R513A,R513B,R515A,R515B,R516A,R600,R600a,R717,R744,RE170,R508B
Serviceable
SNV spare parts
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
SNV-ST
UK RoHS compliance
Out of scope
Valve version
Standard version
Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives]
SNV Gauge Valves for India
Gauge valve, type SNV-ST and SNV-SS
Guage valves, SNV-ST, SNV-SS
Danfoss MD 033F0691.AI
Danfoss MD 033F1196.02
Gauge valve, SNV-ST 148B4229
