148B5237

Part Number: 148B5237
148B5237
Manufacturer
Danfoss
Part number
148B5237
Category

Product Information

Extended Description

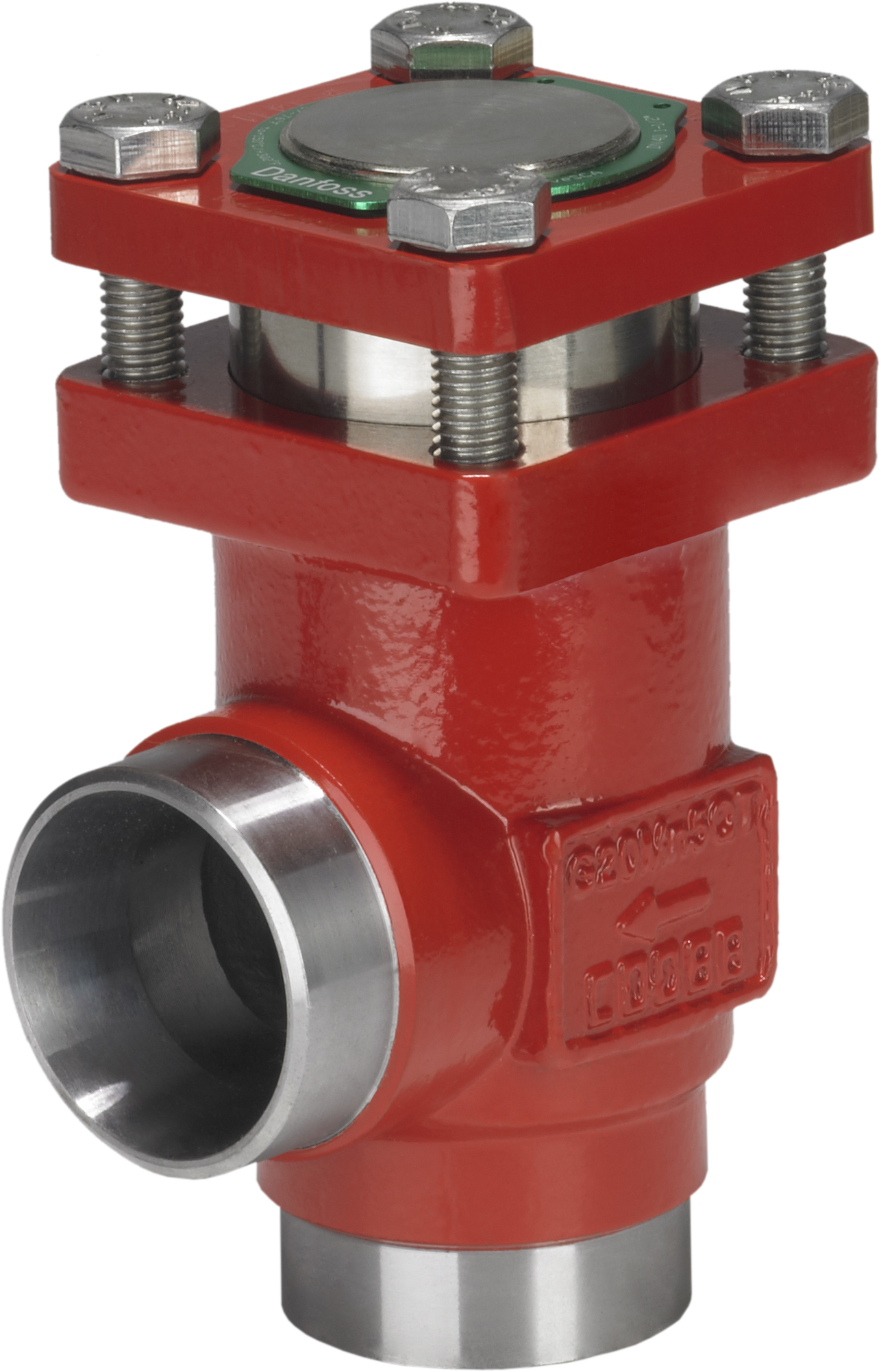

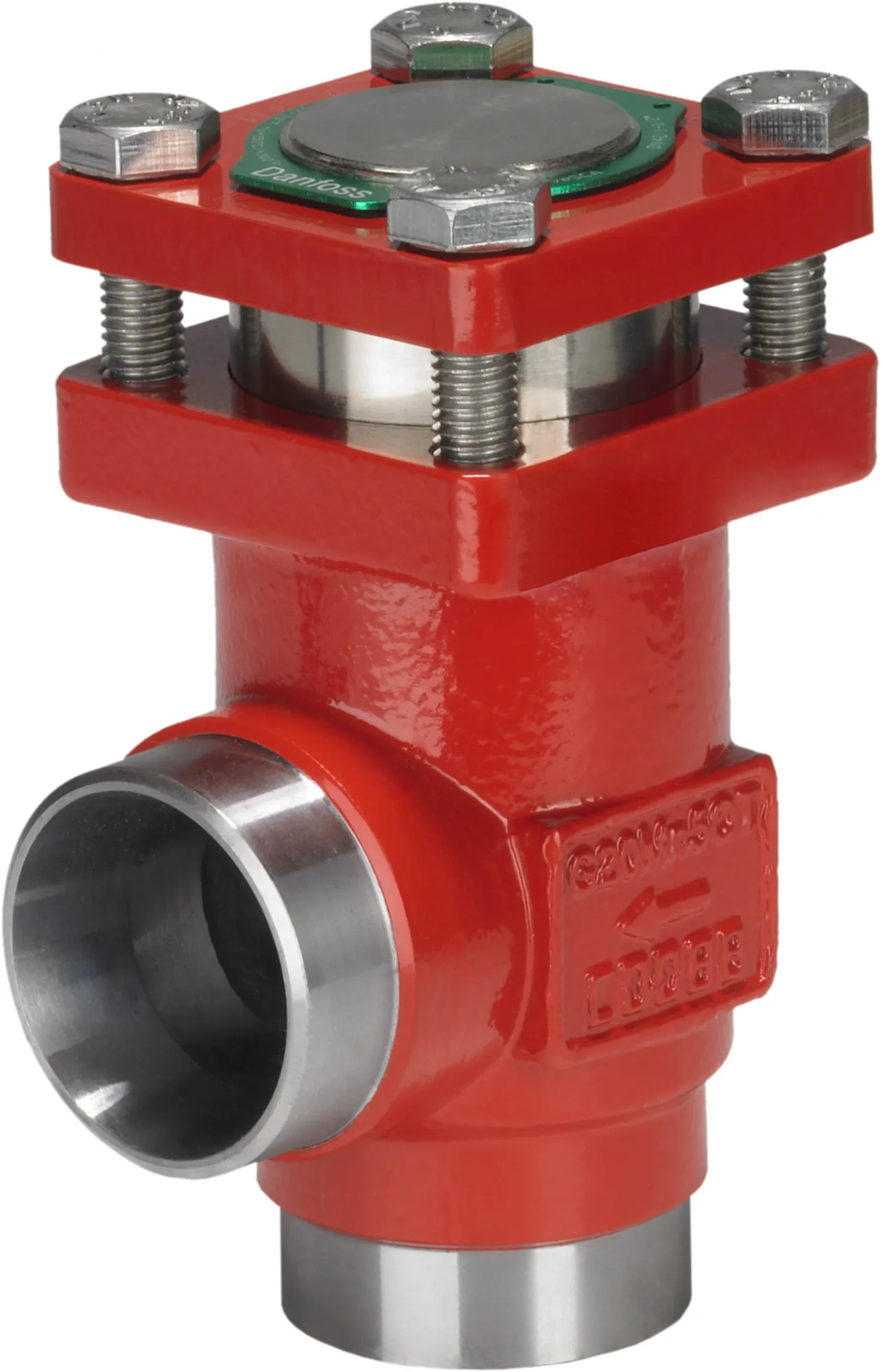

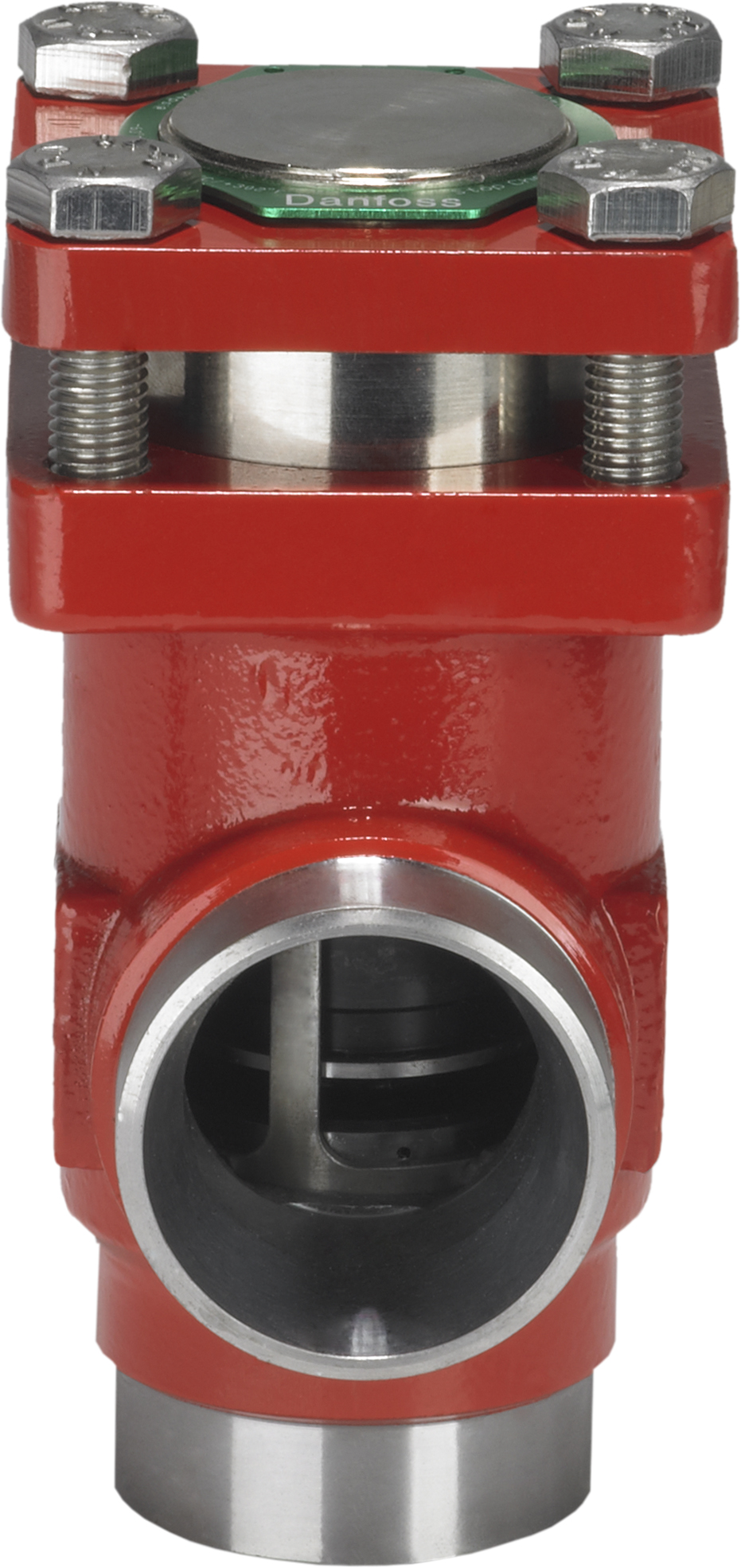

148B5237 Danfoss: Connection material: Steel, Max. Working Pressure [bar]: 52.0
Gross weight
1.55 Kilogram
Net weight
1.35 Kilogram
Volume
2.448 Liter
EAN
5702428476089
Approval
CE,UKCA
Brand
SVL Flexline
CE evaluated
Yes
China RoHS compliance
Out of scope
Colour Paint
Reddish brown
Connection material
Steel
Connection size [in]
1/2 in
Connection size [mm]
15 mm
Connection standard
ASME B 36.10M SCHEDULE 80
Connection type
Butt weld
Contain batteries
No
Cv value [gal/min]
9.3 gal/min
Direction
Angleway
EU RoHS compliance
Out of scope
Flow direction indicator
Embossed 1-way arrow
Fluid Group
1,2
Kv value [m=C2=B3/h]
8 m=C2=B3/h
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
MinODP [bar]
0.04 bar
MinODP [psi]
0.62 psi
Packing format
Single pack
Parts Program name
CHV-X
PED category
Art. 4, par. 3
Product accessories
SVL Flexline accessories
Product description
Check Valve
Product group
Check valves
Product Name Description
Check valve
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R290,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R600,R600a,R717,R744,R507A,R1234yf,R1234ze(E),R125,R152a,R227ea,R236fa,R245fa,R32,R407H,R413A,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R512A,R513A,R513B,R515A,R515B,R516A,R170,R452C
Serviceable
SVL Flexline spare parts
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
CHV-X 15
UK RoHS compliance
Out of scope
148B5283
Function module, CHV-X 15-20, SVL Flexline, Max. Working Pressure [bar]: 52.0
148B6051
Inspection kit, Sealing parts
148B6167
Overhaul kit, Piston and sealing

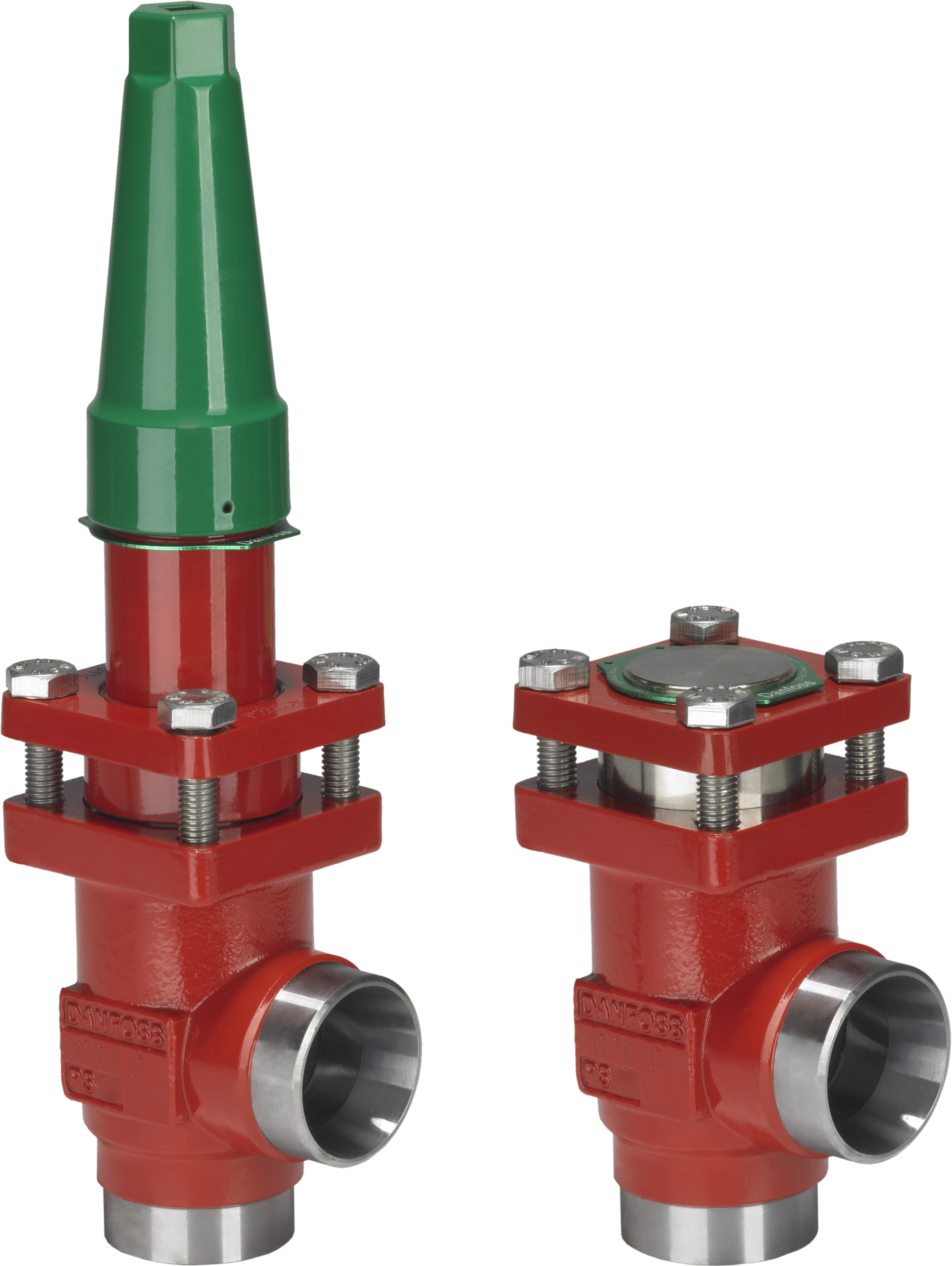

Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] Danfoss Solutions for Chillers SVL Flexline code number selection guide Check valves - Industrial Refrigeration product group catalogue Stop/Check valve & and Check valve, type SCA-X and CHV-X Check & stop valve and Check valves SCA-X and CHV-X 15-125 Check & stop valves and Check valves SCA-X and CHV-X 15-125 with butt weld F connection Check & stop valve, SCA-X, Check valve, CHV-X Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02) CHV-X 15-65 angle Dimensions - CHV-X 15-40 - Angleway Isometric - CHV-X 15-65, Angleway Cut - CHV-X 15-40 - Angleway CHV-X cut-away drawing CHV-X 15-65 angle SCA-X and CHV-X 15-65 angle CHV-X cut-away drawing Cut - CHV-X 15-40 - Angleway Isometric - CHV-X 15-65, Angleway
