148B5483

Part Number: 148B5483
148B5483
Manufacturer
Danfoss
Part number
148B5483
Category

Product Information

Extended Description

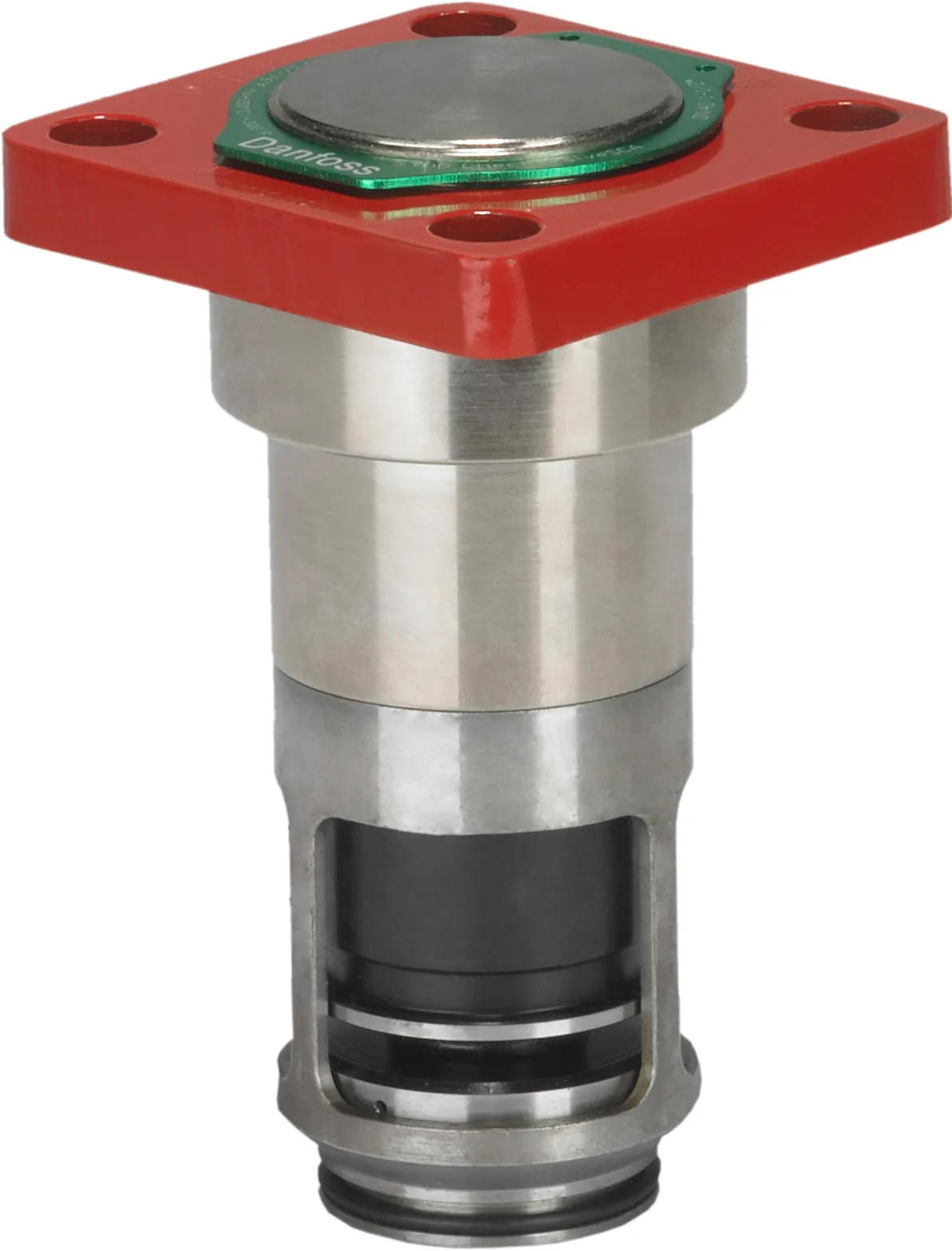

148B5483 Danfoss: Used for product: CHV-X 25; CHV-X 40; CHV-X 32, Type designation: Top Complete
Gross weight
1.622 Kilogram
Net weight
1.19 Kilogram
Volume
5.372 Liter
EAN
5702428486088
Brand
SVL Flexline
China RoHS compliance
Out of scope
Contain batteries
No
EU RoHS compliance
Out of scope
Max. Working Pressure [bar]
52 bar
Max. Working Pressure [psig]
754 psig
Packing format
Single pack
Parts Program name
CHV-X
Product accessories
SVL Flexline accessories
Product group
Check valves
Product Name Description
Function module
Quantity per packing format
1 pc
REACH Candidate List substances
No
Refrigerants
R134a,R22,R290,R401A,R402A,R404A,R407A,R407B,R407C,R407F,R409A,R410A,R421A,R502,R600,R600a,R717,R744,R507A,R1234yf,R1234ze(E),R125,R152a,R227ea,R236fa,R245fa,R32,R407H,R413A,R417A,R422A,R422B,R422D,R438A,R442A,R444B,R447A,R447B,R448A,R449A,R449B,R450A,R452A,R452B,R454A,R454B,R454C,R455A,R463A,R512A,R513A,R513B,R515A,R515B,R516A,R170,R452C
Serviceable
SVL Flexline spare parts
Temperature range [=C2=B0C] [max]
150 =C2=B0C
Temperature range [=C2=B0C] [min]
-60 =C2=B0C
Temperature range [=C2=B0F] [max]
302 =C2=B0F
Temperature range [=C2=B0F] [min]
-76 =C2=B0F
Type
CHV-X 25-40
Type designation
Top Complete
UK RoHS compliance
Out of scope
Used for product
CHV-X 25,CHV-X 32,CHV-X 40

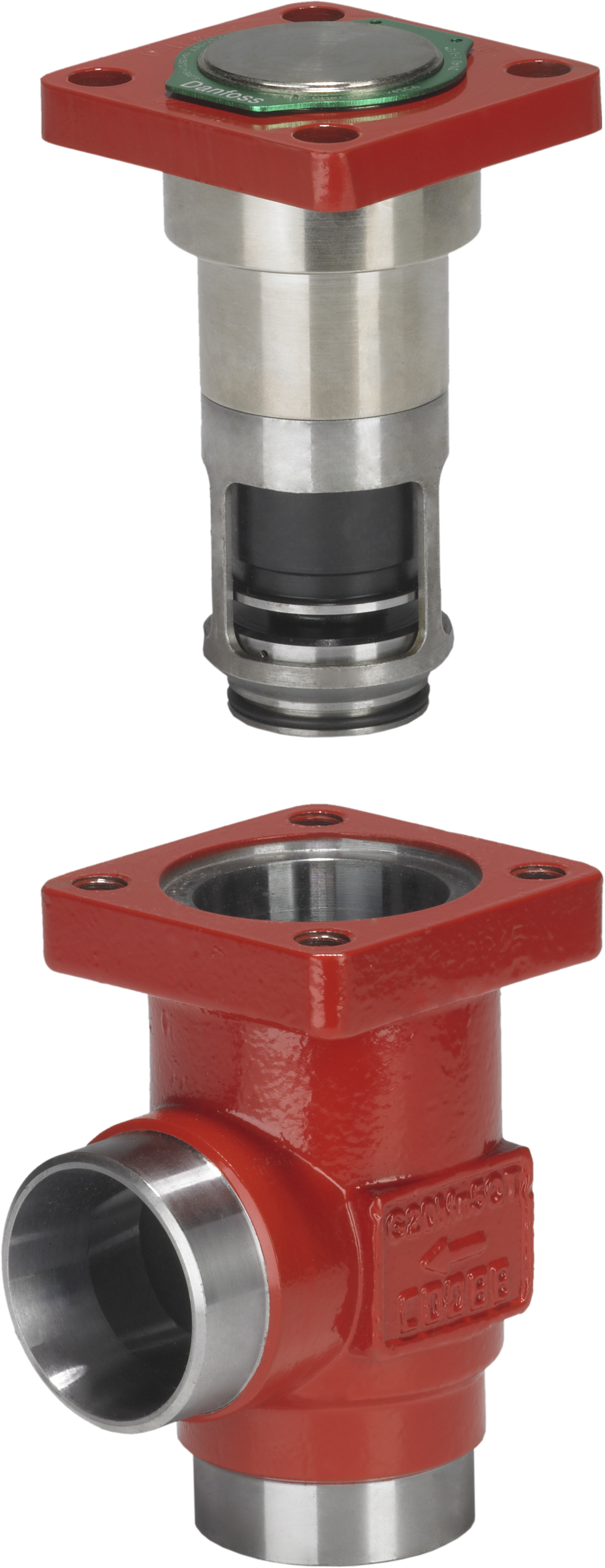

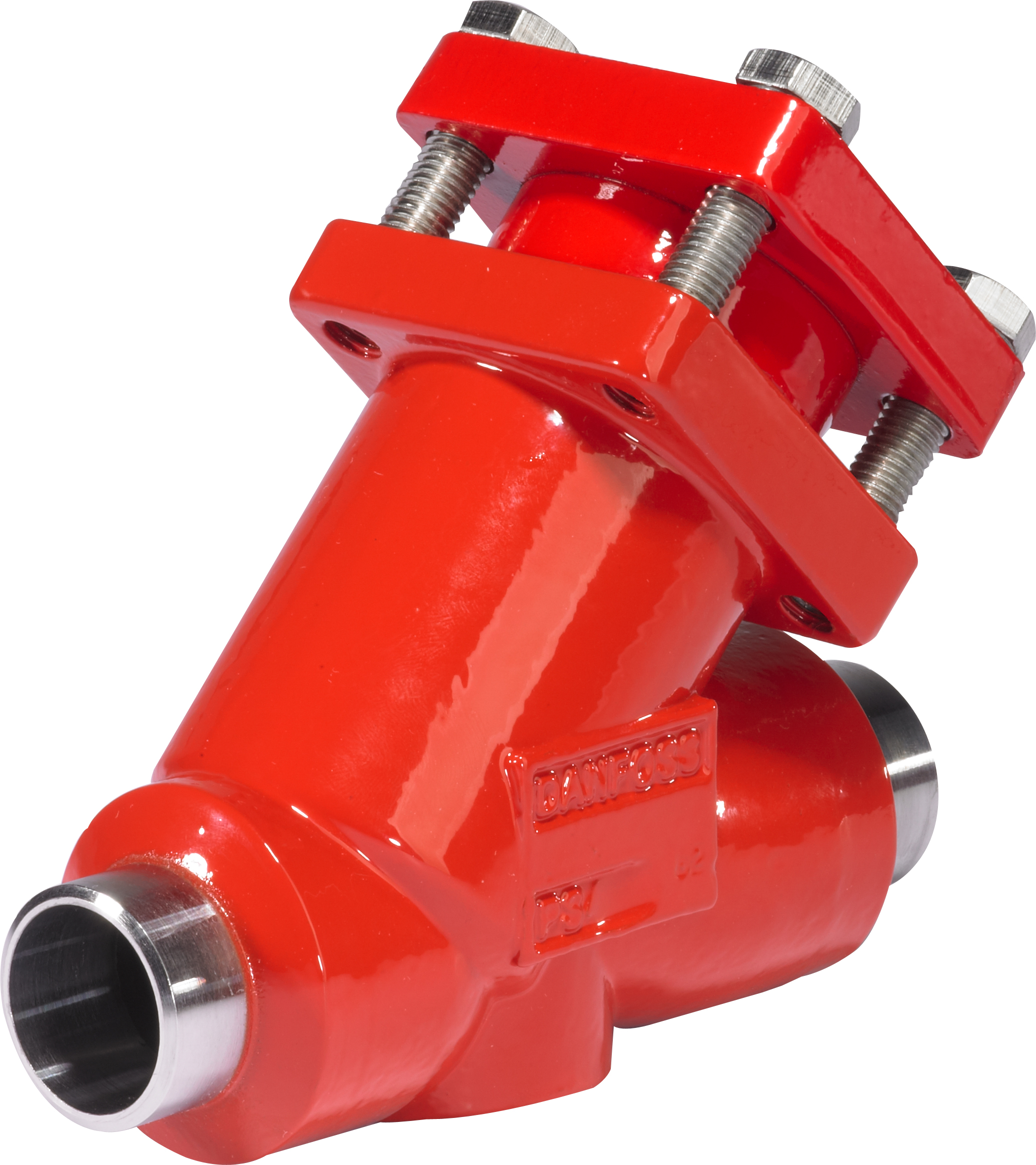

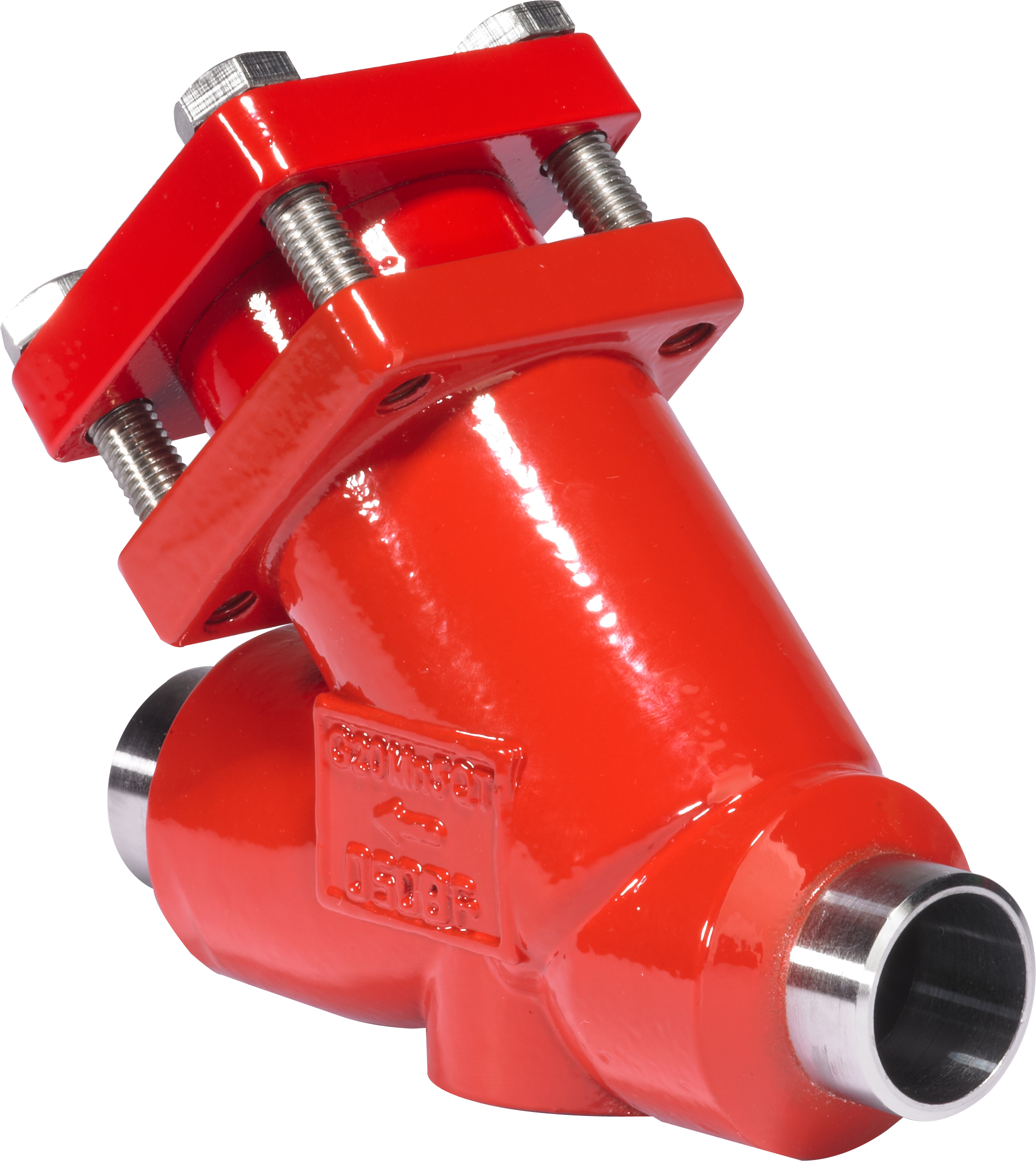

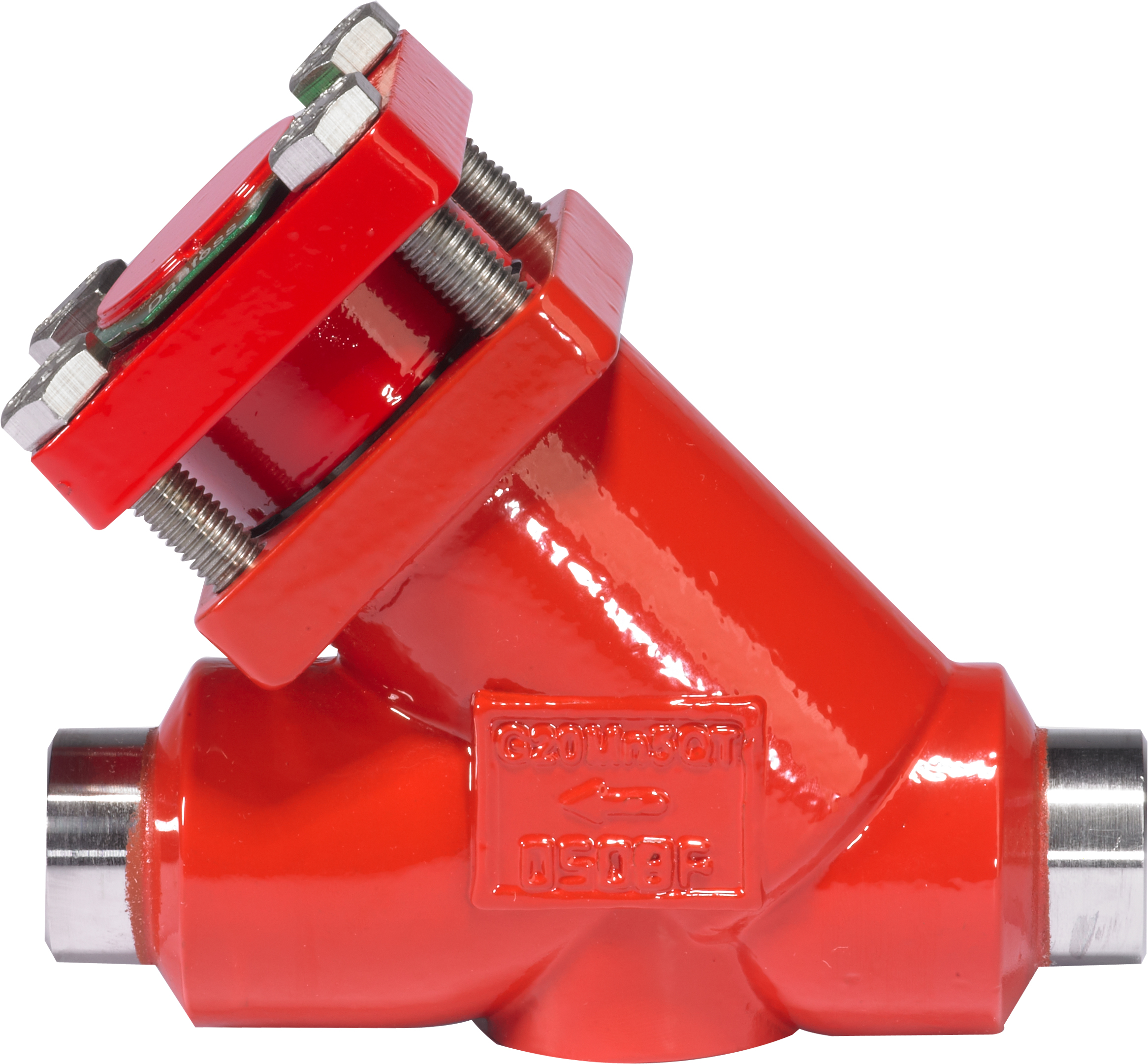

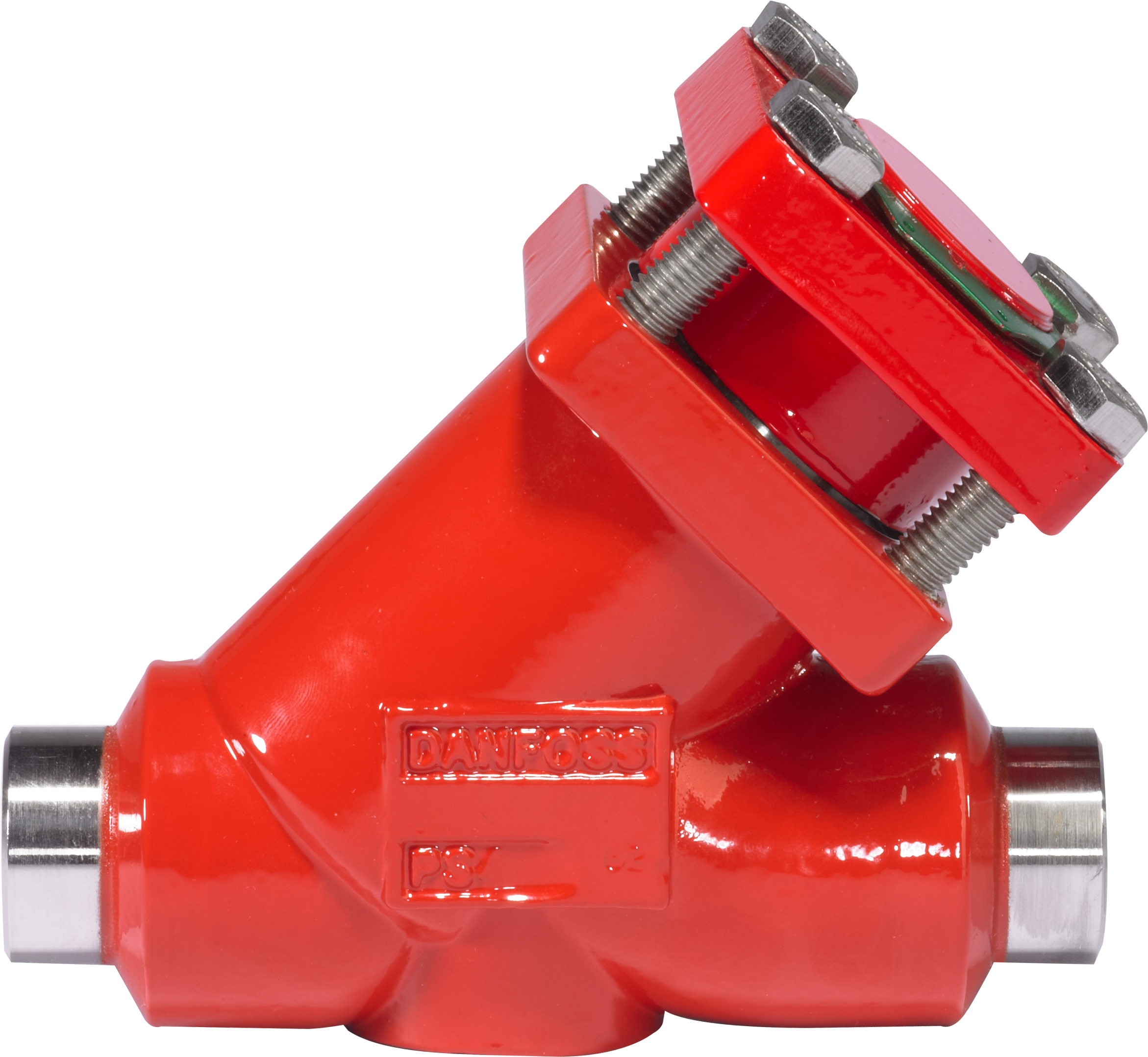

Industrial Refrigeration systems in Potentially Explosive Atmospheres (Hazards area) ATEX 94/9/EC Directive [Atmosph=C3=A8res EXplosives] Danfoss Solutions for Chillers SVL Flexline code number selection guide Check valves - Industrial Refrigeration product group catalogue Check and stop valve, type_SCA-X_and_CHV-X With butt-weld connection F Stop/Check valve & and Check valve, type SCA-X and CHV-X Check & stop valve and Check valves SCA-X and CHV-X 15-125 Check & stop valves and Check valves SCA-X and CHV-X 15-125 with butt weld F connection Check & stop valve, SCA-X, Check valve, CHV-X Danfoss MD 033F0691.AI Danfoss MD 033F1196.02 T=C3=9CV 0045 202 9120 Z 00379 22 D 000(02) Danfoss UK 033F4026.AB CHV-X 15-65 insert CHV-X 15-65 straight (only in parts programme) CHV-X 15-65 straight (only in parts programme) CHV-X 15-65 angle housing and insert CHV-X 15-65 straight (only in parts programme) Isometric - CHV-X 15-65 Top part CHV-X 15-65 straight (only in parts programme) CHV-X 15-65 angle housing and insert CHV-X 15-65 insert Check valve CHV-X top part
