187F2103

Part Number: 187F2103
187F2103
Manufacturer
Danfoss
Part number
187F2103
Category

Product Information

Extended Description

187F2103 Danfoss: Energy meter for commercial applications
Gross weight
7.628 Kilogram
Net weight
6.954 Kilogram
Volume
7.933 Liter
EAN
5702424606336
1 Primary battery SUM weight Kg
0.038
1 Primary battery weight Kg
0.019
Accuracy standard
Class 2 to EN1434
Ambient class
E2/M1
Ambient humidity [% RH] [Max]
93 %
Ambient temperature [=C2=B0C] [max]
55 =C2=B0C
Ambient temperature [=C2=B0C] [min]
5 =C2=B0C
Application
Heating
Approval authority
MID
Approval type
Type approved and 1st time verified
Approved meteorological range [=C2=B0C] [Max]
180 =C2=B0C
Approved meteorological range [=C2=B0C] [Min]
0 =C2=B0C
Battery lifetime [Years]
15 yr
Battery qty
2
Battery type or Name
AA Lithium
Cable insulation material
Halogen free
Cable length between calculator and flow sensor [m]
5 m
China RoHS compliance
Out of scope
Connection size
DN 50
Connection types
Flange
Contain batteries
Yes
Description
Energy meter for commercial applications
Diameter [mm]
50 mm
Display type
LCD
Dynamic range
1:100
EEE category
5 small equipment (any external dimension 50 cm)
Energy unit
GJ
EU RoHS compliance
Yes with exemptions
Flow measuring principle
Ultrasonic
In scope of WEEE
Yes
Installation
Supply
Integrated communication
M-Bus
Interface module slot 1
No interface module
IP protection class
IP65
Kvs values [m=C2=B3/h]
43.3 m=C2=B3/h
Length [mm]
270 mm
Log storage duration [Month]
36 mo
Media
Water quality with pH 7 to 9.5
Media temperature [=C2=B0C] [Max]
130 =C2=B0C
Media temperature [=C2=B0C] [Min]
0 =C2=B0C
Pressure nominal [bar]
25 bar
Product group
Energy meters
qc [m=C2=B3/h]
0.03 m=C2=B3/h
qi [m=C2=B3/h]
0.15 m=C2=B3/h
qp [m=C2=B3/h]
15 m=C2=B3/h
qs [m=C2=B3/h]
30 m=C2=B3/h
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
0bb8fe81-b381-4f95-92a5-d3d7e2e54c00
SCIP dossier product name
Sono40
Storage temperature [=C2=B0C] [Max]
35 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-25 =C2=B0C
Supply voltage [V] DC
4 V
Supply voltage type
battery 2 x AA-cell
Temperature sensor diameter [mm]
5.2 mm
Temperature sensors cable length [m]
5 m
Temperature sensors type
Pt 500
Type
SonoMeter 40
UK RoHS compliance
Yes
Weight per battery
19 g

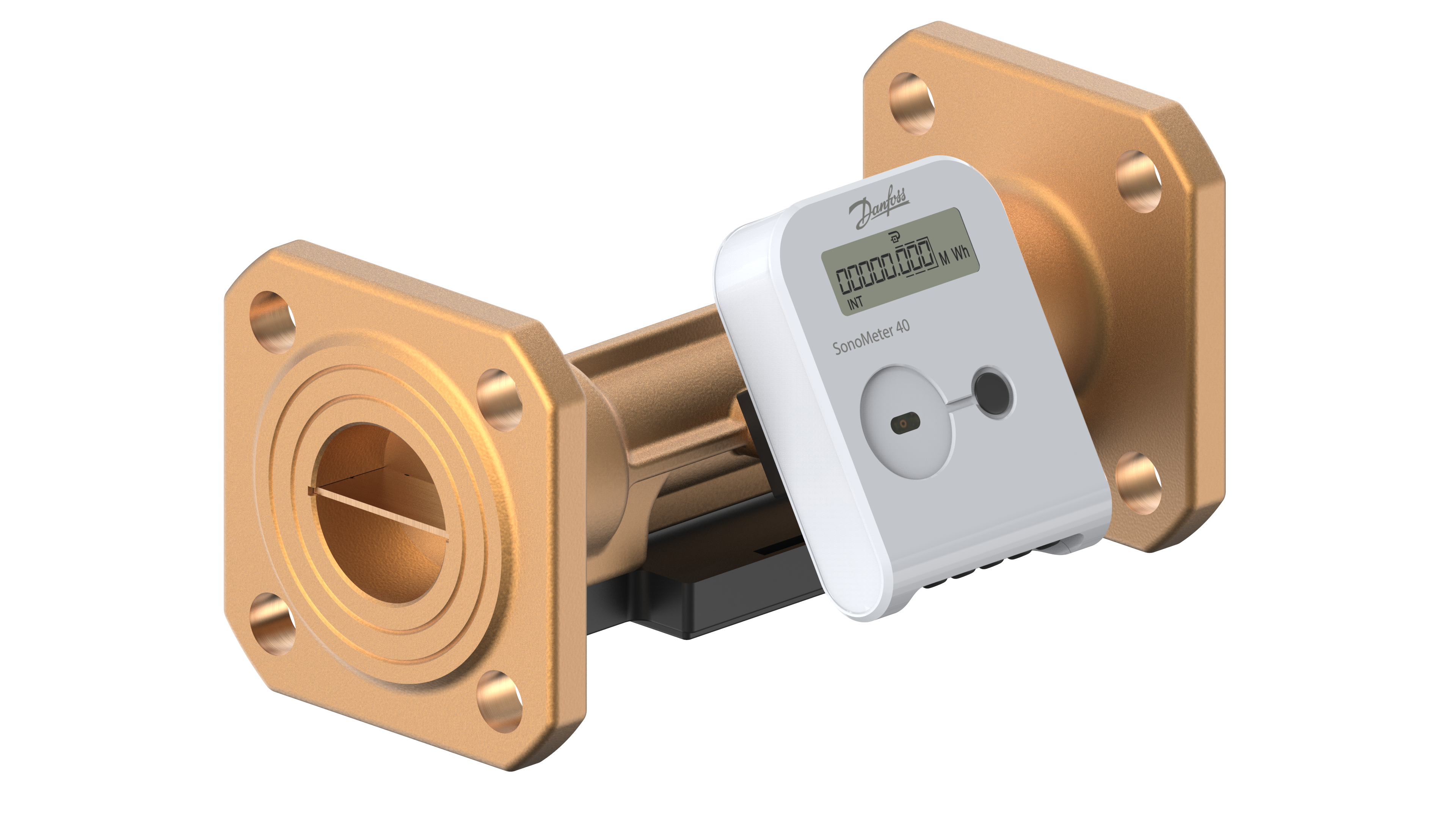

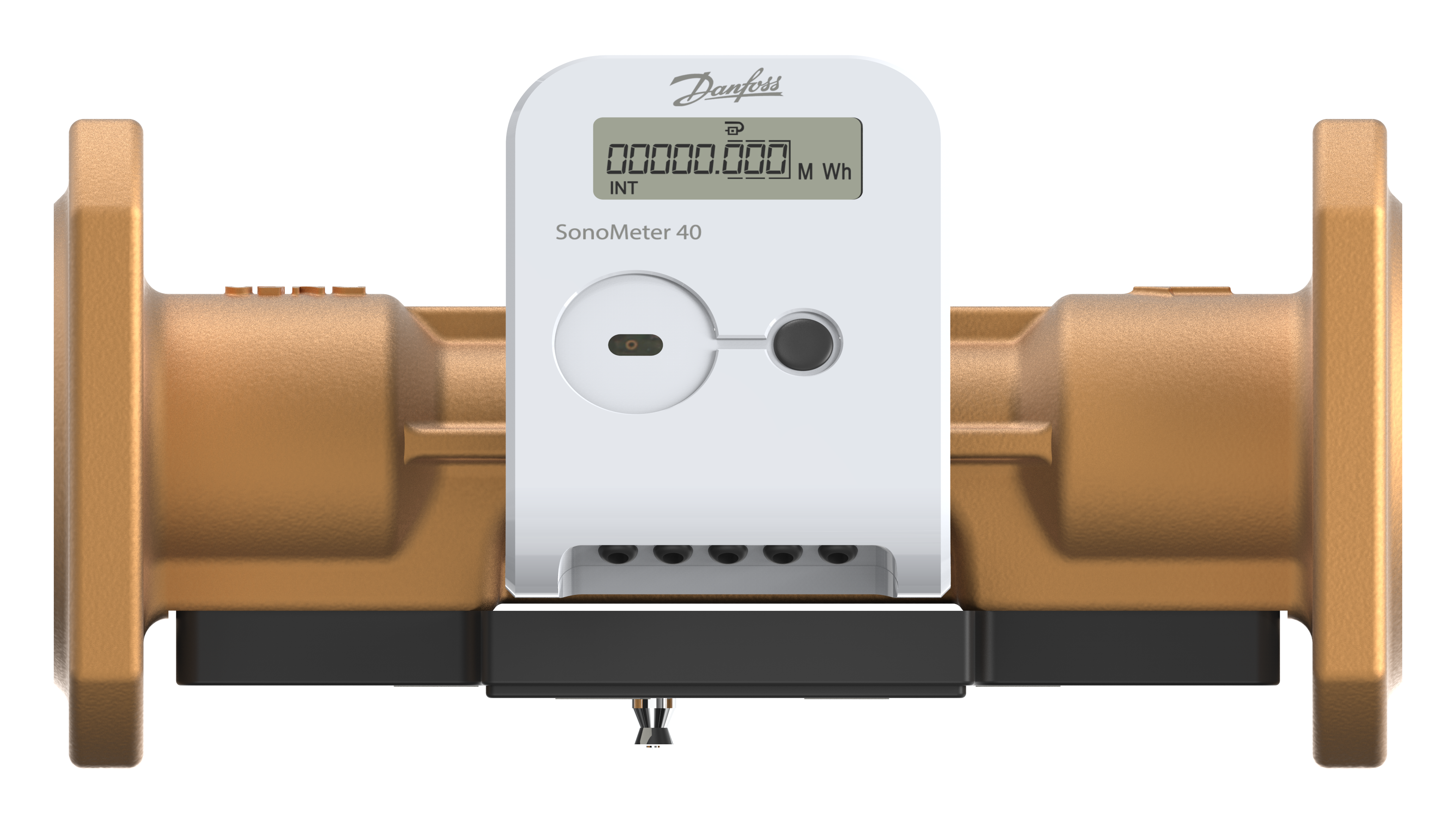

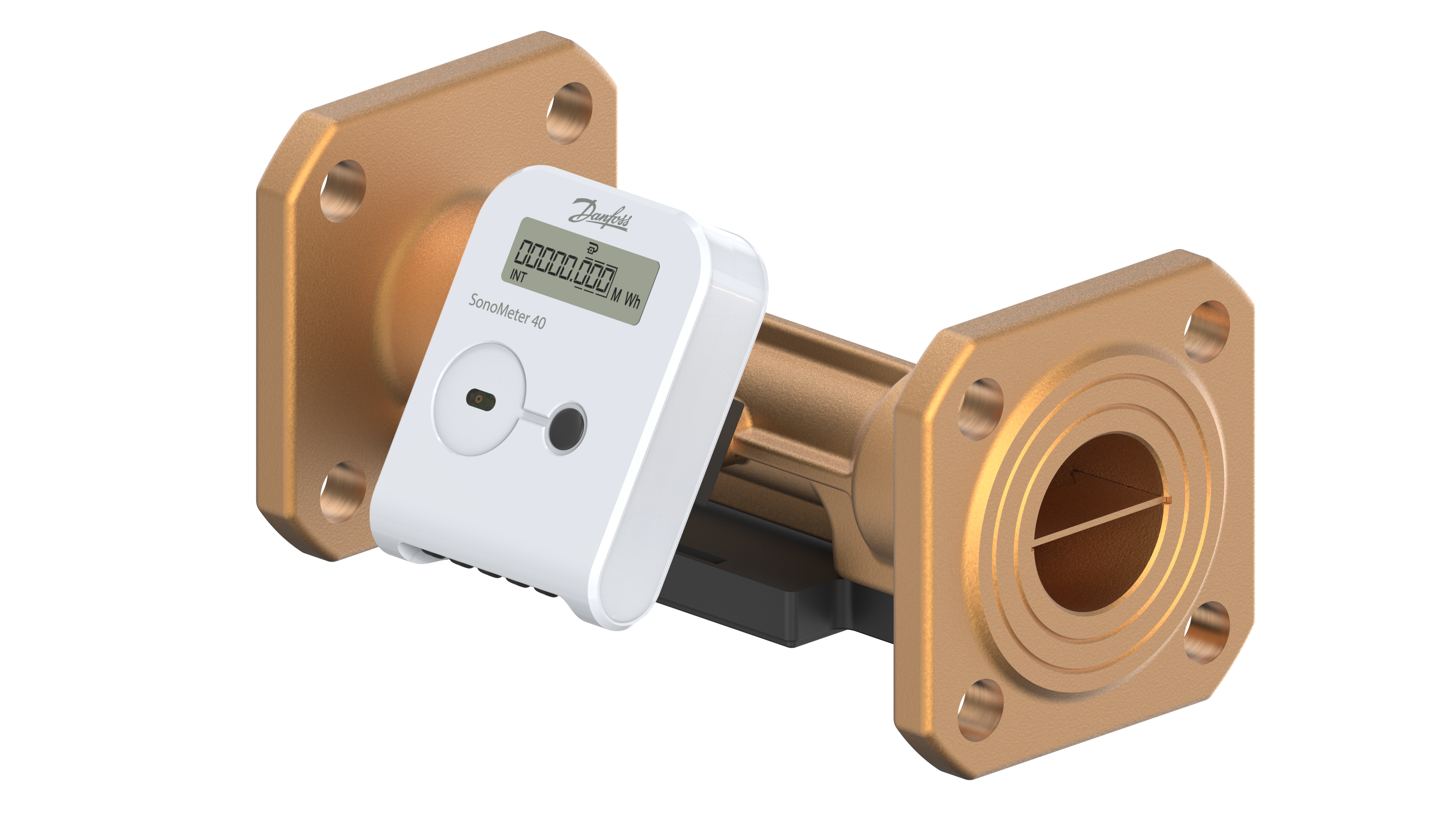

Energy metering solutions - Product overview 2024 SonoMeter 40 24 V power supply module and 230 V transformer SonoMeter 40 BACnet MS/TP Module for energy meter SonoMeter 40 Modbus RTU Slave Module for energy meter SonoMeter 40 SonoMeter 40 - Wired M-Bus protocol description SonoMeter 40, SonoMeter 40c Wireless M-Bus protocol description SonoMeter 40 - Test and calibration instruction SonoMeter 40 configuration software Danfoss EU-UK 014R2944.01 LEI LT-1621-MI004-47 PTB DE-21-M-PTB-0069 SonoMeter 40 DN50 270mm flange_front SonoMeter 40 DN50 270mm flange_left SonoMeter 40 DN50 270mm flange_right SonoMeter40_DN50_270mm_FL_3D_STEP SonoMeter40_DN50_270mm_FL_2D SonoMeter40_DN50-DN100_RFA SonoMeter40_DN50_270mm_FL_
