187F2691

Part Number: 187F2691
187F2691
Manufacturer
Danfoss
Part number
187F2691
Category

Product Information

Extended Description

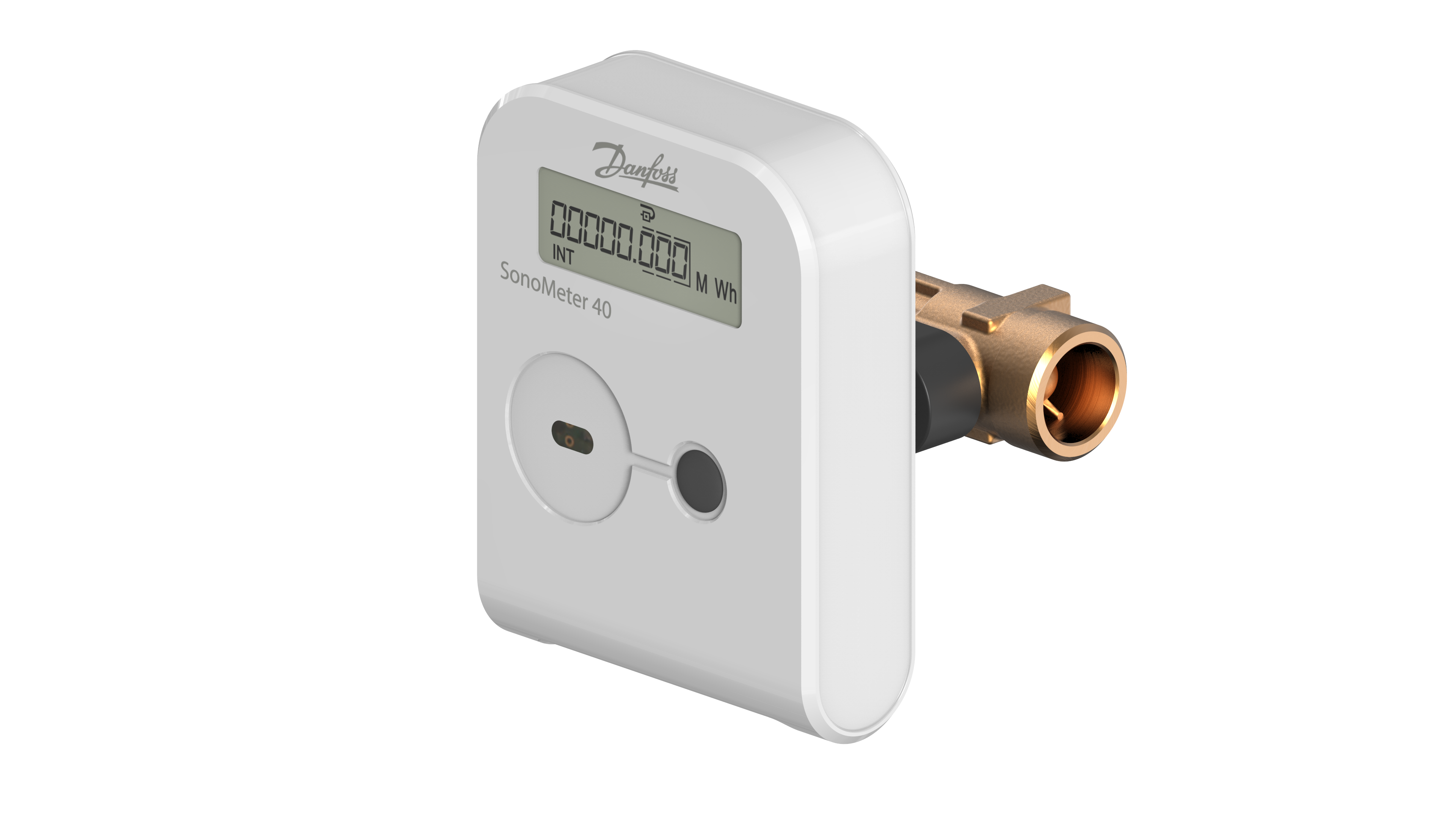

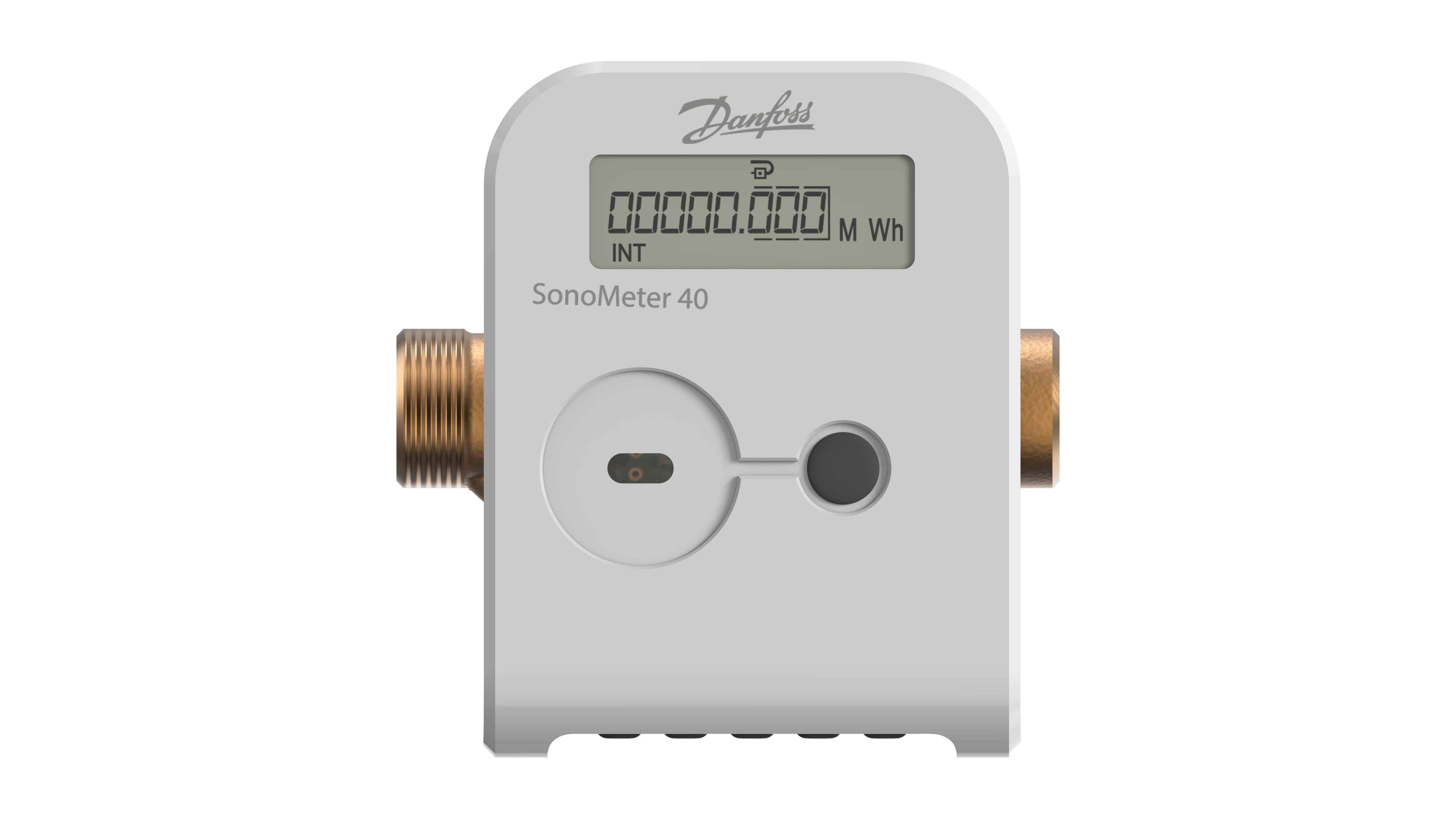

187F2691 Danfoss: Energy meter for commercial applications
Gross weight
1.345 Kilogram
Net weight
1.095 Kilogram
Volume
3.174 Liter
EAN
5702424607838
1 Primary battery SUM weight Kg
0.019
1 Primary battery weight Kg
0.019
Accuracy standard
Class 2 to EN1434
Ambient class
E2/M1
Ambient humidity [% RH] [Max]
93 %
Ambient temperature [=C2=B0C] [max]
55 =C2=B0C
Ambient temperature [=C2=B0C] [min]
5 =C2=B0C
Application
Heating and cooling
Approval authority
MID
Approval type
Type approved and 1st time verified
Approved meteorological range [=C2=B0C] [Max]
180 =C2=B0C
Approved meteorological range [=C2=B0C] [Min]
0 =C2=B0C
Battery lifetime [Years]
15 yr
Battery qty
1
Battery type or Name
AA Lithium
Cable insulation material
Halogen free
Cable length between calculator and flow sensor [m]
1.2 m
China RoHS compliance
Out of scope
Connection size
G 3/4
Connection types
Thread
Contain batteries
Yes
Description
Energy meter for commercial applications
Diameter [mm]
15 mm
Display type
LCD
Dynamic range
1:100
EEE category
5 small equipment (any external dimension 50 cm)
Energy unit
kWh
EU RoHS compliance
Yes with exemptions
Flow measuring principle
Ultrasonic
In scope of WEEE
Yes
Installation
Supply
Integrated communication
No integrated communication
Interface module slot 1
RS485 BACnet
IP protection class
IP65
Kvs values [m=C2=B3/h]
2.27 m=C2=B3/h
Length [mm]
110 mm
Log storage duration [Month]
36 mo
Media
Water quality with pH 7 to 9.5
Media temperature [=C2=B0C] [Max]
130 =C2=B0C
Media temperature [=C2=B0C] [Min]
0 =C2=B0C
Pressure nominal [bar]
25 bar
Product group
Energy meters
qc [m=C2=B3/h]
0.003 m=C2=B3/h
qi [m=C2=B3/h]
0.006 m=C2=B3/h
qp [m=C2=B3/h]
0.6 m=C2=B3/h
qs [m=C2=B3/h]
1.2 m=C2=B3/h
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
0bb8fe81-b381-4f95-92a5-d3d7e2e54c00
SCIP dossier product name
Sono40
Storage temperature [=C2=B0C] [Max]
35 =C2=B0C
Storage temperature [=C2=B0C] [Min]
-25 =C2=B0C
Supply voltage [V] AC
230 V
Supply voltage type
mains
Temperature sensor diameter [mm]
5.2 mm
Temperature sensors cable length [m]
1.5 m
Temperature sensors type
Pt 500
Type
SonoMeter 40
UK RoHS compliance
Yes
Weight per battery
19 g
