187F9008
Part Number: 187F9008
Product Information
Extended Description

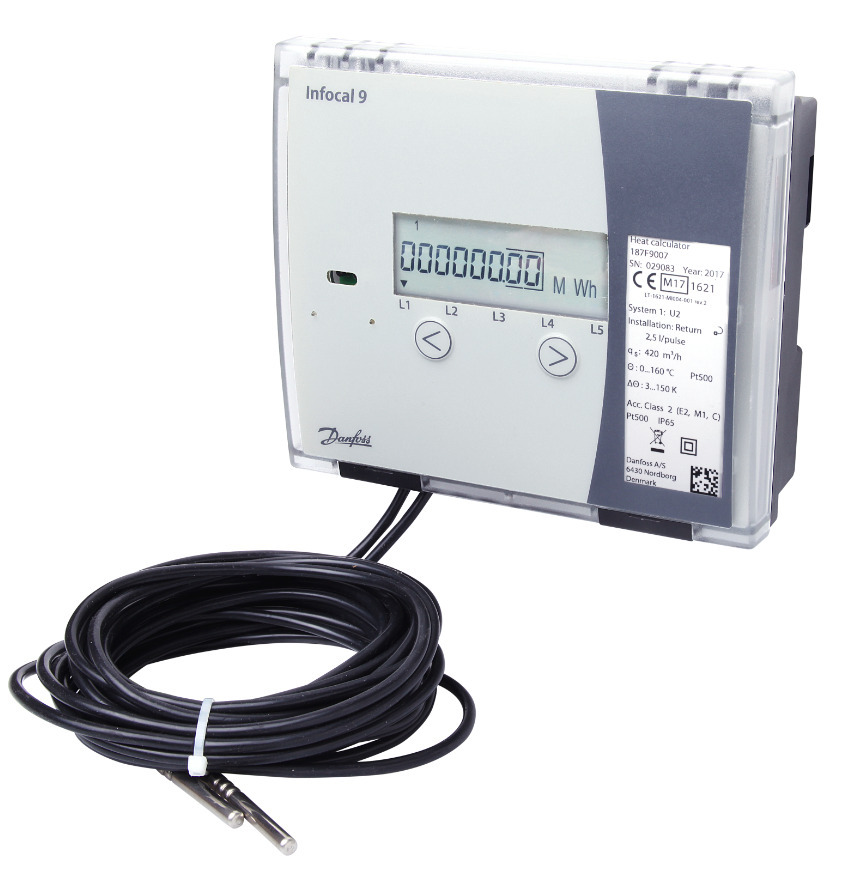

187F9008 Danfoss: Energy calculator
Gross weight
0.892 Kilogram
Net weight
0.892 Kilogram
Volume
3.59 Liter
EAN
5702428985710
1 Primary battery SUM weight Kg
0.05
1 Primary battery weight Kg
0.05
Accuracy standard
Class 2 to EN1434
Ambient class
E2/M1
Ambient humidity [% RH] [Max]
93 %
Ambient temperature [°C] [max]
55 °C
Ambient temperature [°C] [min]
5 °C
Application
Heating and cooling
Approval authority
MID
Battery lifetime [Years]
12 yr
Battery qty
1
Battery type or Name
D Lithium
China RoHS compliance
Out of scope
Contain batteries
Yes
Description
Energy calculator
Diameter [mm] [Max]
350 mm
Diameter [mm] [Min]
200 mm
Display type
LCD
EEE category
5 small equipment (any external dimension 50 cm)
Energy unit
MWh
EU RoHS compliance
Out of scope
For flow meter
SONO3500 CT
In scope of WEEE
Yes
Installation
Return
Integrated communication
2 pulse input
Interface module slot 1
M-bus module
IP protection class
IP65
Label product
Yes
Log storage duration [Month]
36 mo
Media temperature [°C] [Max]
160 °C
Media temperature [°C] [Min]
0 °C
Product group
Energy meters
Pulse value volume [l/pulse]
10 l/pulse
qp [mÂł/h] [Max]
1500 mÂł/h
qp [mÂł/h] [Min]
250 mÂł/h
REACH Candidate List substances
No
Supply voltage [V] DC
4 V
Supply voltage type
battery D-cell
Temperature sensor diameter [mm]
5.2 mm
Temperature sensor length [mm]
5 mm
Temperature sensors type
Pt 500
Type
Infocal 9
UK RoHS compliance
Out of scope
Weight per battery
50 g
