PRIAVLC

Part Number: PRIAVLC
PRIAVLC
Manufacturer
Danfoss
Part number
PRIAVLC
Category

Product Information

Extended Description

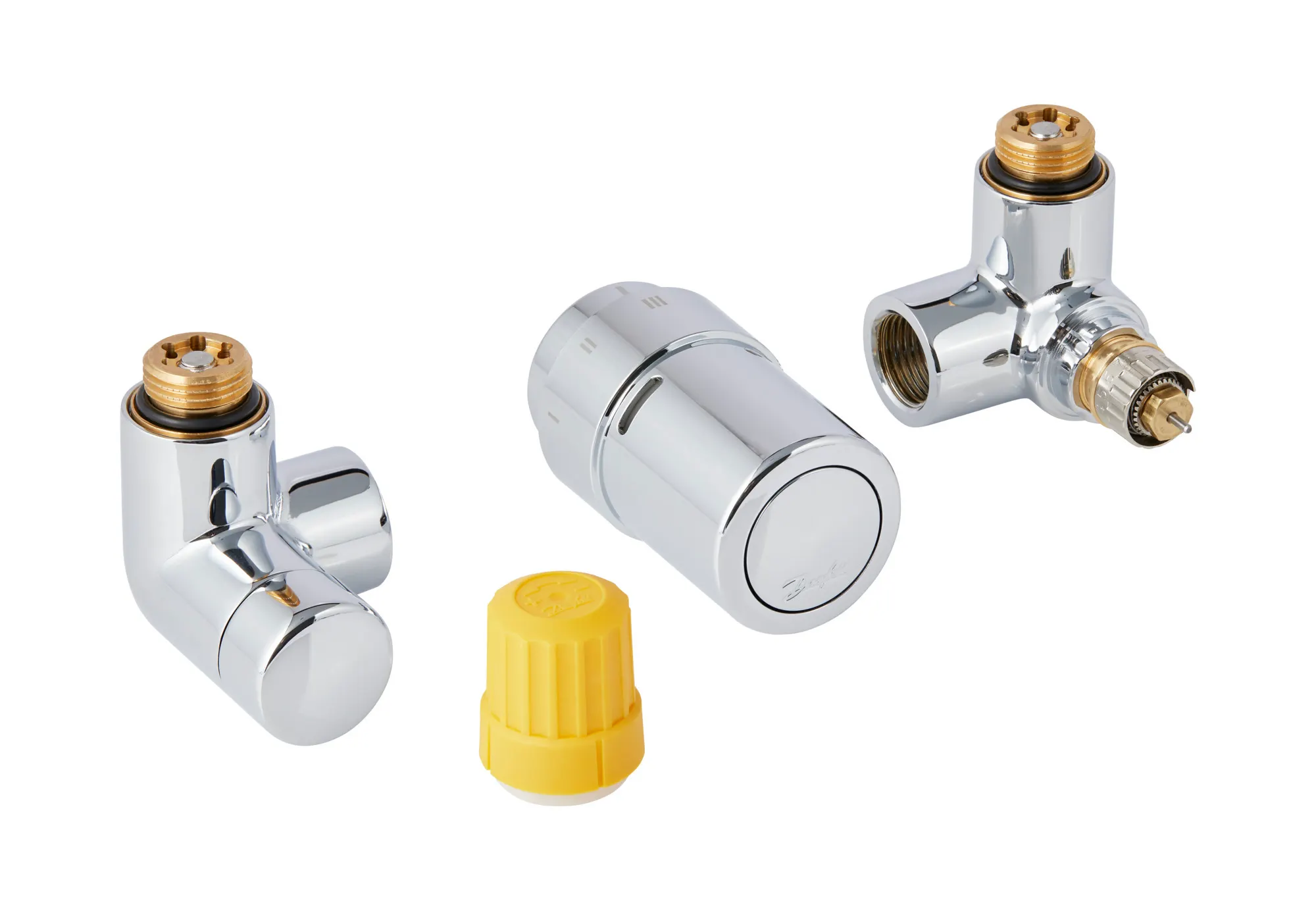

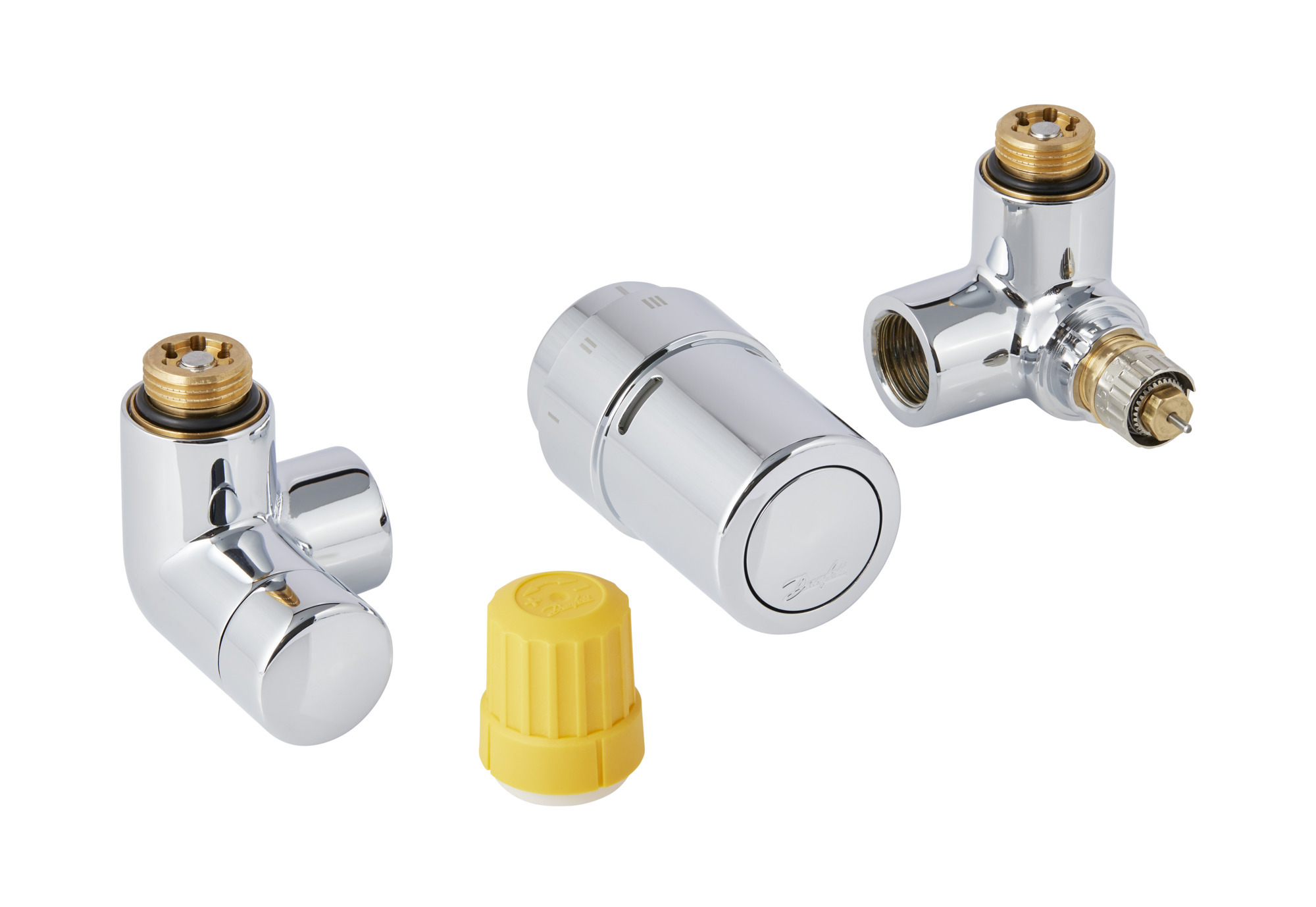

PRIAVLC Danfoss: Includes RAX sensor, valve and lockshield valve
Gross weight
1.118 Kilogram
Net weight
1.118 Kilogram
Volume
1.782 Liter
EAN
5702420084084
China RoHS compliance
Out of scope
Colour
Chrome
Connection size in
Rp 1/2
Connection size out
R 1/2
Contain batteries
No
Contents of set
Valve, sensor, lockshield
Description
Includes RAX sensor, valve and lockshield valve
Design
Right mounted sensor
Differential pressure range [bar] [Max]
0.6 bar
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(a),6(c)
Flow temperature [=C2=B0C] [Max]
120 =C2=B0C
Kv value at Xp =3D 0.5 - 2.0 K [m=C2=B3/h] [Max]
0.34 m=C2=B3/h
Kv value at Xp =3D 0.5 - 2.0 K [m=C2=B3/h] [Min]
0.03 m=C2=B3/h
Kvs values [m=C2=B3/h] [Max]
0.44 m=C2=B3/h
Product group
Products for design radiators
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
RLV type
RLV-X
SCIP dossier no.
0b1c308f-8c6c-40a3-a91e-b58e88455e6d
SCIP dossier product name
RAX Design set
Sensor design
RAX
Sensor type
Thermostatic sensor
Type
RAX Design sets
UK RoHS compliance
Out of scope
Valve type
RA-URX
Working pressure [bar] [Max]
10 bar
