9342200
Part Number: 9342200
Manufacturer
Rittal
Part number
9342200
Category
Alt Part Number
SV 9342.200
Product Information
Extended Description

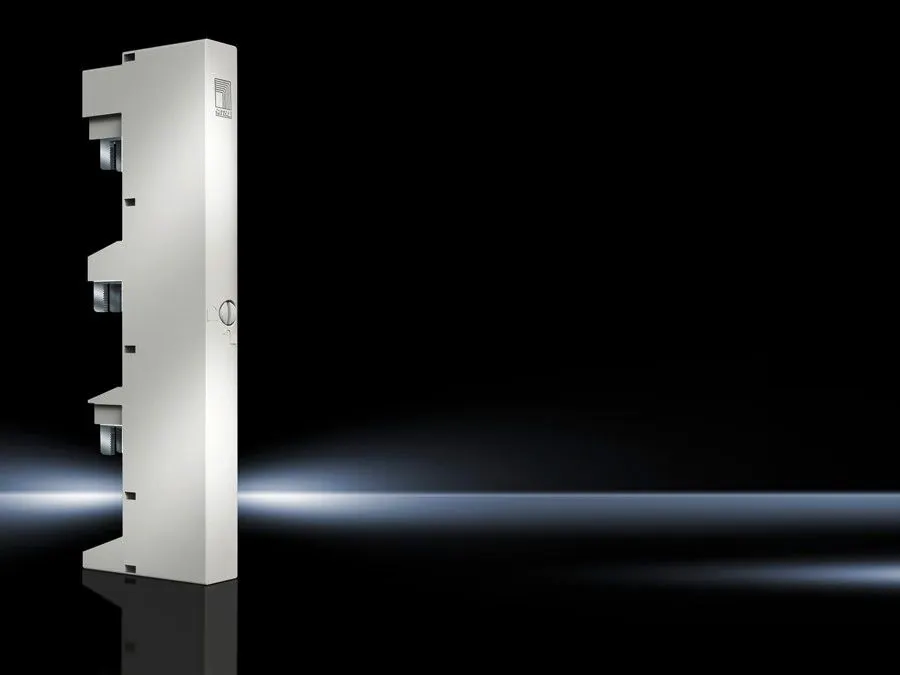

9342200 Rittal: SV Connection adaptor, 63 A, 690 V, 3-pole, cable outet top, round conductor connection 2,5-10 mm²
Article number
SV 9342.200
Material
Cover: ABS | Punched section: Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated current max.
63 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 600 V, Fuse Class J max. 60 A, JDDZ/7
Cable outlet
Top
For bar systems with centre-to-centre spacing
60 mm
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 20 mm | Height: 215 mm
Connection of round conductors, fine wire with wire end ferrule
2.5 ‐ 10 mm²
Connection of round conductors, multi-wire
2.5 ‐ 10 mm²
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.2 kg
Copper weight (kg per piece)
0.019
Customs tariff number
85369010
EAN
4028177503595
ETIM 7.0
EC001531
ECLASS 8.0
27370304
Product description
SV Connection adaptor, 63 A, 690 V, 3-pole, cable outet top, round conductor connection 2,5-10 mm²
