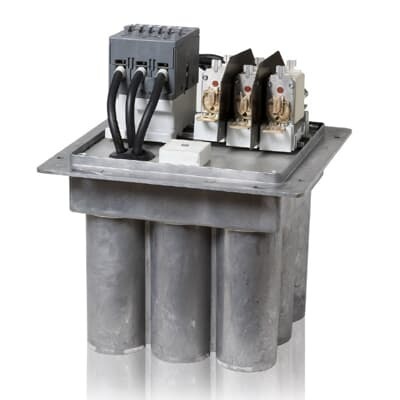

ABB 10148104 Detuning Reactor - 30kVAR, 400V H-class
Part Number: 10148104
Quick Summary
Detuning Reactor ABB 10148104 protects detuning capacitors in power quality installations, delivering reliable protection for industrial electrical systems. Maintenance teams often face unexpected capacitor failures and downtime due to switching transients, which disrupt production and drive up costs. The unit features H-class insulation and CMRT reporting, supporting critical safety and responsible-sourcing requirements while clarifying end-of-life handling under WEEE guidelines. Designed for 400V 50Hz IT networks, it offers a compact footprint and straightforward integration with ABB power quality products. With a net width of 235 mm, height of 210 mm, and depth of 146 mm, plus a 22 kg weight, it fits standard enclosures while maintaining robust mechanical protection. These specifications translate into predictable installation, easier spare-part planning, and meaningful value for engineering and procurement teams.
Product Information
Extended Description
10148104 ABB: The reactor is used to protect the detuning capacitor, with H-class insulation
Accessories Available
No
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
235 mm
Product Net Height
210 mm
Product Net Depth / Length
146 mm
Product Net Weight
22 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
22 kg
Instructions and Manuals
Catalogue (.PDF) [ZH] Power Quality Products
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] Power Quality Products
Feature → Business Impact → Application: R7% 30KVAR rating ensures adequate reactive power compensation, reducing voltage fluctuations and protecting the detuning capacitor, which lowers the risk of premature capacitor failure and extends system uptime. This translates to lower corrective maintenance costs and improved process reliability in power-quality sensitive applications such as motor drives and critical loads. Feature → H-class insulation provides higher temperature tolerance and electrical robustness, enabling operation in demanding industrial environments with greater safety margins and longer service life. Application: heavy-duty switchgear rooms and outdoor installations where ambient conditions can challenge equipment longevity. Feature → Compact footprint (235 mm W × 210 mm H × 146 mm D) and 22 kg weight simplify cabinet integration and on-site handling, decreasing installation time and reducing shipping and labor costs. Application: retrofit projects or new builds with space-constrained enclosures. Feature → CMRT reporting and WEEE scope clarity support regulatory compliance and supply-chain transparency, reducing procurement risk and streamlining sustainability reporting. Application: corporate ESG programs and vendor qualification processes. Feature → No accessories required simplifies stocking and reduces total cost of ownership, while the included installation manuals and PDFs accelerate commissioning. Application: field deployment and technician training. Industry insight: ABB detuning reactors are designed to complement power quality portfolios, enabling engineers to standardize protective solutions across multiple facilities while optimizing spare parts alignment and maintenance windows.
Get a Quick Quote for a ABB 10148104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 10148104?
Enquire Now
FAQs
Prepare the enclosure space to accommodate the 235 mm width, 210 mm height, and 146 mm depth. Verify the unit's 22 kg weight and secure mounting. Refer to the Catalogue (.PDF) [ZH] Power Quality Products for installation instructions and torque recommendations. Ensure power is disconnected during integration and confirm wiring follows the system diagram in the manual.
The reactor is rated at 30 kVAR for reactive power support, operates at 400V and 50 Hz, and is designed for IT networks. It uses H-class insulation to enhance safety margins in industrial environments. Dimensions are 235 mm by 210 mm by 146 mm, with a net weight of 22 kg, facilitating predictable enclosure planning.
Yes, the product references a Conflict Minerals Reporting Template (CMRT) and is labeled as WEEE Category: Product Not in WEEE Scope. This supports supply-chain transparency and compliance reporting, while simplifying end-of-life considerations in regions where WEEE requirements apply.
Potential challenges include limited space in crowded switchgear cabinets and ensuring proper enclosure protection for an outdoor or harsh environment. Mitigate by verifying enclosure clearance before mounting, using the included manuals for wiring guidance, and coordinating with ABB data sheets and the PDF catalogs for correct installation practices.
By protecting the detuning capacitor, the reactor reduces capacitor faults and associated downtime, improving system reliability and extending component life. The compact form factor lowers installation complexity, CMRT ensures responsible sourcing, and WEEE scope clarity simplifies sustainability reporting—collectively driving lower maintenance costs and safer, more compliant deployments.
