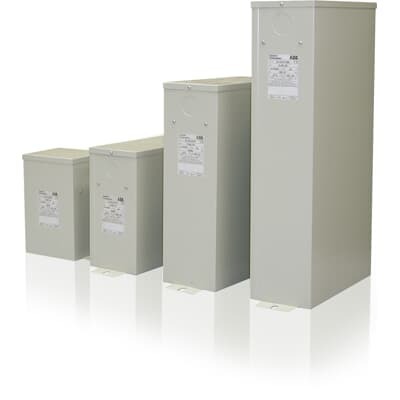

ABB 10167006 Tank Capacitor - RoHS Compliant
Part Number: 10167006
Quick Summary
ABB 10167006 Tank Capacitor provides reactive power compensation for stable voltage in distribution networks. Many facilities struggle with wasted energy, voltage fluctuations, and higher utility costs caused by poor power factor. The unit is RoHS compliant under EU directive 2011/65/EU and Amendment 2015/863, with CMRT documentation and WEEE status indicating scope considerations. Easy to specify in power quality projects, this compact tank capacitor integrates with ABB CLMD units to deliver reliable reactive power correction and strong procurement value.
Product Information
Extended Description
10167006 ABB: CLMD is a tank capacitor used for reactive power compensation
Accessories Available
No
RoHS Information
Declaration RoHS of CLMD
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20151210
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
436 mm
Product Net Height
670 mm
Product Net Depth / Length
155 mm
Product Net Weight
22 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
22 kg
Instructions and Manuals
Manual (.PDF) [ZH] CLMD capacitor units
Data Sheet, Technical Information
Catalogue (.PDF) [ZH] Power Quality Products
Feature: Tank capacitor with 75.2KVAR rating at 280V and 50Hz. Benefit: Enables precise reactive power correction, improving power factor and reducing utility losses in industrial plants. Application: Suitable for distribution boards and switchgear where space and performance constraints require compact, high-efficiency capacitors. Feature: RoHS compliance and regulatory alignment. Benefit: Minimizes compliance risk in European projects and simplifies supplier qualification. Application: Ideal for manufacturing facilities and data centers operating under strict environmental standards. Feature: Clear dimensions and weight (436 mm width, 670 mm height, 155 mm depth; 22 kg). Benefit: Eases space planning, rack mounting, and cabinet integration. Application: Retrofit projects and new builds where precise enclosure fit matters. Feature: Comprehensive documentation (Manual, Data Sheet). Benefit: Accelerates installation and reduces commissioning time, improving uptime. Application: Field service and maintenance teams rely on accessible power quality literature. Feature: Packaging and simplicity (box 1 piece; 22 kg gross). Benefit: Streamlined logistics and straightforward procurement with minimal accessory requirements. Application: Efficient warehouse handling and rapid deployment in project schedules.
Get a Quick Quote for a ABB 10167006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 10167006?
Enquire Now
FAQs
Install the ABB 10167006 tank capacitor in a standard electrical enclosure, ensuring the footprint fits the 436 mm by 670 mm by 155 mm dimensions and the unit weight of 22 kg. Secure with appropriate mounting hardware, wire to a 280 V, 50 Hz supply, and follow the provided manual for correct terminal connections and safety clearances. Proper installation delivers immediate reactive power correction and system stability.
This tank capacitor is designed for reactive power compensation in distribution panels, switchgear, and motor control environments. It improves power factor, reduces energy losses, and enhances voltage regulation in industrial facilities, making it a practical solution for both retrofit and new-build power quality initiatives.
Yes, the unit is RoHS compliant per EU directive 2011/65/EU with Amendment 2015/863 and accompanied by CMRT documentation. WEEE classification notes the product is not in WEEE scope. This combination supports compliant procurement in European markets and helps with supplier qualification and regulatory audits.
Match the rating to 75.2KVAR, voltage to 280V, frequency to 50Hz, and ensure the physical footprint fits within the enclosure (436x670x155 mm). Verify mounting suitability and electrical clearances, and reference the CLMD manuals for installation steps to ensure consistent performance and avoid under- or over-sizing reactive compensation.
ABB provides a manual for CLMD capacitor units in PDF format and a technical data sheet catalog for Power Quality Products in PDF. These resources cover installation steps, safety precautions, wiring diagrams, and performance specifications, enabling faster commissioning, routine maintenance, and ongoing operational reliability.
