ABB 1SAJ929180R0015 Cable - ETH-X1/X4 Open Wire IP20
Part Number: 1SAJ929180R0015
Quick Summary
Cable for ABB 1SAJ929180R0015 connects the UMC100.3 motor controller to the back-drawer terminal, delivering reliable field wiring for compact automation cabinets. Engineers frequently face tangled, time-consuming terminations in crowded panels; this 1.5 m open-wire, unshielded option reduces install time and minimizes signal integrity risk in environments with limited conduit access. The solution includes IP20 protection and strong declarations, with CMRT and REACH compliance supporting responsible sourcing, while ETIM and eClass classifications align with procurement data requirements. Built for universal motor controllers and DIN-rail oriented layouts, the cable enables fast commissioning, predictable performance, and easier maintenance in production lines and retrofit projects.
Product Information
Extended Description

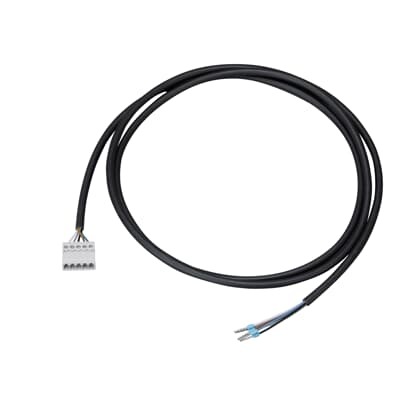

1SAJ929180R0015 ABB: CDP18-FBP.150 Cable ETH-X1/X4-open wire unshielded, length 1.5 m. Used as connection from the UMC100.3 motor controller to the drawer terminal in the back.
Country of Origin
China (CN)
Lead Time
67 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85444290
Product Main Type
CDP
Data Sheet, Technical Information
2CDC194003D0201b
Instructions and Manuals
2CDC194004M6801
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
23.5 mm
Product Net Depth / Length
1550 mm
Product Net Height
9 mm
Product Net Weight
60 g
Connecting Capacity
1x 0.34 mm²
Mounting Type
DIN-Rail with Adapter
Mounting on DIN Rail
No
Recommended Screw Driver
Pozidriv 1
Suitable For
UMC100.3
Suitable for Product Class
Universal Motor Controllers
Terminal Type
Push-in Spring Terminals
Wire Stripping Length
7 mm
Connecting Capacity UL/CSA
Flexible with Ferrule 1x 22 AWG | Rigid 1x 22 AWG
Degree of Protection
IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Motor Controllers
WEEE Category
Product Not in WEEE Scope
ATEX Certificate
Not available
Package Level 1 Units
bag 1 piece
Package Level 1 Width
165 mm
Package Level 1 Depth / Length
370 mm
Package Level 1 Height
10 mm
Package Level 1 Gross Weight
60 g
Package Level 1 EAN
4016779906593
eClass
V11.0 : 27242608
E-Number (Norway)
4552627
ETIM 6
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 7
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 8
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 9
EC001604 - Fieldbus, decentr. periphery - communication module
IDEA Granular Category Code (IGCC)
1722 >> Network cable
Object Classification Code
W
UNSPSC
26121609
