ABB 1SAJ929200R0120 CEM11-FBP Earth Leakage Monitor - CE
Part Number: 1SAJ929200R0120
Quick Summary
Earth leakage monitor CEM11-FBP detects leakage current to protect ABB motor controllers in industrial drive systems. Engineers often face nuisance trips and unclear fault thresholds that extend downtime and complicate maintenance. Certified to IEC/EN 60947-1 and IEC/EN 60947-4-1 with CE and RoHS compliance, the unit offers IP20 protection for enclosure mounting. Designed for compatibility with UMC100-FBP and UMC100.3, it delivers reliable monitoring without demanding changes to existing control architectures; the 24 V DC supply, 0.2 W power loss, and 1x 0.75-1.5 mm² wiring capacity support cost-efficient integration.
Product Information
Extended Description

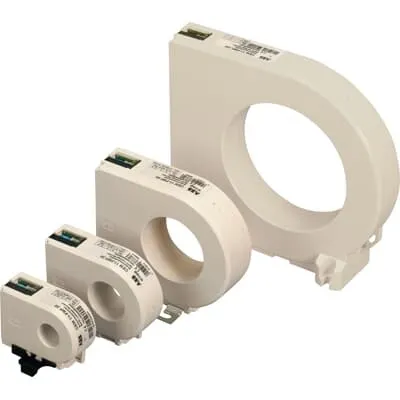

1SAJ929200R0120 ABB: CEM11-FBP.120 Earth Leakage Monitor features a 120 mm diameter through-hole. A threshold can be set, upon violation of this threshold a binary signal is outputted.
Minimum Order Quantity
1 piece
Customs Tariff Number
85043129
Product Main Type
CEM11-FBP
Data Sheet, Technical Information
CEM11-FBP Earth Leakage Monitor manual
Instructions and Manuals
CEM11-FBP Earth Leakage Monitor manual
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
210 mm
Product Net Depth / Length
190 mm
Product Net Height
38 mm
Product Net Weight
940 g
Connecting Capacity
1x 0.75-1.5 mm²
Mounting Position
Any
Mounting Type
Screw
Mounting on DIN Rail
No
Power Loss
Approximately 0.2 W
Rated Control Supply Voltage (Us)
24 V DC
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Recommended Screw Driver
Pozidriv 1
Setting Range
0.3 ... 13.6 A
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1
Suitable For
UMC100-FBP | UMC100.3
Suitable for Product Class
Universal Motor Controllers
Tightening Torque
Auxiliary Circuit 0.6 ... 1 N·m | Control Circuit 0.6 ... 1 N·m
Wire Stripping Length
7 mm
Connecting Capacity UL/CSA
Flexible with Ferrule 1x 18-16 AWG | Rigid 1x 18-16 AWG
Degree of Protection
IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Motor Controllers
RoHS Information
EU Declaration of Conformity / RoHS - Earth Leakage Monitor CEM11-FBP.xxx
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ATEX Certificate
Not available
Declaration of Conformity - CE
EU Declaration of Conformity / RoHS - Earth Leakage Monitor CEM11-FBP.xxx
Package Level 1 Units
box 1 piece
Package Level 1 Width
210 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Height
38 mm
Package Level 1 Gross Weight
0.945 kg
Package Level 1 EAN
4013614398421
eClass
V11.0 : 27242608
E-Number (Finland)
3709077
E-Number (Norway)
4552500
ETIM 6
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 7
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 8
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 9
EC001604 - Fieldbus, decentr. periphery - communication module
IDEA Granular Category Code (IGCC)
6312 >> Earth leakage devices
Object Classification Code
B
UNSPSC
41113645
Feature → Business Impact → Application: The 120 mm through-hole CEM11-FBP provides a robust sensing window that accommodates large motor drives and reduces installation complexity, delivering precise leakage detection and enabling rapid fault isolation in UMC100-based control architectures. This results in improved equipment uptime and lower maintenance costs for panel-mounted drives. Feature → Business Impact → Application: The binary output on threshold violation enables direct integration with PLCs and motor controllers, streamlining alarm signaling and fault response for faster commissioning and safer operation in manufacturing lines. Feature → Business Impact → Application: With 24 V DC control supply and low power loss (approximately 0.2 W), energy efficiency is enhanced and heat inside enclosures is minimized, supporting longer component life and reduced cooling needs in compact control panels. Feature → Business Impact → Application: Screw mounting in any orientation plus a 210 × 190 × 38 mm profile and IP20 protection provide installation flexibility in machine rooms and cabinets, simplifying retrofits and new builds alike. Feature → Business Impact → Application: UL/CSA-compatible terminations (1x 18-16 AWG) and 7 mm wire stripping length shorten wiring time and reduce field wiring errors, improving overall project ROI in motor control applications. Feature → Business Impact → Application: Compliance with IEC/EN 60947-1 and 60947-4-1, RoHS, and CE declarations reduces regulatory risk and supports traceability in regulated industries, while compatibility with UMC100-FBP and UMC100.3 ensures a future-proof path for universal motor controllers.
Get a Quick Quote for a ABB 1SAJ929200R0120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SAJ929200R0120?
Enquire Now
FAQs
The device uses screw mounting with a 210×190×38 mm footprint and IP20 protection. Connect 24 V DC to the rated control inputs, wire 1x 0.75–1.5 mm² conductors, and land UL/CSA rated terminals 1x 18-16 AWG. Set the leakage threshold within 0.3–13.6 A and verify the binary output is recognized by the controller for proper alarm signaling and fault isolation.
Setting range is 0.3 to 13.6 A, with a binary output that signals when the threshold is exceeded. This enables fast interlock or alarm actions in ABB motor control architectures and supports precise protection for UMC-based drives.
Yes. It is designed for Universal Motor Controllers and is labeled as suitable for UMC100-FBP and UMC100.3, providing compatible protection and signaling without requiring major control-system changes.
The device complies with IEC/EN 60947-1 and 60947-4-1, carries CE and RoHS declarations, and includes IP20 protection. These certifications support regulatory compliance in mainstream industrial environments and equipment harmonization across regions.
The monitor’s low power loss (≈0.2 W), compact enclosure, and straightforward field wiring reduce energy usage and installation time. Its binary signaling simplifies trouble-shooting, lowers downtime, and improves uptime metrics, contributing to a favorable total cost of ownership for motor-driven applications.
