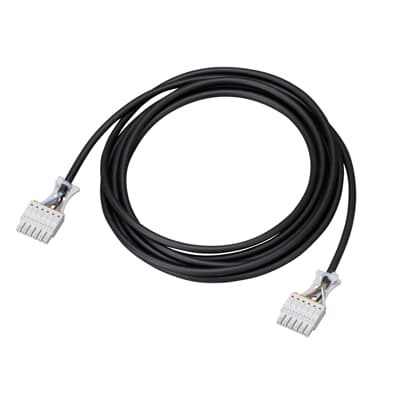

ABB 1SAJ929230R0015 CDP Cable - IP20 Protection Rating
Part Number: 1SAJ929230R0015
Quick Summary
ABB 1SAJ929230R0015 CDP Cable provides a robust Ethernet link to UMC100.3 motor controllers for dependable, field-level connectivity. Engineers often wrestle with signal integrity and installation delays when using long unshielded cables in control cabinets; this cable reduces those risks with a precise 1.5 m length and push-in terminals. It carries IP20 protection, REACH compliance, and CMRT sourcing transparency, helping teams meet safety, environmental, and supplier-responsibility requirements across industrial projects. Designed for ABB's universal motor controllers ecosystem, it simplifies panel wiring, speeds commissioning, and lowers total cost of ownership through reliable performance and easy field maintenance.
Product Information
Extended Description
1SAJ929230R0015 ABB: CDP23.150 cable from Ethernet
interface like MTQ22 or PNQ22 to UMC100.3.
Minimum Order Quantity
1 piece
Customs Tariff Number
85444290
Product Main Type
CDP
Data Sheet, Technical Information
2CDC135032D0201
Instructions and Manuals
2CDC135032D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
23.3 mm
Product Net Depth / Length
1500 mm
Product Net Height
8.3 mm
Product Net Weight
100 g
Connecting Capacity
1x 0.34 mm²
Mounting Type
Wall Duct
Mounting on DIN Rail
No
Recommended Screw Driver
Pozidriv 1
Suitable For
UMC100.3 | PNQ22-FBP.0:MTQ22-FBP.0
Suitable for Product Class
Universal Motor Controllers | Universal Motor Controllers Accessories
Terminal Type
Push-in Spring Terminals
Wire Stripping Length
7 mm
Connecting Capacity UL/CSA
Flexible with Ferrule 1x 22 AWG | Rigid 1x 22 AWG
Degree of Protection
IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Motor Controllers
WEEE Category
Product Not in WEEE Scope
ATEX Certificate
Not available
Package Level 1 Units
bag 1 piece
Package Level 1 Width
210 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Height
38 mm
Package Level 1 Gross Weight
100 g
Package Level 1 EAN
4013614496424
eClass
V11.0 : 27242608
E-Number (Norway)
4552633
ETIM 6
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 7
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 8
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 9
EC001604 - Fieldbus, decentr. periphery - communication module
IDEA Granular Category Code (IGCC)
1722 >> Network cable
Object Classification Code
W
UNSPSC
26121609
Unshielded Ethernet CDP cable delivers cost-effective connectivity with a straightforward termination process. Feature → Business Impact → Application: Unshielded design minimizes shielding complexity while maintaining signal integrity while reducing copper costs and simplifying installation in ABB controller networks; Application: control panels and machine cabinets. Feature → Business Impact → Application: 1.5 m length provides flexible routing between MTQ22/PNQ22 interfaces and UMC100.3, cutting cable slack and enabling tidy wiring in crowded panels; Application: machine backplane wiring. Feature → Business Impact → Application: Push-in Spring Terminals enable tool-free termination, decreasing commissioning time and minimizing miswirings; Application: rapid maintenance and field upgrades. Feature → Business Impact → Application: IP20 rating protects against incidental finger contact and dust intrusion in indoor environments, supporting compliance with general electrical installation standards; Application: indoor control panels and wall-duct installations. Feature → Business Impact → Application: UL/CSA conductor compatibility (1x 22 AWG ferrule compatibility) ensures reliable terminations with common wire ferrules; Application: maintenance-friendly splices and future-proofing. Feature → Business Impact → Application: REACH and CMRT declarations support responsible procurement and supply-chain transparency; Application: audits and supplier compliance.
Get a Quick Quote for a ABB 1SAJ929230R0015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SAJ929230R0015?
Enquire Now
FAQs
Route the 1.5 m unshielded cable through the control panel or wall duct, terminate with Push-in Spring Terminals, and strip 7 mm of insulation. Keep a direct path to the UMC100.3 interface to preserve signal integrity. Ensure compatibility with UL/CSA 22 AWG ferrule connections during final wiring.
The cable is designed for Ethernet interfaces like MTQ22 or PNQ22 to UMC100.3, featuring unshielded conductors of 0.34 mm² and push-in terminals for fast, reliable connections in ABB controller ecosystems.
The product carries an IP20 protection rating and REACH/CMRT compliance, supporting indoor cabinet use and responsible sourcing. It is not rated for hazardous areas; ensure installation remains within standard control cabinet environments.
The cable includes CMRT for conflict minerals reporting, REACH declaration for chemical compliance, ETIM classifications for fieldbus peripherals, and eClass references, along with EAN/ET numbers to aid sourcing and regulatory audits.
Push-in Spring Terminals enable faster, tool-free terminations, reducing commissioning time and the risk of loose connections. The 1.5 m length minimizes routing complexity, while IP20 protection and standard 22 AWG compatibility simplify maintenance and contribute to higher uptime and lower total cost of ownership in UMC100.3 deployments.
