ABB 1SAJ929240R0015 Cable SMK3.0 Drawer Unshielded - IP20
Part Number: 1SAJ929240R0015
Quick Summary
ABB 1SAJ929240R0015 Cable SMK3.0 provides a reliable drawer-to-SMK3.0 connection for control panels. Design teams often face space constraints and signal integrity issues with unshielded drawer cables in compact enclosures. IP20 protection, REACH declaration, and CMRT support safe indoor use and regulatory compliance for modern manufacturing environments. The 1.5 m length, SMK3.0 compatibility, and 5‑pole terminal block optimize ABB motor controller accessories, delivering consistent performance while reducing wiring complexity and installation time.
Product Information
Extended Description

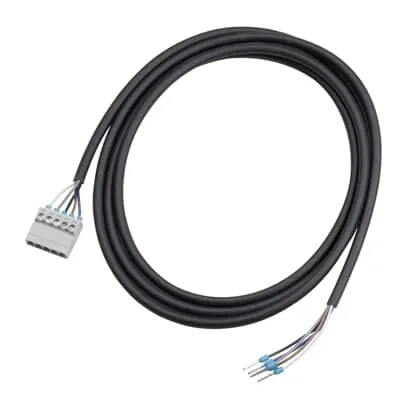

1SAJ929240R0015 ABB: CDP24.150 Cable SMK3.0 - Drawer unshielded, length 1.5 m. Used as connection from the drawer terminal in the back to the SMK3.0 single mounting kit. 5-pole terminal block included.
Country of Origin
China (CN)
Lead Time
97 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Minimum Order Quantity
1 piece
Customs Tariff Number
85444290
Product Main Type
CDP
Data Sheet, Technical Information
2CDC135032D0201
Instructions and Manuals
2CDC135032D0201
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
20 mm
Product Net Depth / Length
1510 mm
Product Net Height
11 mm
Product Net Weight
60 g
Connecting Capacity
1x 0.34 mm²
Mounting Type
Wall Duct
Mounting on DIN Rail
No
Recommended Screw Driver
Pozidriv 1
Suitable For
SMK3.0
Suitable for Product Class
Universal Motor Controllers Accessories
Terminal Type
Push-in Spring Terminals
Wire Stripping Length
7 mm
Connecting Capacity UL/CSA
Flexible with Ferrule 1x 22 AWG | Rigid 1x 22 AWG
Degree of Protection
IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Info for Motor Controllers
WEEE Category
Product Not in WEEE Scope
ATEX Certificate
Not available
Package Level 1 Units
bag 1 piece
Package Level 1 Width
210 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Height
38 mm
Package Level 1 Gross Weight
60 g
Package Level 1 EAN
4013614496448
eClass
V11.0 : 27242608
E-Number (Norway)
4552634
ETIM 6
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 7
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 8
EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 9
EC001604 - Fieldbus, decentr. periphery - communication module
IDEA Granular Category Code (IGCC)
1722 >> Network cable
Object Classification Code
W
UNSPSC
26121609
