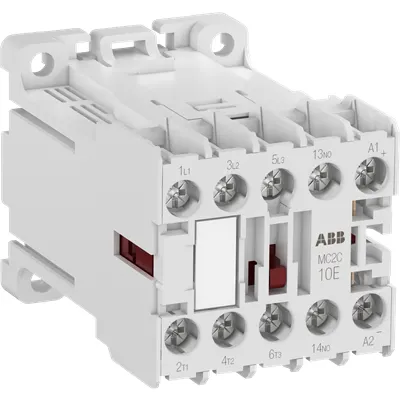

ABB MC2C301ATWG Mini Contactor - IEC UL Listed
Part Number: 1SAL101958R9902
Quick Summary
ABB MC2C301ATWG Mini Contactor is a compact 3-pole device with a 48 V DC coil, designed to control single- and three-phase loads up to 5.5 kW (AC-3) and 20 A at up to 690 V. In tight control panels, space is at a premium; this dimension-optimized solution helps you fit reliable switching where it matters. It carries core IEC/EN and UL approvals, providing regulatory confidence across global sites. With RoHS and REACH declarations, material compliance is also assured. For engineers and procurement teams, the combination of high performance and a small footprint translates into faster installation, lower panel depth, and reduced total cost of ownership. Secondary keywords include mini contactor, wall mounting, and DIN rail mounting to support broader search intent.
Product Information
Extended Description
1SAL101958R9902 ABB: The MC2C301ATWG mini contactor is a dimension optimized 3 pole contactor with 1 NC auxiliary contact and screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is equipped with an extended operating limits coil and it's suitable for wall or rail mounting.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Chapter 4 (InDesign) - Main catalog Motor Protection and control
Instructions and Manuals
Installation Instructions - M Mini Contactor, Mini Contactor Relay
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Depth / Length
68 mm
Product Net Height
48 mm
Product Net Weight
0.25 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Standards
IEC/EN 60947-1 | IEC/EN 60947-4-1 | IEC/EN 60947-5-1 | UL 60947-1 | UL 60947-4-1 | UL 60947-5-1
Rated Operational Voltage
Auxiliary Circuit 690 V AC | Auxiliary Circuit 440 V DC | Main Circuit 690 V AC | Main Circuit 440 V DC
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC | Control Circuit DC | Main Circuit 50 Hz | Main Circuit 60 Hz | Main Circuit DC
Conventional Free-air Thermal Current (Ith)
Auxiliary Circuit 10 A | Main Circuit 20 A
Rated Operational Current AC-1 (Ie)
(690 V) 55 °C 20 A | (690 V) 70 °C 16 A | (230 V) 55 °C 20 A | (230 V) 70 °C 16 A | (400 V) 55 °C 20 A | (400 V) 70 °C 16 A | (500 V) 55 °C 20 A | (500 V) 70 °C 16 A
Rated Operational Current AC-3 (Ie)
(230 V) 55°C 12 A | (400 V) 55 °C 12 A | (500 V) 55 °C 10 A | (690 V) NO 55°C 5 A
Rated Operational Current AC-15 (Ie)
(240 V) 6 A | (400 V) 4 A | (500 V) 2.5 A | (690 V) 1.5 A
Rated Operational Current DC-13 (Ie)
(24 V) 5 A | (48 V) 2.5 A | (125 V) 0.55 A | (250 V) 0.3 A | (440 V) 0.15 A
Rated Operational Power AC-3 (Pe)
(230 V) Three Phase 3 kW | (400 V) Three Phase 5.5 kW | (500 V) Three Phase 5.5 kW | (690 V) Three Phase, NO 4 kW
Rated Breaking Capacity AC-3
8 x Ie / AC-3
Rated Making Capacity AC-3
10 x Ie / AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
Rated Insulation Voltage (Ui)
750 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV | Main Circuit 6 kV
Maximum Electrical Switching Frequency
(AC-1) 300 cycles per hour | (AC-15) 360 cycles per hour | (AC-3) 1200 cycles per hour | (DC-1) 600 cycles per hour | (DC-13) 360 cycles per hour | (DC-3) 600 cycles per hour
Mechanical Durability
Nr. Operations 10000000 cycle
Minimum Switching Capacity
Auxiliary Circuit 17 V | Auxiliary Circuit 5 mA
Coil Operating Limits
(acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
Rated Control Circuit Voltage (Uc)
48 V DC
Coil Consumption
Average Holding Value DC 4 W | Average Pull-in Value DC 4 W
Power Loss
at Rated Operating Conditions AC-1 per Pole 0.7 W
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Connecting Capacity Main Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible 1/2x 0.75 ... 2.5 mm² | Rigid 1x 0.75 ... 4 mm² | Rigid 2x 0.75 ... 2.5 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible 1/2x 0.75 ... 2.5 mm² | Rigid 1x 0.75 ... 4 mm² | Rigid 2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible 1/2x 0.75 ... 2.5 mm² | Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm | Control Circuit 9 mm | Main Circuit 9 mm
Degree of Protection
Auxiliary Circuit Terminals IP20 | Control Circuit Terminals IP20 | Main Circuit Terminals IP20
Recommended Screw Driver
Pozidriv 2
Tightening Torque
Auxiliary Circuit 0.8 ... 1.0 N·m | Control Circuit 0.8 N·m | Main Circuit 0.8 ... 1.0 N·m
Terminal Type
Screw Terminals
Mini Contactor Type
Mini Contactor
Product Name
Mini Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V AC
General Use Rating UL/CSA
(600 V AC) 20 A
Horsepower Rating UL/CSA
(115 V AC) Single Phase 0.5 Hp | (200 V AC) Three Phase 3 Hp | (220 ... 240 V AC) Three Phase 3 Hp | (230 V AC) Single Phase 2 Hp | (440 ... 480 V AC) Three Phase 7.5 Hp | (550 ... 600 V AC) Three Phase 10 Hp
Connecting Capacity Main Circuit UL/CSA
Stranded 1/2x 18-12 AWG
Connecting Capacity Auxiliary Circuit UL/CSA
Stranded 1/2x 18-12 AWG
Contact Rating UL/CSA
A600 | Q600
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb | Control Circuit 7 in·lb | Main Circuit 7 in·lb
Full Load Amps Motor Use
(115 V AC) Single Phase 9.8 A | (200 V AC) Three Phase 11 A | (220 ... 240 V AC) Three Phase 9.6 A | (230 V AC) Single Phase 12 A | (440 ... 480 V AC) Three Phase 11 A | (550 ... 600 V AC) Three Phase 11 A
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -55 ... +80 °C
Maximum Operating Altitude Permissible
3000 m
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 25g
Resistance to Vibrations
5g 3 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - MC1, MC2, MCR, MACL, MACR series - Mini Contactors
BV Certificate
BV Certificate - MC1, MC2, MCR, MACL, MACR - Mini Contactors
CB Certificate
CB Certificate - MC1, MC2 - Mini Contactors
CQC Certificate
CQC Certificate, Mini Contactor, MC1, MC2, MC1…-RAIL, MC2…-RAIL, Made in Bulgaria
Declaration of Conformity - CCC
CCC Declaration of Conformity, Mini Contactor, MC1, MC2, MC1…-RAIL, MC2…-RAIL, Made in Bulgaria
Declaration of Conformity - CE
EU Declaration of Conformity - MC1, MC2, MCR,MACL, MARL,MACN, MARN, MP0, MMH0, WKMIU, MVB0R, MVB0L, MVP0C, BEMC - Mini Contactor
Declaration of Conformity - UKCA
UK Declaration of Conformity - MC1, MC2, MCR,MACL, MARL,MACN, MARN, MP0, MMH0, WKMIU, MVB0R, MVB0L, MVP0C, BEMC - Mini Contactor
RINA Certificate
RINA Certificate - MC2, MACN, MACL, MARN, MARL - Mini Contactors
UL Certificate
UL Certificate of Compliance - MC1 (Pin), MC2 (Pin) - Mini Contactor
Package Level 1 Units
box 1 piece
Package Level 1 Width
46 mm
Package Level 1 Depth / Length
49 mm
Package Level 1 Height
70 mm
Package Level 1 Gross Weight
0.255 kg
Package Level 1 EAN
4013614545238
Package Level 2 Units
box 10 piece
Package Level 2 Width
243 mm
Package Level 2 Depth / Length
106 mm
Package Level 2 Height
80 mm
Package Level 2 Gross Weight
2.61 kg
Package Level 2 EAN
4013614545535
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
E-Number (Finland)
3709531
Feature → Business Impact → Application: The MC2C301ATWG’s 3 NO main contacts plus 1 NC auxiliary contact deliver robust control for three-phase loads while preserving compact footprint, enabling up to 5.5 kW (AC-3) at 230–690 V and 20 A. This translates to higher system efficiency and reduced hardware count in industrial drives, HVAC, and pumping applications. Use this for space-constrained switchgear where dependable control is essential. Feature → Business Impact → Application: A 48 V DC coil reduces control power consumption and heat in control cabinets, improving overall energy management and reliability in building automation and modular packaging lines. Feature → Business Impact → Application: Screw terminals provide fast, secure wiring with flexible conductor ranges, enabling quick field installation and easier maintenance in panel builders and retrofit projects. Feature → Business Impact → Application: TH35 DIN-rail mounting compatibility simplifies integration into standard enclosures, delivering faster commissioning and lower mounting effort in industrial control panels. Feature → Business Impact → Application: IEC/EN 60947 and UL 60947 certifications reduce regulatory risk, ensuring compliance across multinational deployments in manufacturing, process, and infrastructure sectors.
Get a Quick Quote for a ABB 1SAL101958R9902
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SAL101958R9902?
Enquire Now
FAQs
The MC2C301ATWG supports DIM rail mounting on TH35-15 or TH35-7.5 profiles, enabling quick installation in standard control panels. It can also be wall-mounted in appropriate enclosures, providing flexible integration for space-constrained layouts without compromising accessibility to wiring and terminals.
For AC-3 operation at 230 V, the rated current is 12 A and at 400 V it is 12 A, with reduced current at higher voltages (up to 16 A at 690 V NO). Auxiliary circuit ratings allow 10 A, while main circuit current and voltage ratings align with IEC/EN 60947-4-1 and UL 60947-4-1 standards, ensuring reliable switching for motor loads.
Yes. Its compact 3-pole form factor, 45 mm width, 68 mm depth, and 48 mm height optimize panel space. Screw-terminal wiring and DIN-rail compatibility simplify installation in limited-access panels, while the 48 VDC coil reduces control power consumption and heat generation in dense control cabinets.
The device adheres to IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, plus UL 60947-1, UL 60947-4-1, UL 60947-5-1. It also carries RoHS, REACH declarations, and CE/UKCA compatibility, supporting safe, compliant deployment in global manufacturing, automation, and building systems.
With mechanical durability rated at up to 10 million cycles and low coil consumption (4 W holding/pull-in), maintenance intervals extend and energy costs stay predictable. The compact footprint reduces panel real estate, while robust standards minimize regulatory risk, delivering a compelling total cost of ownership for OEMs and maintenance teams.
