ABB 1SAM201910R1004 Shunt Trip – UL/CE Certified
Part Number: 1SAM201910R1004
Quick Summary
ABB 1SAM201910R1004 is a shunt-trip motor starter for remote tripping in control panels. Engineers often struggle with reliable, fast disconnect during faults, risking equipment damage and downtime. This unit adheres to IEC 60947-1 and IEC 60947-4-1, with CE and UL/CSA certifications supported by broader global approvals to simplify compliance. Beyond compliance, it integrates smoothly with MS116, MS132 and MS165 assemblies, delivering robust protection while enabling efficient motor control panel design and maintenance savings.
Product Information
Extended Description

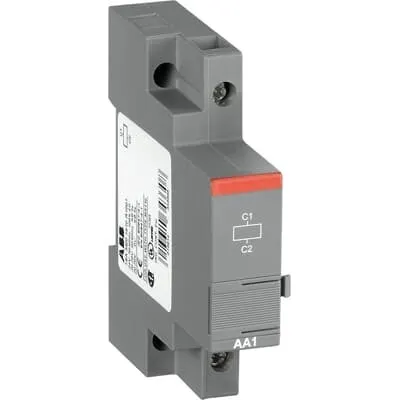

1SAM201910R1004 ABB: Shunt trips AA1 release manual motor starters used for remote tripping. They are attached laterally on the left side of MS116, MS132 or MS165. In accordance with IEC 60947-1, the manual motor starter is switched off by AA1 if the supply voltage of the shunt trip measured during the tripping operation remains between 70% and 110% of the rated control circuit supply voltage.
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Installation instructions - Manual Motor Starter MS116 | Installation Instructions - Manual Motor Starter magnetic only MO132 MO132-B | Installation Instructions - Manual Motor Starter MS132 MS132-B | Installation Instructions - MS132-K, MS132-KB Manual Motor Starter | Installation Instructions - Manual Motor Starter MS165 MS165-B | Installation Instructions - Manual Motor Starter magnetic only MO165 MO165-B
Instructions and Manuals (Part 3)
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
18 mm
Product Net Height
90 mm
Product Net Depth / Length
75.5 mm
Product Net Weight
0.1 kg
Rated Frequency (f)
Auxiliary Circuit 50 Hz | Auxiliary Circuit 60 Hz | Auxiliary Circuit DC
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui)
690 V
Power Loss
29.5 W
Terminal Type
Screw Terminals
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible 1/2x 0.75 ... 2.5 mm² | Rigid 1/2x 1 ... 4 mm²
Tightening Torque
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length
Auxiliary Circuit 10 mm
Recommended Screw Driver
Pozidriv 2
Mounting Position
1 ... 6
Standards
CSA 22.2 No. 14 | IEC/EN 60947-1 | IEC/EN 60947-4-1 | UL 508 | UL 60947-1 | UL 60947-4-1
Remarks
Please consider 15 min OFF-period after 5s ON-period. | The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request.
Connecting Capacity Auxiliary Circuit UL/CSA
Flexible 1/2x 16-12 AWG | Stranded 1/2x 16-12 AWG
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 15g
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Declaration for all Manual Motor Starters
RoHS Information
RoHS II Declaration for all Manual Motor Starters
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Manual Motor starters
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate - MS132, MO132, HK1, HKF1,SK1, CK1, UA1, AA1 - Manual Motor Starter
BV Certificate
BV Certificate - MS165, MO165, UA1, AA1, HK1, HKF1, SK1, CK1 - Manual Motor Starter
cUL Certificate
cUL_E137861
Declaration of Conformity - CE
EU Declaration of Conformity - MS1x - Accessories for Manual Motor Starters
Declaration of Conformity - UKCA
UK Declaration of Conformity - MS1x - Accessories for Manual Motor Starters
DNV GL Certificate
DNV Certificate - MS132, MS132-K, MO132, HK1, HKF1,SK1, CK1, UA1, AA1
LR Certificate
1SAA963001-0502 | LR Certificate MS165, MO165
RINA Certificate
Rina Certificate - MS132, MO132, MS132-K, HK1, HK1-K, HKF1, HKF1-K,SK1, SK1-K, CK1, UA1, AA1
UL Certificate
UL_E137861
Package Level 1 Units
box 1 piece
Package Level 1 Width
93 mm
Package Level 1 Depth / Length
25 mm
Package Level 1 Height
80 mm
Package Level 1 Gross Weight
0.11 kg
Package Level 1 EAN
4013614343360
Package Level 2 Units
carton 80 piece
Package Level 2 Width
280 mm
Package Level 2 Depth / Length
395 mm
Package Level 2 Height
210 mm
Package Level 2 Gross Weight
9.175 kg
Package Level 2 EAN
4013614526077
Object Classification Code
Q
ETIM 4
EC002498 - Accessories for low-voltage switch technology
ETIM 5
EC001023 - Shunt release (for power circuit breaker)
ETIM 6
EC001023 - Shunt release (for power circuit breaker)
ETIM 7
EC001023 - Shunt release (for power circuit breaker)
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
eClass
V11.0 : 27370418
UNSPSC
39121521
IDEA Granular Category Code (IGCC)
4879 >> Shunt release (for power circuit breaker)
E-Number (Norway)
4364020
