ABB 1SAM301901R1002 Motor Starters - IP20, 690V
Part Number: 1SAM301901R1002
Quick Summary
CK1-20 Short-Circuit Signaling Contact 2 NO from ABB provides reliable tripping indication for manual motor starters in protection circuits. This accessory helps maintenance teams quickly identify short-circuit trips without invasive testing, reducing downtime and repair time. It carries CE and UL/CSA certifications with IP20 protection, RoHS and REACH compliance, making it suitable for regulated industrial environments. By integrating with ABB MS series starters, it enhances safety, wiring integrity, and field-service readiness while maintaining a compact panel footprint. The device supports screw-terminal wiring and offers robust electrical durability up to 10,000 cycles, ensuring long-term reliability across demanding applications.
Product Information
Extended Description

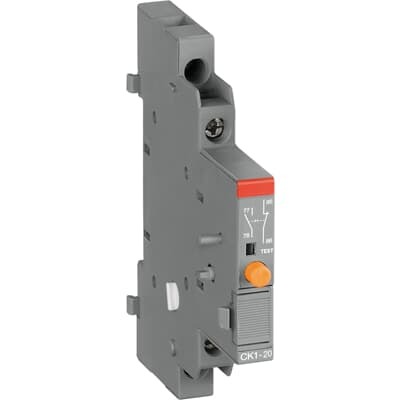

1SAM301901R1002 ABB: Signaling contacts CK1 with screw terminals signal the tripping of the manual motor starter in case it was caused by a short-circuit. For CK1 the indication on the device itself is done with a protruding orange button. The contact positions of CK1 need to be manually reset after a tripping event by pushing the orange button. They are attached on the right side of the manual motor starter MS116, MS132 or MS165. Signaling contacts CK1 are available as normally open or normally closed contacts.
Minimum Order Quantity
2 piece
Customs Tariff Number
85365080
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
2CDC131027M6802 | Installation Instructions - Manual Motor Starter MS165 MS165-B
Instructions and Manuals (Part 3)
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
9 mm
Product Net Height
90 mm
Product Net Depth / Length
78 mm
Product Net Weight
0.035 kg
Rated Operational Voltage
690 V AC | 600 V DC | Main Circuit 690 V
Rated Impulse Withstand Voltage (Uimp)
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui)
690 V
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Degree of Protection
IP20
Electrical Durability
10000 cycle
Mechanical Durability
Nr. Operations 10000 cycle
Terminal Type
Screw Terminals
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm² | Flexible 1/2x 0.75 ... 1.5 mm² | Rigid 1/2x 1 ... 1.5 mm²
Tightening Torque
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length
Auxiliary Circuit 8 mm
Recommended Screw Driver
M3 | Pozidriv 2
Mounting Position
1 ... 6
Maximum Operating Voltage UL/CSA
Main Circuit 600 V AC
Connecting Capacity Auxiliary Circuit UL/CSA
Flexible 1/2x 16-14 AWG | Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA
B600 | Q600
Ambient Air Temperature
Operation -25 ... +60 °C | Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27
11 ms Pulse 25g
Resistance to Vibrations
5g 3 ... 150 Hz
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh Declaration for all Manual Motor Starters
RoHS Information
RoHS II Declaration for all Manual Motor Starters
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Manual Motor starters
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
A2L Certificate – IEC
A2L Certificate - MS132, MO132, MS116 series, HK1, HKF1, SK1, CK1 - Manual Motor Starter
ABS Certificate
ABS Certificate - MS132, MO132, HK1, HKF1,SK1, CK1, UA1, AA1 - Manual Motor Starter
BV Certificate
BV Certificate - MS165, MO165, UA1, AA1, HK1, HKF1, SK1, CK1 - Manual Motor Starter
CB Certificate
CB Certificate - HK1, HK1-K, SK1, SK1-K, SK1-AR, SK1-ARK, CK1 - Manual Motor Starter Accessories
CCC Certificate
CCC Certificate, Auxiliary contacts, HK1-xx,HK1-xxK,SK1-xx,SK1-xxK,CK1-xx, Made in Bulgaria
CQC Certificate
CQC Certificate, Auxiliary contacts, HK1-xx,HK1-xxK,SK1-xx,SK1-xxK,CK1-xx, Made in Bulgaria
cUL Certificate
cUL_E137861
Declaration of Conformity - CCC
CCC Declaration of Conformity, Auxiliary contacts, HK1-xx,HK1-xxK,SK1-xx,SK1-xxK,CK1-xx, Made in Bulgaria
Declaration of Conformity - CE
EU Declaration of Conformity - HKF1-x, HK1-x, SK1-x, CK1-x - Manual Motor Starter
Declaration of Conformity - UKCA
UK Declaration of Conformity - HKF1-x, HK1-x, SK1-x, CK1-x - Manual Motor Starter
DNV GL Certificate
DNV Certificate - MS132, MS132-K, MO132, HK1, HKF1,SK1, CK1, UA1, AA1
LR Certificate
1SAA963001-0502 | LR Certificate MS165, MO165
RINA Certificate
Rina Certificate - MS132, MO132, MS132-K, HK1, HK1-K, HKF1, HKF1-K,SK1, SK1-K, CK1, UA1, AA1
UL Certificate
UL_E137861
Package Level 1 Units
box 2 piece
Package Level 1 Width
25 mm
Package Level 1 Depth / Length
80 mm
Package Level 1 Height
93 mm
Package Level 1 Gross Weight
0.08 kg
Package Level 1 EAN
4013614481536
Package Level 2 Units
160 piece
Package Level 2 Width
280 mm
Package Level 2 Depth / Length
395 mm
Package Level 2 Height
210 mm
Package Level 2 EAN
4013614526022
Object Classification Code
Q
ETIM 4
EC002498 - Accessories for low-voltage switch technology
ETIM 5
EC000041 - Auxiliary contact block
ETIM 6
EC000041 - Auxiliary contact block
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
eClass
V11.0 : 27371302
UNSPSC
39121522
IDEA Granular Category Code (IGCC)
4743 >> Auxiliary contact block
E-Number (Finland)
3706161
E-Number (Norway)
4364491
E-Number (Sweden)
3110146
Feature: CK1-20 signaling contact provides two normally open contacts for explicit trip indication. Business Impact: quick visual confirmation of a short-circuit event reduces mean time to repair (MTTR). Application: ideal for MS116, MS132 and MS165 manual motor starters in panel assemblies. Feature: Screw terminals deliver secure, vibration-resistant connections. Business Impact: minimizes wiring faults and re-termination costs in harsh industrial environments. Application: supports robust field wiring on CK1 auxiliary blocks. Feature: Rated main circuit voltage up to 690 V AC (600 V DC). Business Impact: broad compatibility with standard industrial mains reduces integration time. Application: suitable for machinery and control panels using high-voltage motor circuits. Feature: IP20 protection and compact footprint (9 mm width). Business Impact: allows dense panel layouts with reliable protection. Application: fits alongside MS starters in space-constrained panels. Feature: Manual reset via protruding orange button after trip. Business Impact: prevents inadvertent re-tripping and enables deliberate restart. Application: straightforward field servicing and maintenance. Feature: Verified compliance (CE, UL/CSA, RoHS, REACH). Business Impact: simplifies procurement, auditing, and multi-region deployments. Application: supports global installations across regulated environments.
