ABB 1SAM401907R1003 Motor Starters - UL/CE Shunt Release
Part Number: 1SAM401907R1003
Quick Summary
ABB 1SAM401907R1003 Motor Starters provide reliable shunt release control for low-voltage protection in industrial panels. Engineers often struggle with wiring flexibility, component compatibility, and meeting global compliance within compact enclosures. This solution aligns with CE, UL, and UKCA certifications, plus RoHS compliance and UL 508 requirements, enabling broad-market deployment. Designed for panel builders and control cabinet integrators, it supports a range of conductor sizes and offers predictable release behavior under fault conditions. By choosing ABB, facilities can reduce field rework, simplify maintenance, and improve lifecycle cost through standardized parts and documented performance. The combination of robust mechanical design and clear engineering data helps teams accelerate procurement and ensure consistent, safe operation across diverse environments.
Product Information
Extended Description

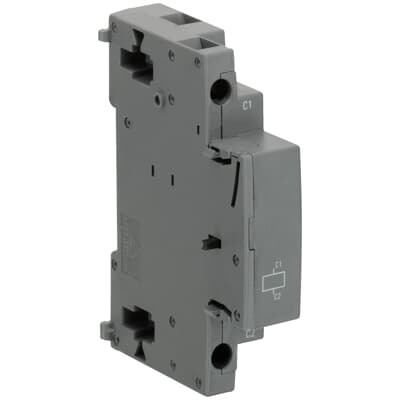

1SAM401907R1003 ABB: AA4-230 Shunt release
Minimum Order Quantity
1 piece
Customs Tariff Number
85369095
Data Sheet, Technical Information
1SBC100173C0201
Product Net Width
37 mm
Product Net Height
100 mm
Product Net Depth / Length
84 mm
Product Net Weight
0.128 kg
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.5 ... 1.5 mm² | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible 1/2x 0.5 ... 1.5 mm² | Flexible 1/2x 0.75 ... 1 mm² | Rigid 1/2x 0.5 ... 1.5 mm² | Rigid 1/2x 0.75 ... 2.5 mm²
Tightening Torque
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length
Auxiliary Circuit 10 mm
Recommended Screw Driver
Pozidriv 2
Standards
CSA 22.2 No. 14 | IEC/EN 60947-1 | IEC/EN 60947-4-1 | UL 508
Connecting Capacity Auxiliary Circuit UL/CSA
Flexible 1/2x 18-14 AWG | Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA
Auxiliary Circuit 7 ... 10.3 in·lb
Ambient Air Temperature
Operation -20 ... +60 °C | Storage -50 ... +80 °C
RoHS Information
1SAD938506-0050 | EU Declaration of Conformity - MO450, MO495, MO496, HK4, HKS4, SK4, UA4, AA4 - Manual Motor Starter
RoHS Status
Following EU Directive 2011/65/EU
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Manual Motor starters
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
BV Certificate
1SAA937000-0201
Declaration of Conformity - CE
1SAD938506-0050 | EU Declaration of Conformity - MO450, MO495, MO496, HK4, HKS4, SK4, UA4, AA4 - Manual Motor Starter
Declaration of Conformity - UKCA
1SAD938500-1050 | 1SAD938500-1051
DNV Certificate
1SAA937000-0301
GL Certificate
1SAA937000-0404
UL Certificate
UL Certificate - HK4, HKS4, SK4, UA4, AA4 - Manual Motor Starter
Package Level 1 Units
carton 1 piece
Package Level 1 Width
37 mm
Package Level 1 Depth / Length
84 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.133 kg
Package Level 1 EAN
4013614266003
ETIM 4
EC002498 - Accessories for low-voltage switch technology
ETIM 5
EC001023 - Shunt release (for power circuit breaker)
ETIM 6
EC001023 - Shunt release (for power circuit breaker)
ETIM 7
EC001023 - Shunt release (for power circuit breaker)
ETIM 8
EC001023 - Shunt release (for power circuit breaker)
eClass
V11.0 : 27370418
UNSPSC
39121521
IDEA Granular Category Code (IGCC)
4879 >> Shunt release (for power circuit breaker)
E-Number (Finland)
3707917
E-Number (Sweden)
3112354
Feature → Business Impact → Application: Flexible auxiliary circuit connections with ferrule 1/2x 0.5 … 1.5 mm² or 0.75 … 2.5 mm² enables quick, reliable terminations, reducing installation time and wiring errors in control panels; Application in panel assemblies and low-voltage switchgear where diverse conductor sizes are common. Feature → Business Impact → Application: Tightening torque of 0.8 … 1.2 N·m (UL/CSA 7 … 10.3 in·lb) ensures consistent, vibration-resistant mounting, lowering field retightening needs and improving service life; Application in cabinets subject to variable operating conditions. Feature → Business Impact → Application: Compact dimensions (37 mm width, 100 mm height, 84 mm depth) and 0.128 kg weight minimize required panel footprint, enabling denser installations and easier retrofits; Application in space-constrained control rooms and retrofit projects. Feature → Business Impact → Application: Compliance to IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508 and RoHS signals clear regulatory alignment, simplifying procurement across regions; Application in global manufacturing lines needing harmonized approvals. Feature → Business Impact → Application: Clear data sheet and standardization (Data Sheet 1SBC100173C0201) support faster engineering reviews and safer maintenance routines; Application in ongoing lifecycle management and operator training. Feature → Business Impact → Application: WEEE B2B and MT dynamic certifications plus ETIM alignment (EC001023) improve catalog accuracy and reduce compliance inquiries; Application in parts catalogs and procurement workflows.
