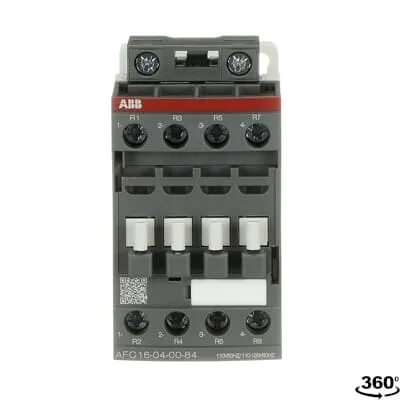

ABB 1SBL171101R8400 Block Contactor - UL/CSA 600 V
Part Number: 1SBL171101R8400
Quick Summary
Block Contactor ABB AFC16-04-00-84 is a reliable motor-control device designed for mains power circuits in industrial panels. Engineers often contend with mismatched coil voltages, difficult wiring, and limited mounting options that extend commissioning time. With a 110 V AC 50 Hz / 110-120 V AC 60 Hz control coil and a 690 V main circuit rating, this four-pole contactor meets IEC/EN and UL/CSA standards for global deployments. Its compact 45 mm width and screw-terminal wiring simplify panel layouts, reduce wiring density, and improve serviceability. The AFC family also supports add-on auxiliary contact blocks and a broad accessory ecosystem, delivering long-term reliability and a lower total cost of ownership for modern automation projects.
Product Information
Extended Description
1SBL171101R8400 ABB: The AFC16-04-00-84 is a 4-pole (4 N.C) - 690 V IEC or 600 V UL contactor withScrew terminals, mainly controlling power circuits up to 30 A (IEC AC-1) or 30 A UL general use. Within the AF platform, AFC contactors offer an optimized operating time for AC controlled applications with electromagnetic coil (control voltage : 110 V AC 50 Hz / 110 ... 120 V AC 60 Hz). AFC contactors have a block type design and can be easily extended with add-on auxiliary contact blocks and a wide range of additionnal accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100219C0201 AFC contactors for AC control applications_Catalog PDF
Instructions and Manuals
Installation instructions AF(C)09...38(Z)(B) Contactors, NF(C)(Z)(B)22...80E Contactor relays and CA4, CAL4, CAT4, CC4, LDC4 Accessories
Instructions and Manuals (Part 2)
Contactors and Overload relays guide
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
45 mm
Product Net Depth / Length
77 mm
Product Net Height
86 mm
Product Net Weight
0.306 kg
Number of Main Contacts NO
0
Number of Main Contacts NC
4
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1
Rated Operational Voltage
Main Circuit 690 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 30 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 30 A | (690 V) 60 °C 30 A | (690 V) 70 °C 26 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 5.2 A | (440 V) 60 °C 5.7 A | (500 V) 60 °C 5.7 A | (690 V) 60 °C 5.1 A | (380 / 400 V) 60 °C 5.2 A | (220 / 230 / 240 V) 60 °C 4.9 A
Rated Operational Power AC-3 (Pe)
(415 V) 2.2 kW | (440 V) 3 kW | (500 V) 3 kW | (690 V) 4 kW | (380 / 400 V) 2.2 kW | (220 / 230 / 240 V) 1.1 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Maximum Electrical Switching Frequency
(AC-1) 600 cycles per hour
Maximum Mechanical Switching Frequency
3600 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 110 V | 60 Hz 110 ... 120 V
Coil Consumption
Average Holding Value 50 / 60 Hz 8 V·A | Average Pull-in Value 50 Hz 70 V·A | Average Pull-in Value 60 Hz 66 V·A
Power Loss
at Rated Operating Conditions AC-1 per Pole 1.2 W | at Rated Operating Conditions AC-3 per Pole 0.35 W
Operate Time
Between Coil De-energization and NC Contact Closing 9 ... 20 ms | Between Coil De-energization and NO Contact Opening 4 ... 18 ms | Between Coil Energization and NC Contact Opening 7 ... 21 ms | Between Coil Energization and NO Contact Closing 10 ... 26 ms
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)
2 x M4 screws placed diagonally
Connecting Capacity Main Circuit
Flexible with Ferrule 1/2x 0.75 ... 6 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 4 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Rigid 1/2x 1 ... 6 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm² | Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length
Control Circuit 10 mm | Main Circuit 10 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque
Control Circuit 1.2 N·m | Main Circuit 1.5 N·m
Terminal Type
Screw Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 30 A
Tightening Torque UL/CSA
Control Circuit 11 in·lb | Main Circuit 13 in·lb
Ambient Air Temperature
Close to Contactor for Storage -60 ... +80 °C | Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +60 °C | Near Contactor for Operation in Free Air (Uc) -40 ... 70 °C
Climatic Withstand
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible
Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27
Open, Shock Direction: B1 5 g | Shock Direction: A 30 g | Shock Direction: B1 20 g | Shock Direction: B2 15 g | Shock Direction: C1 25 g | Shock Direction: C2 25 g
Resistance to Vibrations
4g Closed Position & 2g Open position 5 ... 300 Hz
Pollution Degree
3
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
BV Certificate
BV Certificate AF(C)09...AF(C)38 3-pole and 4-pole contactors with screw and Push-in Spring terminals
CB Certificate
CB Certificate AFC09, AFC12, AFC16 3 or 4-pole contactors
CQC Certificate
CQC Certificate AF(C)09, AF(C)12, AF(C)16, AF09(Z)B, AF12(Z)B, AF16(Z)B 3 and 4-pole contactors, AFS09, AFS12, AFS16 safety contactors
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AF*09, AF*12, AF*16, Made in France
Declaration of Conformity - CE
EU Declaration of Conformity AFC09 ... AFC80 4-pole Contactors
Declaration of Conformity - UKCA
UK Declaration of Conformity AFC09 ... AFC80 4-pole Contactors
DNV Certificate
DNV Certificate AFC09...96 3-pole & AFC09...80 4-pole contactors with screw, push-in terminals
RINA Certificate
Rina Certificate for AFC09...AFC96 3 pole and 4 pole contactors, NFC relays ,screw and spring terminals
UL Certificate
UL-US Certificate of Compliance AFC09 ... AFC38 4-pole contactors | UL-CA Certificate of Compliance AFC09 ... AFC38 4-pole contactors
Package Level 1 Units
box 1 piece
Package Level 1 Width
87 mm
Package Level 1 Depth / Length
79 mm
Package Level 1 Height
47 mm
Package Level 1 Gross Weight
0.307 kg
Package Level 1 EAN
3471523021112
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature → Business Impact → Application: Four-pole NC main contacts provide robust power switching for AC-1 and AC-3 duty cycles, enabling dependable motor control in conveyors, pumps, and processing lines. This translates to consistent uptime and reduced downtime costs in manufacturing environments. Feature → Application: Coil voltage options of 110 V AC 50/60 Hz simplify control-system integration, enabling seamless interfacing with common PLC and automation relays without extra power supplies. Benefit: faster commissioning and fewer wiring errors in control cabinets. Feature → Application: Compact 45 mm width and 77 mm depth with screw terminals support dense panel layouts and secure connections, improving reliability in tight DIN rail enclosures. Benefit: easier installation, maintenance, and serviceability. Feature → Application: TH35 DIN-rail mounting (TH35-15 or TH35-7.5) and modular AF accessories enable scalable control architectures for future expansion. Benefit: reduced upfront cost and streamlined retrofits. Feature → Application: Compliance to IEC/EN 60947-1, IEC/EN 60947-4-1, UL/CSA standards ensures worldwide approvals for global production lines. Benefit: global deployment with minimized certification risk. Feature → Application: Addition of auxiliary contact blocks and a wide accessory range supports interlocking, signaling, and safety circuits. Benefit: enhanced control logic without replacing hardware.
Get a Quick Quote for a ABB 1SBL171101R8400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SBL171101R8400?
Enquire Now
FAQs
The AFC16-04-00-84 is designed for DIN rail mounting with TH35-15 or TH35-7.5 profiles, ensuring fast, secure installation in standard control cabinets. It can also be combined with accessory blocks for expanded control circuits, making it adaptable for compact panel layouts and scalable automation projects.
The device uses a control coil rated at 110 V AC with 50 Hz operation or 110–120 V AC at 60 Hz. This compatibility supports common control systems and reduces the need for additional power conversion, simplifying integration with PLCs and control relays.
This is a four-pole contactor with four NC main contacts. The main circuit is rated up to 690 V, with IEC AC-1 current rating of 30 A at 40 °C, and AC-3 current ratings around 5 A depending on voltage. It is intended for controlling power circuits in machine and drive applications.
The AFC16 series complies with IEC/EN 60947-1 and 60947-4-1, UL 60947-1 and 60947-4-1, and can be found with CSA and CE markings. These certifications support global deployments and help streamline regulatory approvals for equipment used in diverse markets.
Ensure torque settings meet 1.5 N·m for main terminals and 1.2 N·m for control circuit terminals. Use appropriate wire sizes and ferrules (main 1/2 x 0.75–6 mm², control 1/2 x 0.75–2.5 mm²) and keep terminals clean and dry. Regularly inspect screw connections and replace worn auxiliary blocks only as needed to maintain reliability.
